Anhang| Integration into TIA Portal

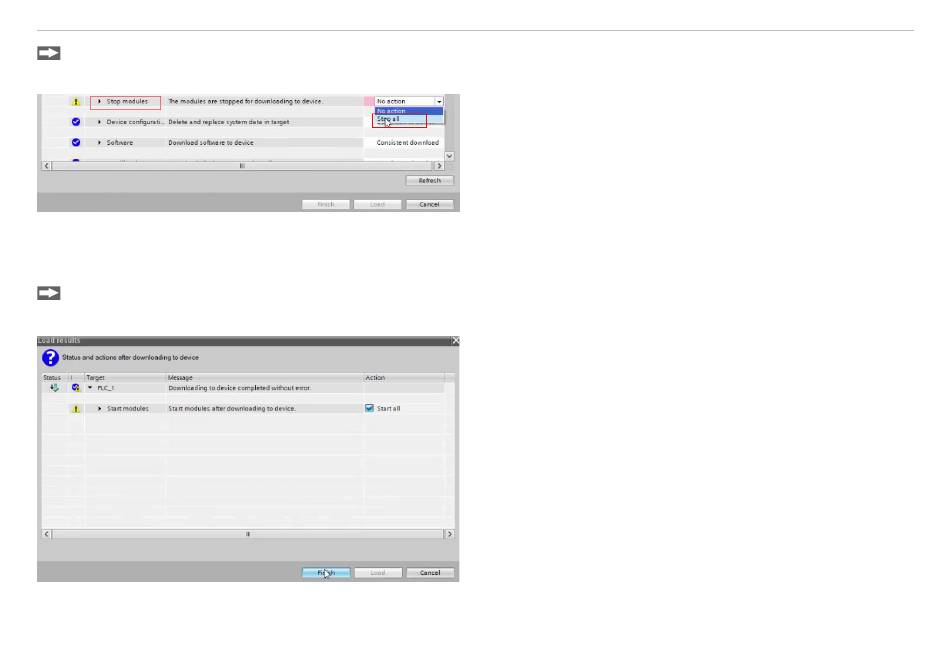

Select the Stop all option under Stop modules.
The device configuration can only be loaded when the CPU is in the operating state STOP .
i
Depending on whether you created a new project or opened an existing one, it might be necessary to overwrite the so-called
additional information. The latter is recommended to ensure an up-to-date data pool. This can be done by scrolling downwards
within the same dialog and checking the Replace all box at Device configuration.
Click the Load button. The PLC is thereby introduced to its environment for the first time. The loading process is indicated visu-
ally by a red flashing LED of the S7 device.
If no error occurs, the S7 changes to the operating state RUN which is indicated by the green RUN-LED.
combiSENSOR KSB6430 PROFINET
The results of the loading process are displayed in the following
Dialog box. If the process was completed successful, start your
S7. Activate the Start all checkbox, if necessary, and click the
Finish button.
