Sequence when Writing Structured Data

WRREC_DB
REQ := 1 0
ID := 273
INDEX := 0x2038
LEN := 9
8Byte + Data Length
RECORD :=
DONE =>
BUSY =>
Status/Result Output
ERROR =>
STATUS =>

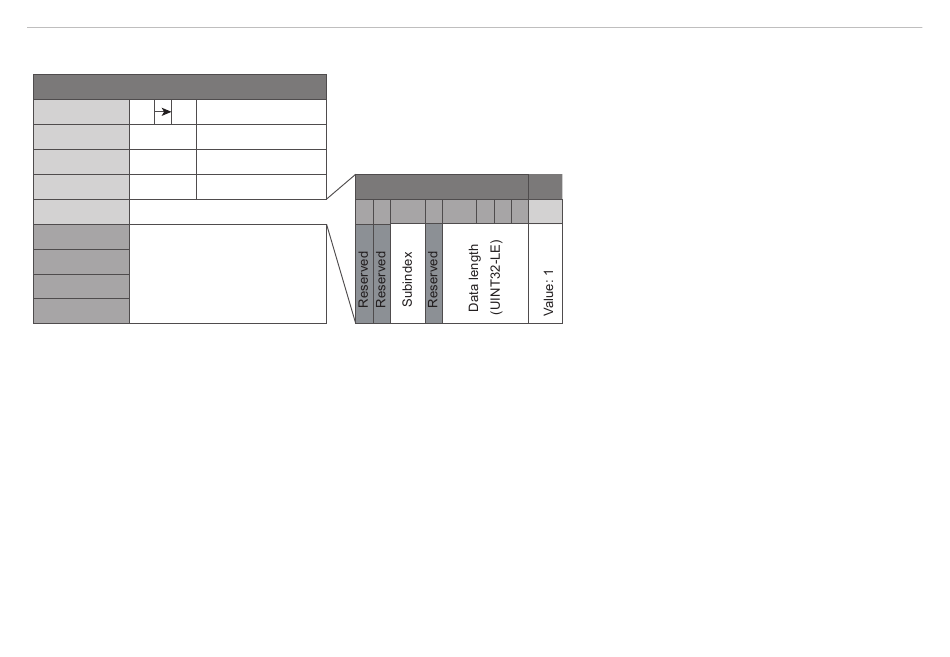

Fig. 19 Write command with data from PLC to capaNCDT 6430
combiSENSOR KSB6430 PROFINET
Enable-Flag
HW-ID
Objekt Index
Write-Header (8 Byte)
0 0 0x01 0 0x01 0 0 0
0x01
