Anhang| Integration into TIA Portal

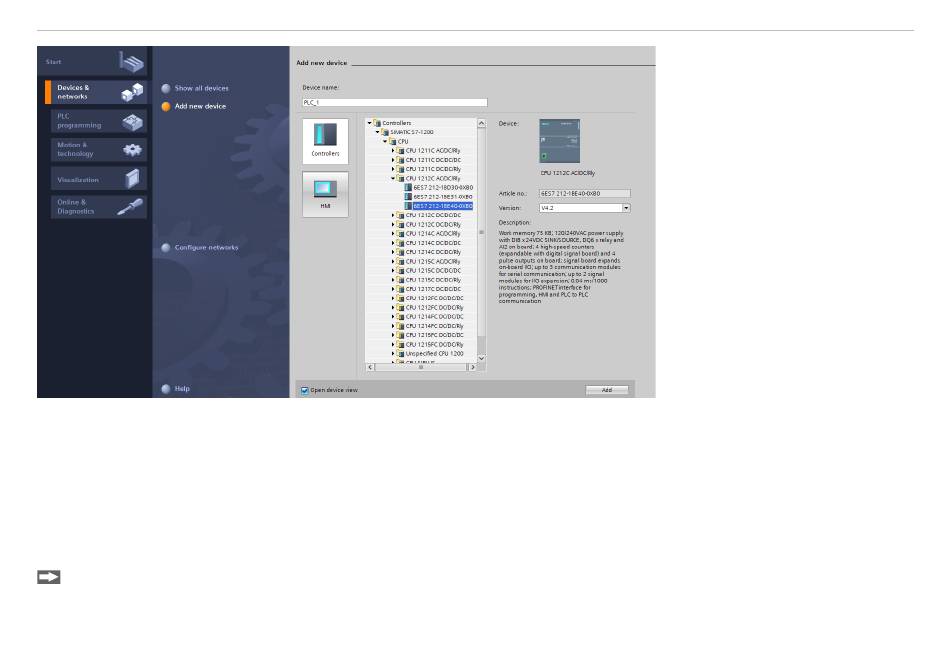

The software switches automatically to the Project view and displays the Working window (center of screen) in the Device
view. Below, you can find the Inspection window which shows the parameterization options of the selected PLC in the Proper-
ties register.
i
The TIA Portal automatically assigns the IP address and subnet mask. You can manually adjust these data here (General >
PROFINET interface > Ethernet addresses) if necessary and save them by clicking the Save project button, see
top left corner in the Toolbar.
The GSDML file contains information about a PROFINET device. This file is needed for the PROFINET controller and must be integrat-
ed into the corresponding configuration software. You get the GSDML file from Micro-Epsilon.
Import the GSDML file. To do so, in the Extras > Manage device description files (DDF) menu, select the path for the file <GSD-
ML-V2.43-MICRO-EPSILON-KSB6430PNET-20231201.xml>.
