B)
Dispenser
1 - Power connection for the Dispenser- Metal plate - :

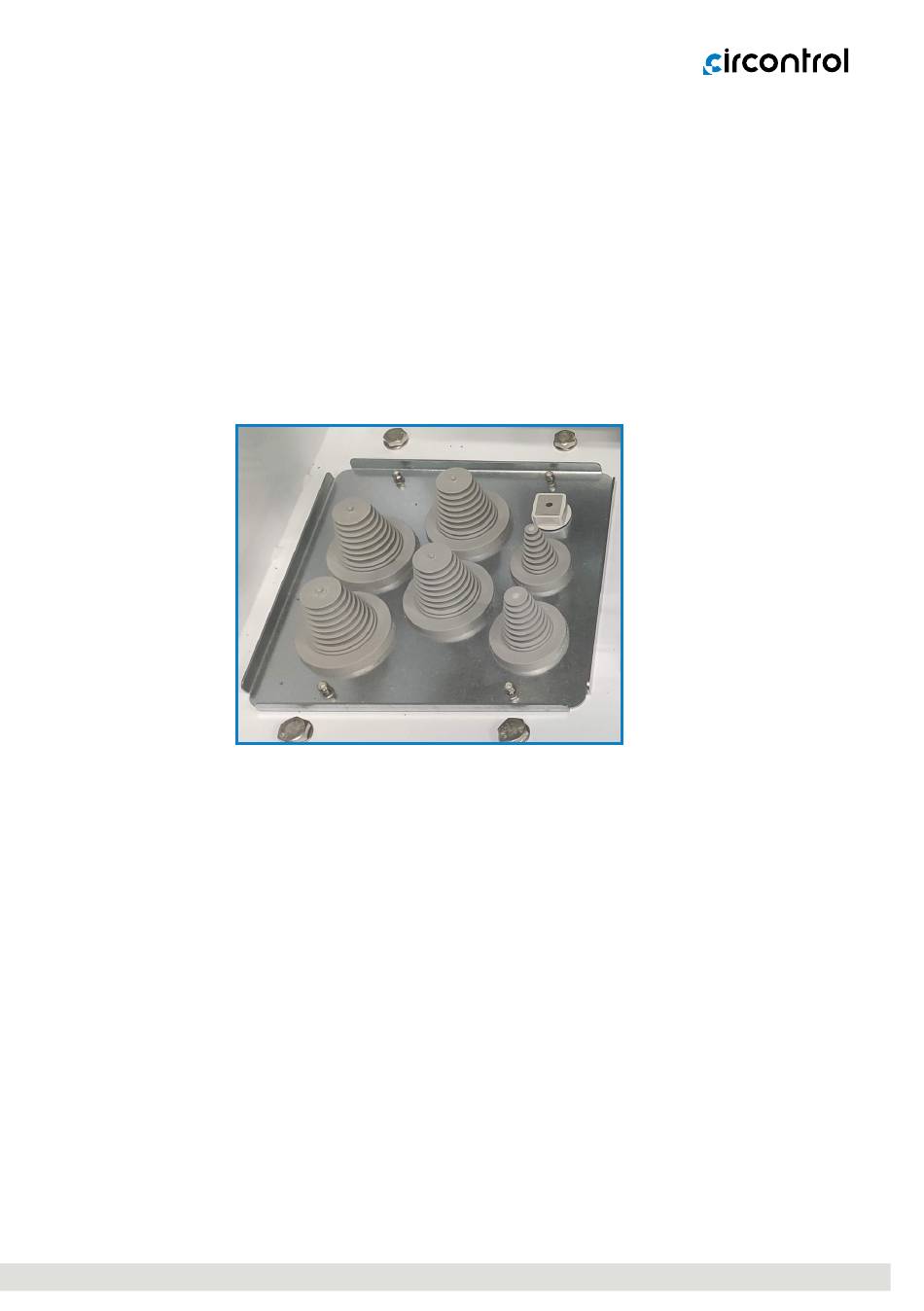

In order to make a secure cable installation is necessary to use the metal plate provided.
In case of not using this metal plate and any damage to internal components arises
due to the entry of dirt, animals or any other external element, Circontrol will reject the
warranty of the unit.
Steps:
1- Locate the power input entrance in the Charge Point mid left part.
2- Cut the multi-range cable grommets in pyramid shape in accordance with the
cable diameter that should entry through it.
Note: In case of more than one single cable in each cable grommet, to ensure IP
protection enclosure rating, it is needed to use foam insulation or another similar
material.
