C O N C R E T E B A S E M E N T F O R P O W E R U N I T
Before fixing the template inside of the concrete
basement make sure front mark must face with the
front side of the Charge Point.
• Once the kit is assembled, it must be placed in the ground. If the Power Unit has to
be installed outside and there is no limitation of depth, is recommended to make
a concrete base.

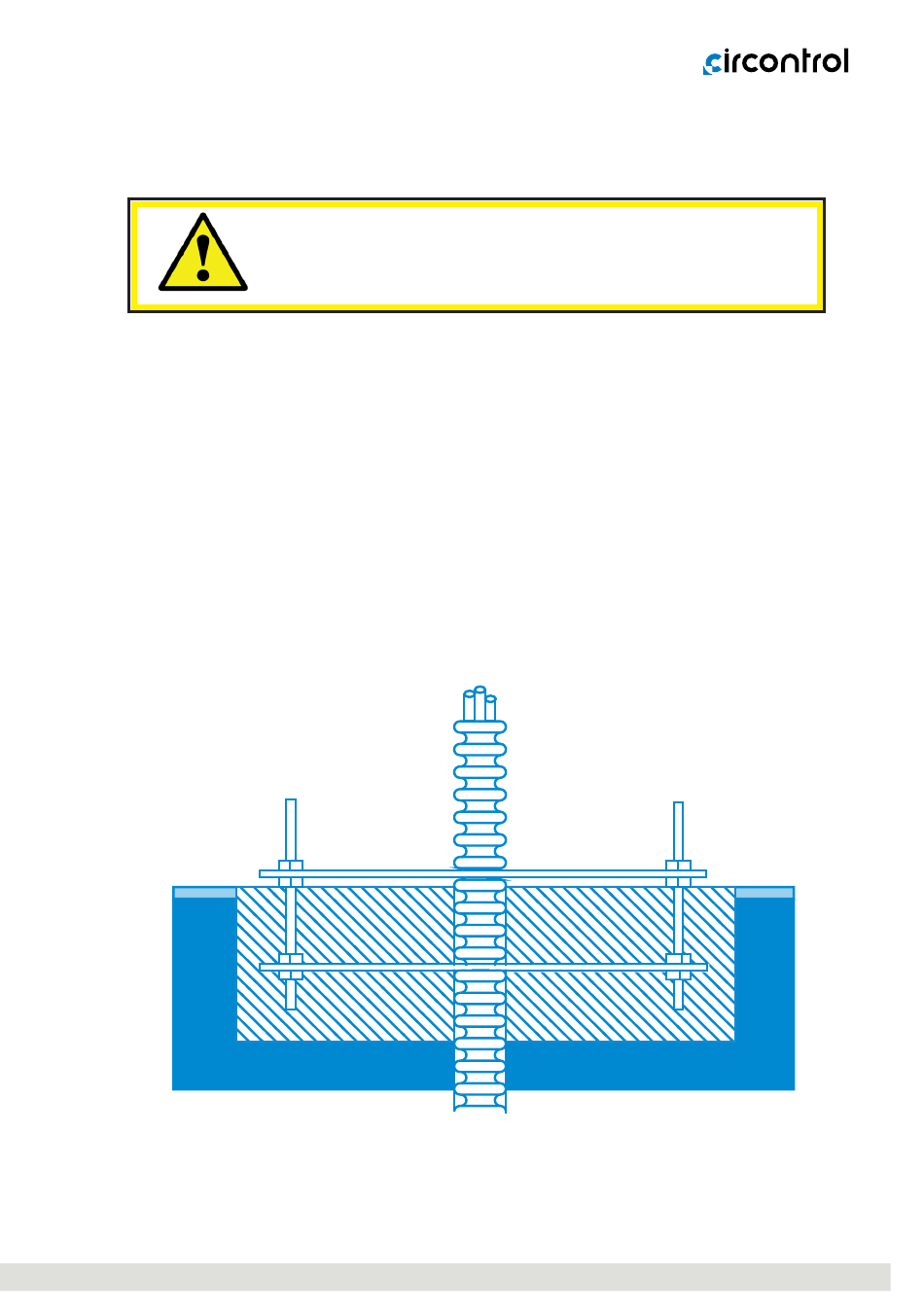

• The concrete base shall provide the passage of power cables, it must be done by
corrugated tube placed inside the foundation through the mounting template, as
it can be seen below.
• Take into account that the supply of the Power Unit comes from the front door. The
wiring that connects the Power Unit with the Dispenser can be accessed from the
rear door. Keep this in mind when installing the metal plate.
