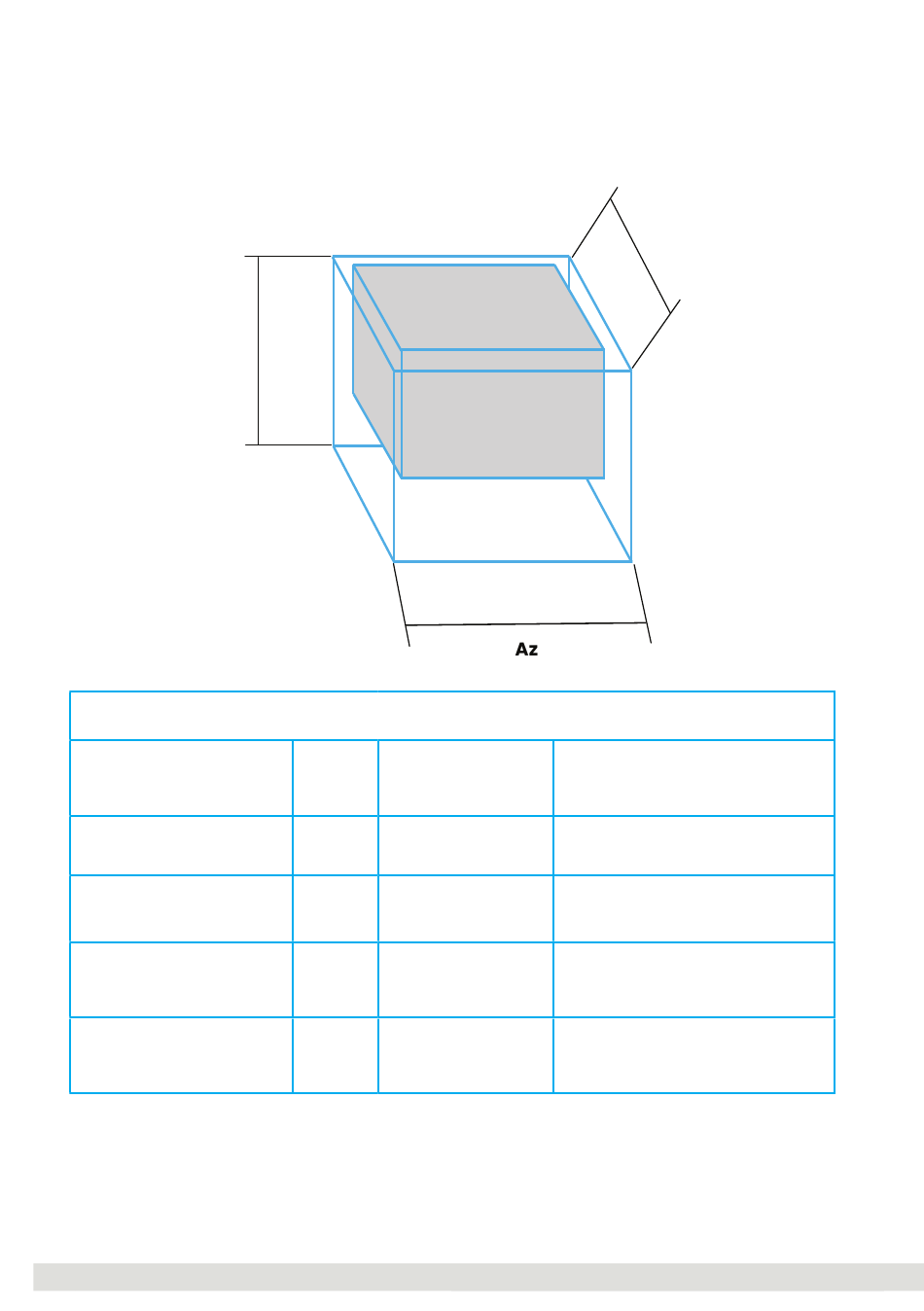

DISPENSER FOUNDATION MEASUREMENTS
Hz
ORIENTATIONAL FOUNDATIONS FOR RAPTION HPC DISPENSER
TYPE OF TERRAIN
SOFT
COMPACT
VERY COMPACT
VERY COMPACT AND CONCRETE
SLAB
Note:
The figures in this table are for reference use only. The mechanical caracteristics
of the soil (Ck) and the final dimensioning of the concrete base must be performed by
qualified personnel and in compliance with the local regulations of civil engineering works.
29
Ck FOUNDATION SIZE
(kg/cm ) (Az x Bz x Hz) cm
2
5 85 x 70 x 60
12 80 x 65 x 50
20 80 x 60 x 45
20 80 x 60 x 45
CIRCONTROL — Raption HPC Installation Manual
Bz
COMMENTS
For example vegetal not compact terrain
For example mix vegetable land with
engraved compactors
For example mix sand ground with very
compacted and paved gravel asphalt
Minimum slab edge 10cm of concrete
HM - 100
