3 - Power input connection for the Power Unit
- Connecting power supply cables - :
Step 1
Step 3

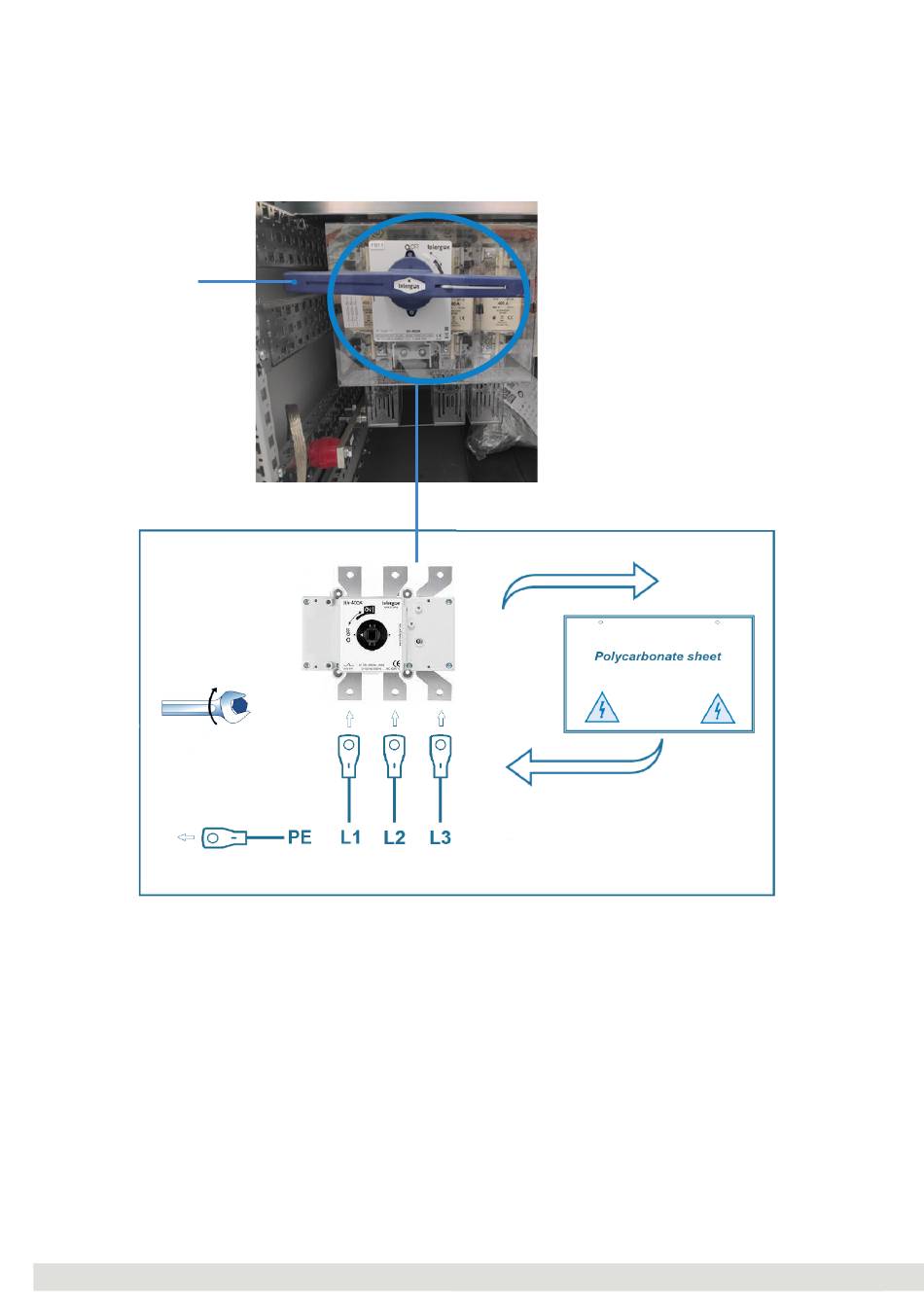

Steps:
1- Remove the changeover switch handle.
2- Remove the polycarbonate sheet protection over the circuit breaker.
3- Use the M10 screw and washer provided in order to connect the electric terminals.
4- Use a M10 metallic electric terminal aligned with the required cable cross section
according with the power of the Charge Point.
5- After connecting the power supply, place the polycarbonate sheet protection over
the circuit breaker.
