D)
Fixing
The purpose of this chapter is the technical definition and basic requirements for
implementing the base and fixing the Charge Point.
• The unit is adequate for indoor and outdoor installation
• It is shown two different options to install the Charge Point: using the provided
foundation kit or using a non included injection mortar.

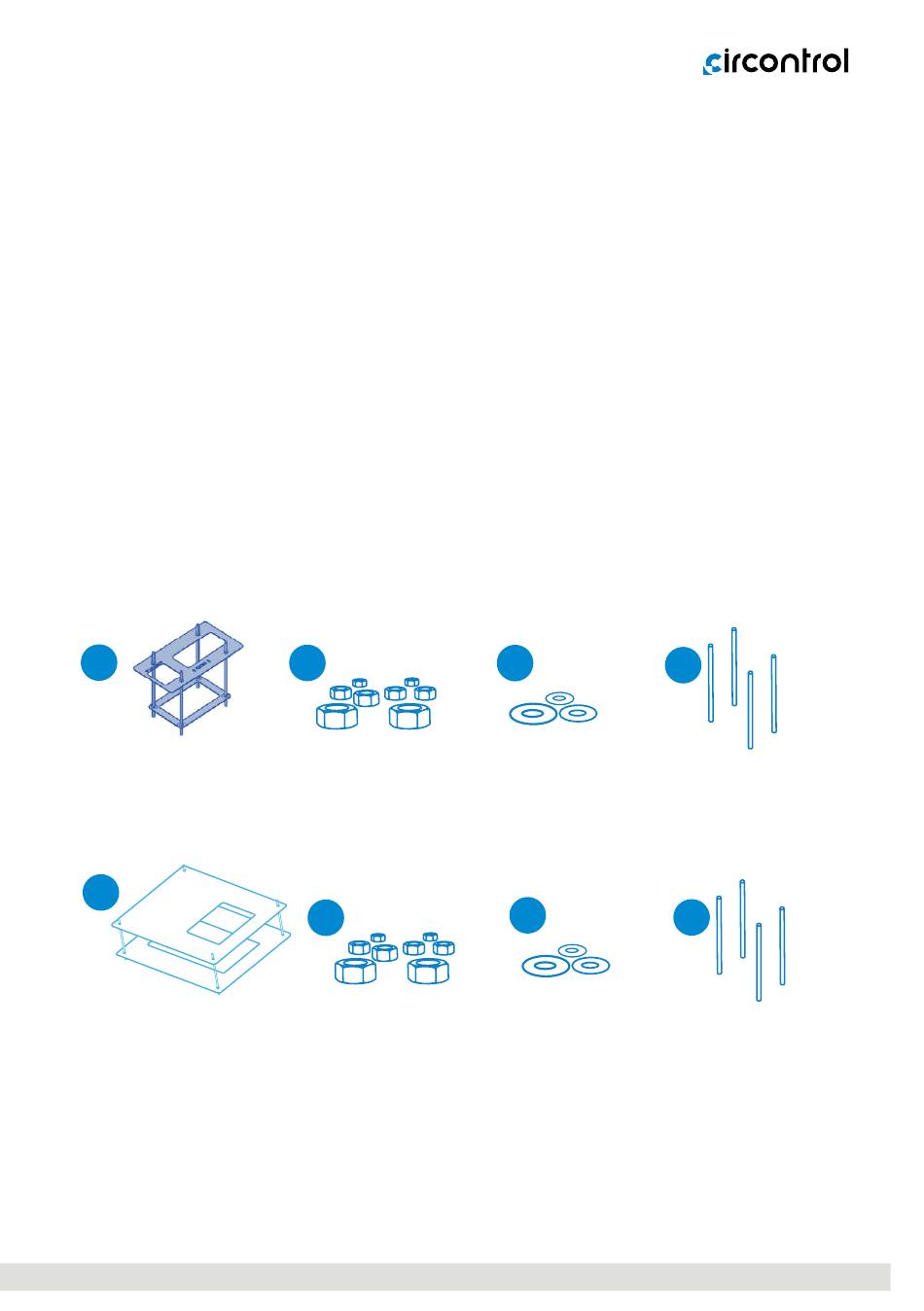

1 — F O U N D A T I O N K I T
A foundation kit with a mounting template is provided to ensure the distances
between the foundation bolts.
1x
Template for
Dispenser
1x
Template for
Power Unit
16x
Nuts M16
16x
Nuts M12
4x
4x
Washers M16
4x
Washers M12
Foundation rod
435 mm x M16
4x
Foundation rod
435 mm x M12
