2 — I N J E C T I O N M O R T A R
In specific cases where it is not necessary to dig a trench to install the power cables,
it is possible to install an alternative fixing method instead of the foundation kit
provided.

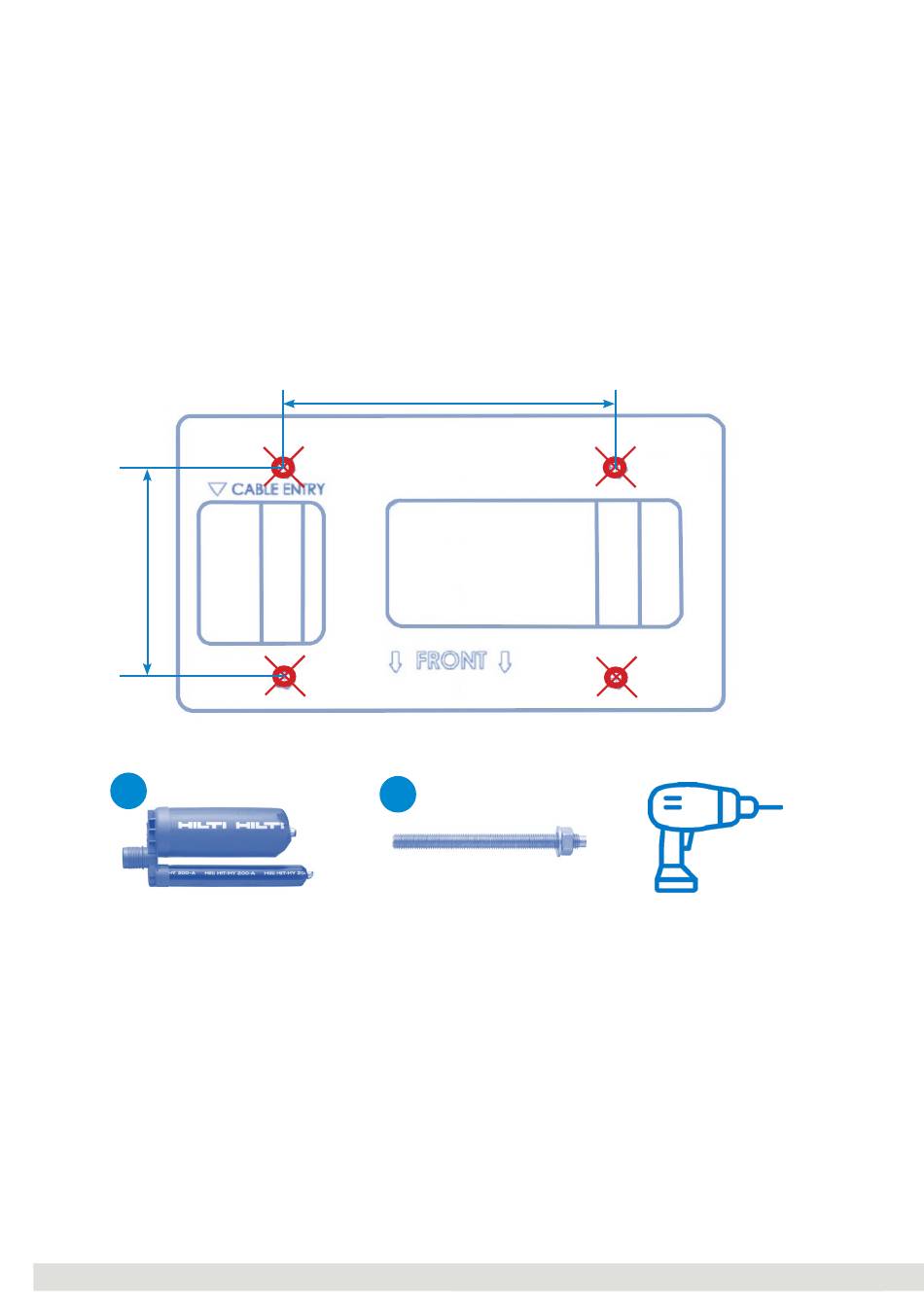

As a reference, it is possible to use the foundation kit template in order to locate
where to install the injection mortar (in the picture below indicated in red colour).
TEMPLATE FOR DISPENSER
250
What's needed:
4x
Injection resin
Hilti HIT-HY 200-A
Installation advice:
• Base material: C16/20 concrete, fc=16N/mm
• Minimum thickness of base material: 166 mm
• Hole diameter in base material: 18 mm
• Drilling depth: 130 mm
• Installation tightening torque: 80 Nm
37
395
4x
Anchor rod
Hilti HAS-U-A4 M16
, h=200 mm
2
CIRCONTROL — Raption HPC Installation Manual
Units specified in millimetres
Hammer driller
