14.3

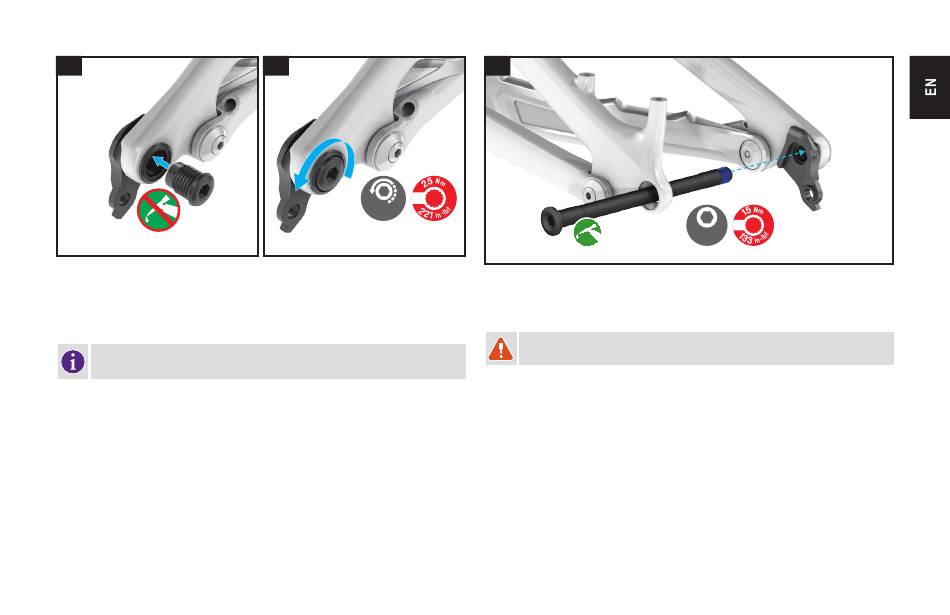

Fig. 14.3
Install the UDH washer, then thread the UDH bolt through the washer and into the hanger.
Fig. 14.4
Tighten the bolt to 25 Nm / 221 in-lbf. The UDH hanger bolt is left-hand threaded.
A reversible (left-hand and right-hand thread) torque wrench MUST be used to
ensure proper left-hand thread bolt torque.
14.4
8
MM
14.5
Fig. 14.5
Apply grease to the thru-axle threads before axle installation.
Install the thru-axle and wheel, then torque the rear axle to 15 Nm / 133 in-lbf.
WARNING! Regularly check and confirm the UDH hanger is tight and has not
moved before and after riding the bicycle.
6
MM
48
