10 .4. O PERAT ING INST RUCT IONS
1 0 .4.1. C H A RGI N G T H E BATTERY
The Levo battery can be charged with the battery installed in or removed from the bicycle.
Refer to section 10.3 for instructions regarding removing and installing the battery.
CAUTION: Make sure your charger is rated appropriate for the voltage output
in your area. Check the charger label for more information. Connecting the
charger to an outlet that has too much or too little output may damage it.
WARNING! When charging your battery, always make sure the charger cord
is fully inserted into the charger and the plug is fully inserted into the outlet.
A loose connection can potentially start a fire.
WARNING! When charging the battery, pay attention to and follow the
charging temperature range specified in the technical data section of this
user manual for the battery and the charger user manual for the charger.
Note the range may be different for the battery and the charger.
CHARGING BATERY IN THE FRAME
Power off the bicycle on the TCU or MasterMind TCU.
„
Plug the charger's plug into an outlet, using the appropriate plug for the country's
„
standards. Do not plug the charger into an extension cord.
10.3
2
1
10.4

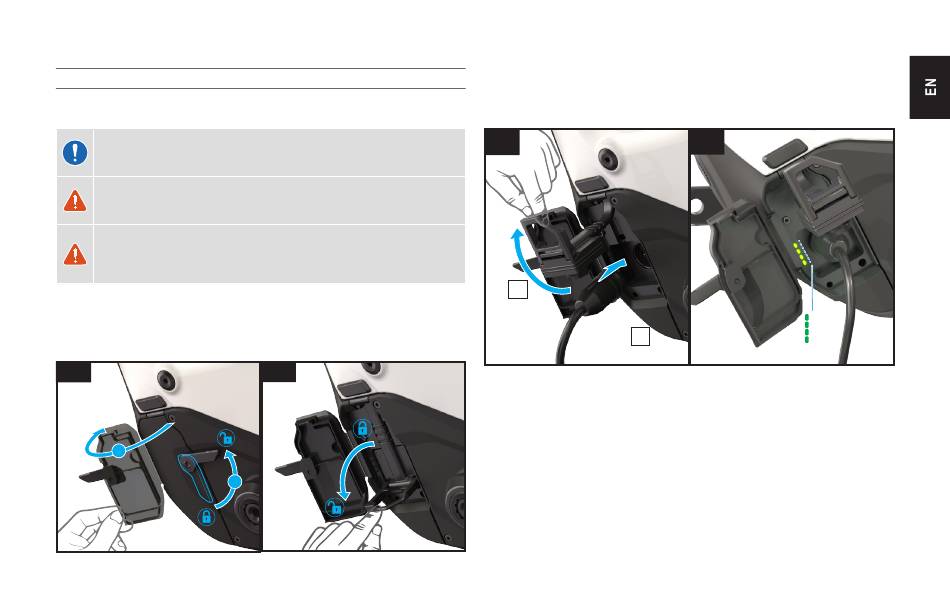

Fig. 10.3
Open the charge port door on the non-drive side of the battery.
„
Fig. 10.4
Rotate the lever on the plug 90° and remove the plug from the battery.
„
10.5
A
B
Fig. 10.5
Move the main harness out of the way (A) and insert the charging plug into the charge port (B).
„
Fig. 10.6
When successfully connected, the four green LED lights next to the charging socket will
„
turn on and indicate the level of charge in the battery. The charge level is measured in 25%
increments.
When charging is complete, disconnect the charging plug from the battery charging socket
„
and unplug the charger from the outlet.
Re-insert the main harness plug into the port and rotate the lever back to the closed
„
position then close the charge port door to seal it against water and debris (Fig. 10.1).
10.6
75 - 100 %
50 - 74 %
25- 49 %
0 - 24 %
