Reinstall the flip chips in the desired high or low position. Make sure they are fully seated
and aligned with the chainstay protector before inserting the bolt.
Insert the pivot bolt (A), then torque the bolt to 10 Nm / 90 in-lbf.
WARNING! The drive side and non-drive side Horst flip chips must both be
aligned in the same high or low position. Improperly installed Horst flip chips
can damage the frame and can also cause you to lose control and fall.
All models are assembled with the flip chip in the high position. Switching to
the low position lowers the bottom bracket height by approximately 7 mm and
slackens the head tube angle by approximately 0.5 degrees.
12 . 2 . A DJ U ST I N G T HE HEAD TUB E A N GLE
12.2
A
0°
Fig. 12.2

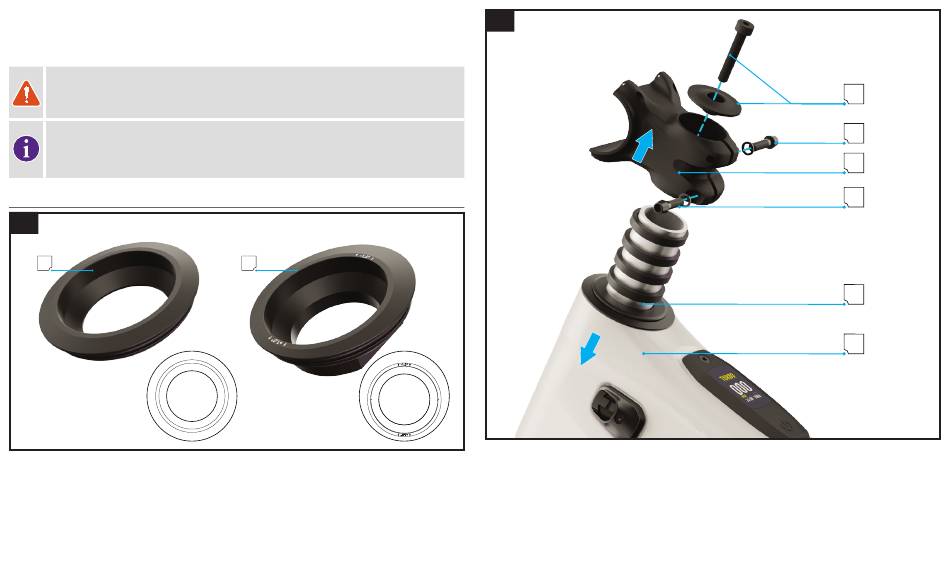

The head-tube angle is adjustable via adjustable headset cups. The bicycle ships with the
"zero" offset cup (A) and a +/- 1-degree headset cup (B) ships in the small parts box.
43
-1°
B
+1°
+/-1°
12.3
FORK
Fig. 12.3
Loosen the stem bolts that attach the stem to the fork steerer (A).
Loosen and remove the top cap bolt (B).
Remove the stem (C) from the fork steerer tube (D) and remove the fork from the frame (E).
Choose the headset cup and position (Fig. 12.2) for the rider's desired geo.
B
A
C
A
D
E
