10 . 3 . BAT T E RY I NSTAL LAT I ON I NSTRU CTIONS
1 0 . 3 .1. RE M OV I N G T H E BATT ERY
CAUTION: Installation or removal of the battery should be done with
the bicycle on a repair stand so the battery can slide out at the bottom.
Alternatively, if a repair stand is not available, the bicycle can be carefully
placed on its side or turned upside down. If placed on its side, the bicycle
should be on even ground and leaned towards the non-drive side. Due to its
increased weight, turning the bicycle upside down may require more effort
than with a regular bicycle. Be careful not to damage any components when
turning the bicycle over, place it on soft ground or protective material.
Power off the bicycle on the TCU or MasterMind TCU.

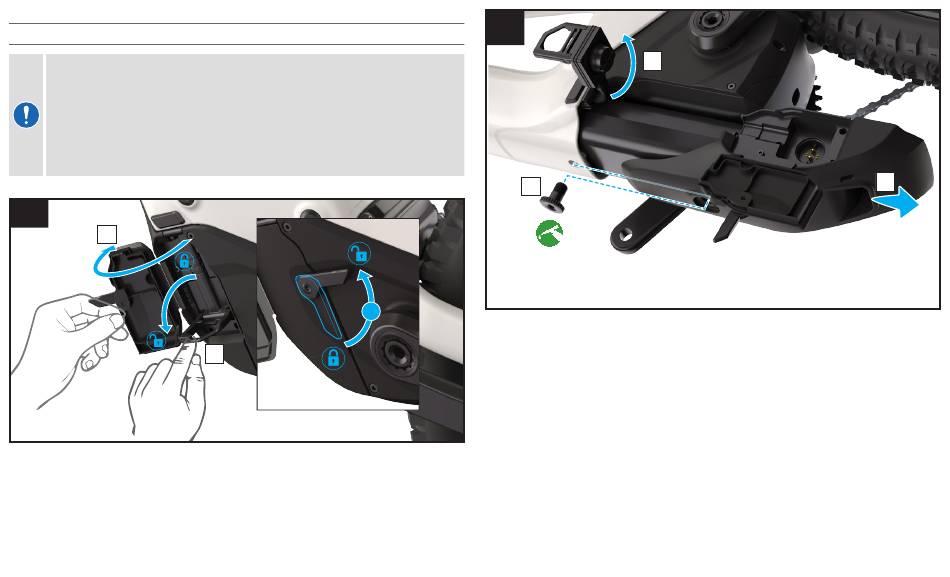

10.1
A
Fig. 10.1
Open the charge port door on the non-drive side of the battery (A).
Rotate the lever
on the plug 90° and
29
1
B
remove the plug from the battery (B).
10.2
B
A
Fig. 10.2
Loosen the battery mounting screw in the rock guard using a 6 mm hex key, then remove
the bolt from the down tube (A).
Move the main harness out of the way before removing the battery to avoid damaging the
plug (B).
Grab the battery by the pull handle (C) on the rock guard and slide the battery from the
frame. Be careful not to drop the battery as this may damage the battery.
Reverse the steps to re-install the battery. First, lightly grease and insert the bolt using a
6 mm hex key, then torque to 6.2 Nm / 55 in-lbf.
C
