8 . 5 . RE MOT E FUN CT IO NS ( TCU)
8.6

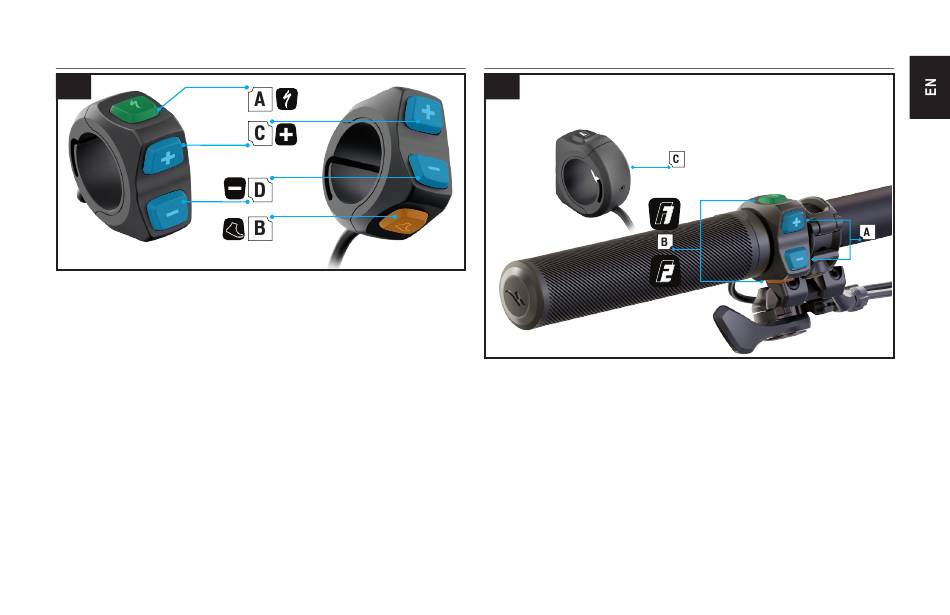

Fig. 8.6
A - TURBO BUTTON:
„
• Automatically changes to TURBO mode regardless of the mode the bicycle is in.
B - WALK-ASSIST BUTTON:
„
• Pressing and holding activates the walk-assist mode. This provides motor assist at 6
km/h / 3.7 mph to help push the bicycle uphill when walking.
C - (+) BUTTON:
„
• Short press increases the amount of support.
D - (-) BUTTON:
„
• Short press decreases the amount of support.
8.6. H A NDLE BA R REM OT E (M A ST ER M I ND TCU )
8.7
Fig. 8.7
The MasterMind TCU handlebar remote is included on some Levo models and controls the
level of motor support and controls the functions and scrolling of the MasterMind TCU.
A: (+)(-) Support adjustment buttons (Scrolling and setting up of the MasterMind TCU).
„
B: Function Buttons F1 and F2 (Scrolling and setting up of the MasterMind TCU). Pressing
„
and holding the F2 button activates the walk-assist mode.
C: Compression Screw (2 mm Hex key at 0.8 Nm / 7 in-lbf).
„
