CAUTION: Always fully close the charge port door after charging and during
riding.
10.7
A
110 V / 220 V
Fig. 10.7

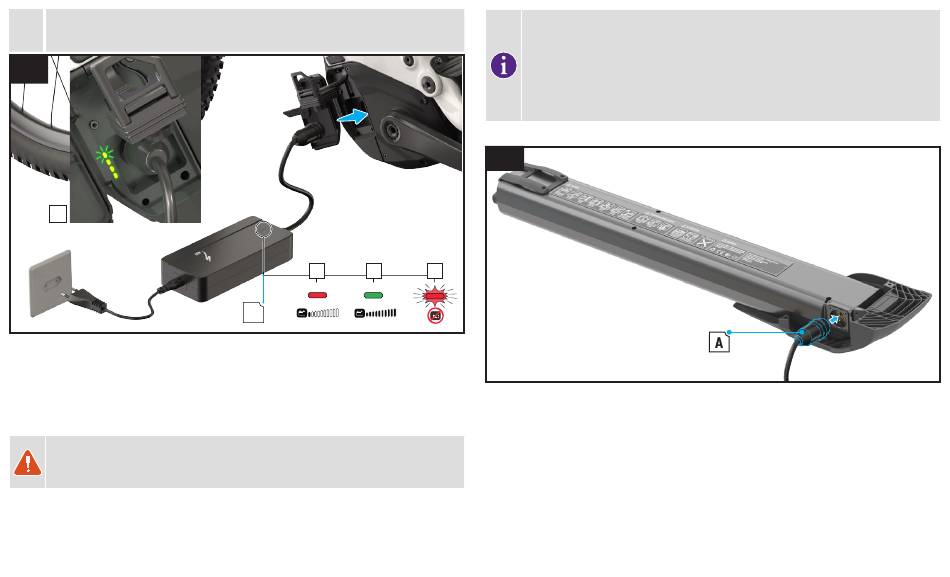

Once the battery is charging, you will see visual cues on the LED lights next to the charging
„
socket, indicating the charging status (A).
During the charging process, the diode (B) on the charger will glow red (1). When the
„
battery is fully charged, the diode on the charger will turn green (2).
WARNING! If the diode on the charger flashes red (3), a charging error has
occurred. Immediately remove the charger from the charging socket and
outlet and contact your Authorized Specialized Retailer.
31
1 2
B
Please note that Li-ion batteries gradually lose capacity depending on age and
use. Strongly reduced operating time after fully charging can be a sign that the
battery is reaching the end of its useful life and has to be replaced. Provided
the bicycle has been used properly, approximately 75% of the battery's original
capacity should remain after 300 charging cycles or two years. Replacement
batteries can be purchased from your Authorized Specialized Retailer.
CHARGING THE BATTERY OUTSIDE THE FRAME
10.8
3
Fig. 10.8
Power off the bicycle on the MasterMind TCU.
„
Follow the steps outlined in Section 10.3.1 in this User Manual to remove the battery.
„
Place the battery on a clean, dry surface.
„
Plug the charger plug into an outlet using the appropriate plug for the country's standards.
„
Insert the charger plug into the socket. The magnet connector will help the plug locate into
„
the socket (A).
