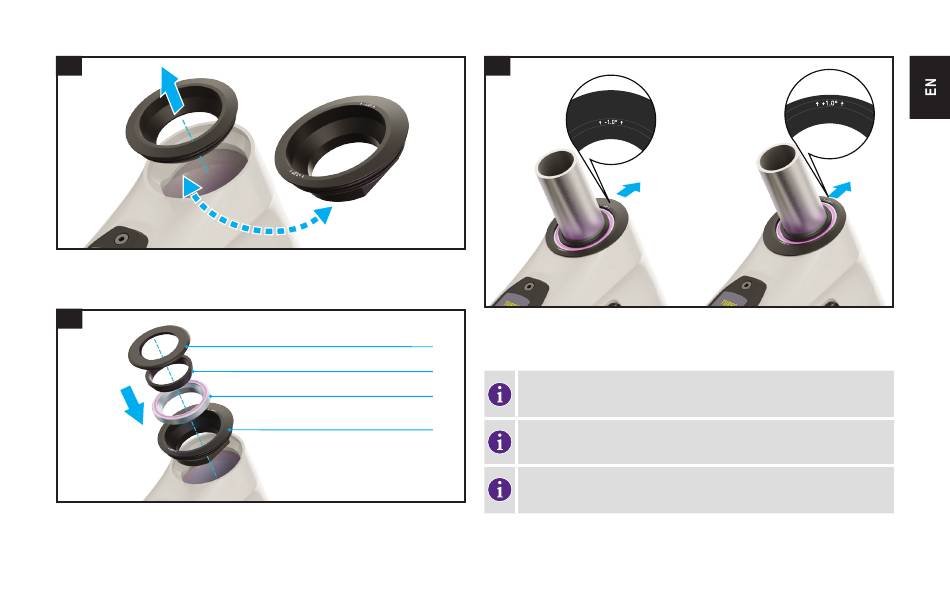

12.4
Fig. 12.4
Remove the zero offset cup from the head tube and replace it with the +/- 1-degree headset
cup.
12.5
Fig. 12.5
Install the headset parts, bearings, and cups into the frame. No tools are required.
12.6
Fig. 12.6
When aligning the headset cup, the etching that is at the front of the bicycle indicates
HEADSET COVER
which setting you are in.
COMPRESSION RING
UPPER BEARING
ADJUSTABLE HEADSET CUP
-1°
Make sure the head tube and headset cup are free of dirt and debris when
changing the upper cup angle. Lubricate all the parts with high-quality
waterproof grease.
All models are assembled with the zero offset headset cup. Switching the
headset cup steepens or slackens the head tube angle by +/-1 degree.
The bottom headset cup is used for all options of adjustability, the cup has
a spherical interface with the head tube and will move with the angle of the
steerer tube.
+1°
44
