Principles Of Operation - WaterLogic WL3FW FIREWALL Manual

The WL3FW is a pressure fed machine that utilizes mains supply to push water through the unit to the
faucet. The WL3FW can provide Cold, Ambient, Sparkling, Hot and Extra Hot water with a modern
touch-to-dispense interface. The WL3FW has a single cold tank (4 Litre free standing and 2 Litre mini)
and high efficiency cooling system. Filtration can be customized to meet your specific water conditions.
The patented Firewall purification system purifies the ambient and cold water before it is dispensed
while providing a sanitary faucet and preventing outside contamination back into the water circuits.
Our advanced UV sensor measures the dose of UV through the water stream to guarantee the safety of
the water. The Firewall purification system will not allow unsafe water dispense and alarms the user if
the system is inactive.
Factory Default Settings shown in bold:
•
Cold Temp Set = 5
•
Hot Temp Set = 87
provide precise accuracy and extend life of the hot tank control system.
•
Extra Hot Temp Set
WL3 FW Manual
WL3 FW PRINCIPLES OF OPERATION
WL3FW SETTING
o
C (41 F) –Do not adjust to avoid freezing risk.
o
C (189 F) – Not Adjustable. Advanced thermistor technology used to
o o
= 95 C (203 F) – Not Adjustable.
Energy Saver Mode (Heater Sleep)
Unit comes set with energy saver or heater sleep
mode enabled (SL). Heater will be disabled after 3
hours of machine inactivity (no icons selected).

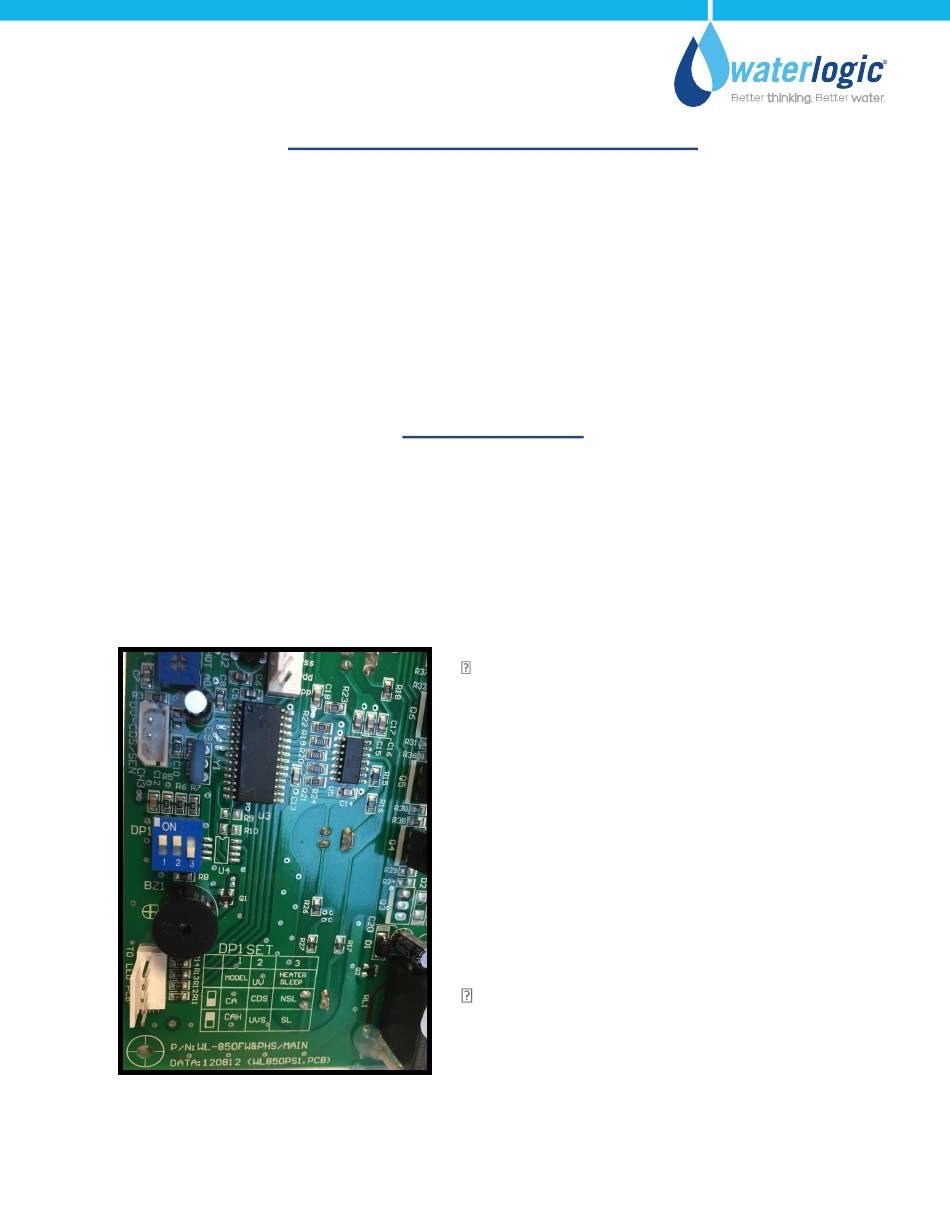

Turn Energy Saver off by moving dip switch 3 (DP1)
located on front printed circuit board (PCB) to the
NSL (no sleep) position.
Cold, Ambient, Hot (CAH) or Cold, Ambient (CA)
WL3FW hot water function can be disabled and the
unit converted from a Cold, Ambient, Hot, Extra-
Hot (CHA) to a Cold and Ambient (CA) only by
moving dip switch 1 (DP1) located on front printed
circuit board (PCB) to CA position.
UV Sensor Setting CDS or UVS
Set to UV Sensor for UV function. Do not change
factory setting. Dip switch 2 on DP1 sets between
CDS and UVS.
Page 29 - Revision: EU 17-09-2020
