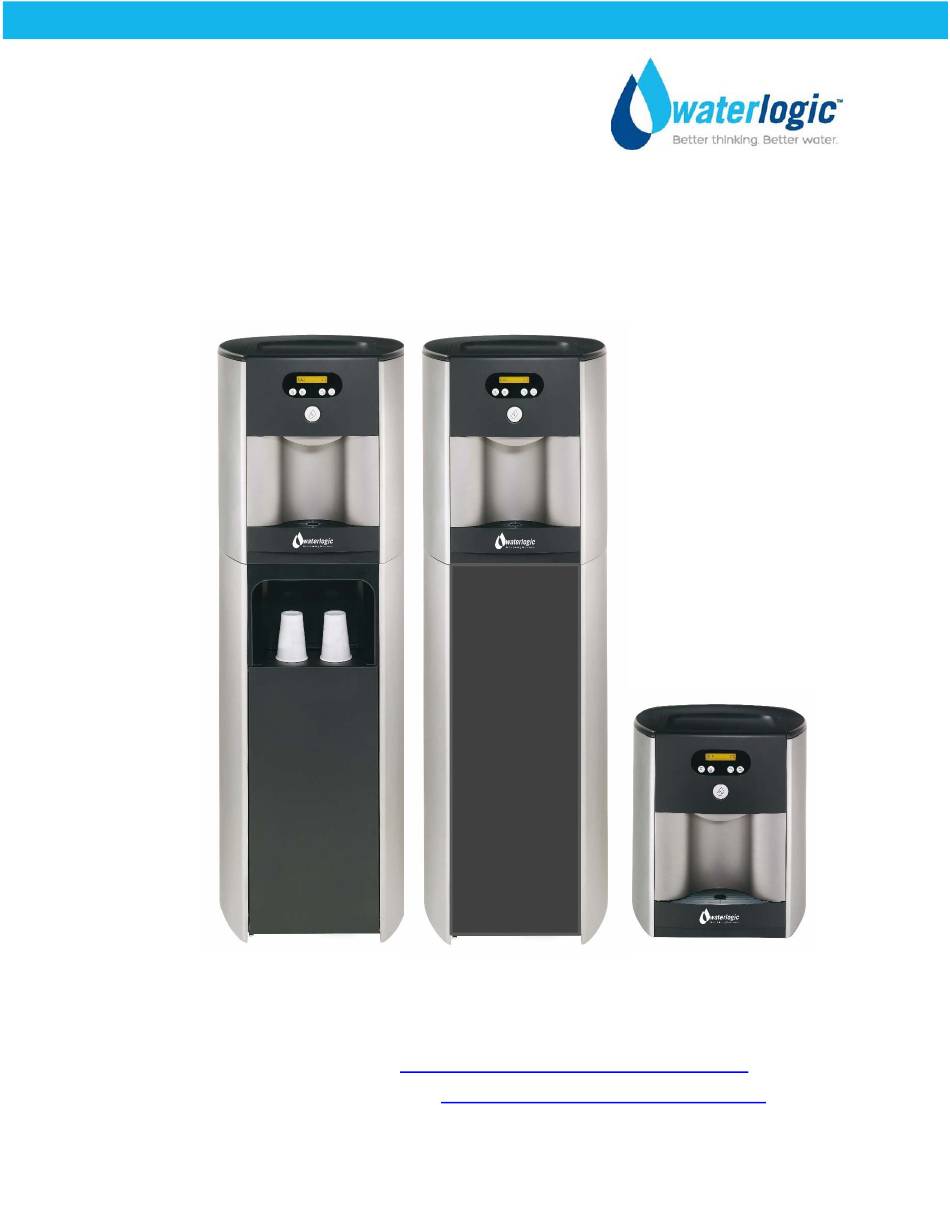

WL500 – Sparkling
MANUAL










Waterlogic Commercial Products, LLC
11710 Stonegate Circle
Omaha, NE 68164
(800) 288-1891
www.waterlogicdealers.com
Tech Portal Website:
techportal.waterlogic.com
Waterlogic International, LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN,
United Kingdom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WaterLogic WL500

  • Page 1                   Waterlogic Commercial Products, LLC 11710 Stonegate Circle Omaha, NE 68164 (800) 288-1891 www.waterlogicdealers.com Tech Portal Website: techportal.waterlogic.com Waterlogic International, LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN, United Kingdom...
  • Page 2 WL500 MANUAL    Congratulations on your choice of the Waterlogic WL500 Water Treatment System.  The WL500 Water  Treatment System is a fully programmable self‐contained model that dispenses cold, hot, extra‐hot, and  premium sparkling water.  Every WL500 Water Treatment System includes:      High Performance Multi‐Stage Filtration      Bio‐Cote® Anti‐Microbial Protection      Advanced In‐Tank Ultraviolet (UV) Purification       The Waterlogic WL500 Water Treatment System provides exceptional quality and great tasting water  with every use.       INTRODUCTION    Carefully read and follow all instructions to ensure proper and efficient operation of your WL500 Water  Treatment System.  Contact Waterlogic or an Authorized Waterlogic Dealer if you have any questions.    Waterlogic and Authorized Waterlogic Dealers employ trained service personnel who are experienced  in the installation, function and repair of Waterlogic equipment.  This publication is written for use by  these qualified individuals.  Waterlogic encourages users to learn about products, however, we believe  that product knowledge and service is best obtained by consulting Waterlogic or an Authorized  Waterlogic Dealer.    Waterlogic water treatment systems should be combined with selected water treatment components  to create a system specifically tailored for each application by trained and qualified personnel.      Products manufactured and marketed by Waterlogic and its affiliates are protected by patents issued or  pending in the United States and other countries.      Waterlogic reserves the right to change the specifications referred to in this literature at any time,  without prior notice.  Changes or modifications not expressly approved by Waterlogic could void the  warranty and user’s authority to operate the equipment.   ...
  • Page 3: Table Of Contents

     Model Designations and General Specifications  ..... 8   Electrical and Shipping Specifications ........ 9   Operating Instructions  ............ 10   Warranty   ................ 11    SERVICE GUIDE   Service Requirements  ............ 12   Bypassing Filters .............. 14   WL500 Principles of Operation .......... 15   Premium Sparkling Overview .......... 18   Hot Tank Principles of Operation .......... 19   Resetting the Hot Tank Overload (High Limit Safety) ... 20   Hot Tank Descaling .............. 21   Programming Menu and Instructions ........ 23   PCB Wire Drawings  .............. 37   Replacement Components (Consumables) ...... 38 ...
  • Page 4: Safety Alert Symbols

     WARNING!    Indicates a situation which, when not avoided, has the potential to result in death or severe  injury; and/or severe property damage.         CAUTION!    Indicates a situation which, when not avoided, results or has the potential to result in minor  injury; and/or minor property damage.     SAFETY PRECAUTIONS    Basic safety precautions should be followed, including the following:  Ensure all Local, State, and Federal Laws and Codes including health and safety guidelines are met when  installing Waterlogic Equipment.   Only qualified service technicians should attempt installation and  service of Waterlogic Equipment.  Always read the entire operating instructions before using the  appliance and save these instructions for future use.    DANGER!  This product can cause death or severe injury if incorrectly operated, installed or  maintained. The installation, maintenance, sanitizing and any repair must be performed by qualified  persons trained by Waterlogic International or their approved distributors only.  Do not remove any  panel or cover to protect against electrical shock and exposure to UV radiation.      DANGER! ELECTRICAL SHOCK HAZARD.  Always use a dedicated and properly grounded outlet.  Unit  should be protected by ground‐fault circuit interrupter (GFCI) or residual current device (RCD) having  a rated residual operating current not exceeding 30mA.  Use only Waterlogic supplied power cord.  Never use extension cords or power strips to connect unit. Do not use if the power supply cord is  damaged. Always unplug from power supply prior to servicing.    WARNING!  AUTHORIZED USE ONLY.  This appliance is to be used for its intended purpose as  described in this manual and untrained individuals who use this manual assume the risk of any  resulting property damage or personal injury.  This appliance can’t be used by children and persons  with reduced physical, sensory or mental capabilities or lack of experience.           WARNING! UV‐C EMITTER (UV LAMP).  This appliance contains a UV‐C emitter (UV Lamp).  UV‐C radiation may, even in little doses, cause harm to the eyes and skin. Unintended use or damage  to the housing may result in the escape of dangerous UV‐C radiation. Never operate the UV‐C  emitter if damaged or removed from enclosure. Do not touch or look directly into the faucet.    WL500 Manual                                                                             Page 4   Revision 4‐10‐2019 ...
  • Page 5 WARNING!  DO NOT OPERATE IF DAMAGED.  Unplug and isolate water supply if abnormal conditions  exist. Contact Waterlogic or authorized dealer for repair, service, and installation to avoid hazards.     WARNING!  HOT WATER.  Unit produces Hot Water in excess of 80 C (175 F).  Water above 52 C  (125 F) can cause severe burns or scalding.  Keep unauthorized people and children away from the  unit to avoid accidental dispensing of hot water.      WARNING! CONNECT TO POTABLE WATER SUPPLY.  This system is to be used for water only and is  not intended for use where water is microbiologically unsafe or with water of unknown quality  without adequate disinfection before or after the system.    WARNING!  TIP HAZARD.  Dispenser could tip or fall causing serious injury.  Always install unit on a  firm, flat, and level surface and secure the WL500 Water Treatment System to the base cabinet with  the screw provided to lock the components together.  Secure unit to cabinet, wall, or floor if needed.   Never place heavy items on top of unit and never climb, stand, or hang on unit or storage cabinet to  prevent injury and damage.    WARNING!  UNIT IS HEAVY.  TWO PERSON LIFT REQUIRED.  Transport unit empty and always use  material handling equipment or two people with proper lifting technique to reduce injury risk.             WARNING!  STORE AND TRANSPORT UNIT EMPTY.   ALWAYS SANITIZE BEFORE USE.  The unit must be completely drained before storing to avoid stagnation and reduce microbiological  contamination (potential bacterial growth).  Always sanitize before use to eliminate any potential  microbiological contaminates.     CAUTION!  INDOOR USE ONLY.   Intended for Household Use.  Never expose to direct sunlight, heat  sources, or ambient air temperature above 37°C (100°F) or below 2°C (35°F).  Install indoors and keep  unit away from excessive humidity.  Never expose to freezing temperatures.  Ensure there is  adequate clearance around the unit to allow refrigeration system condenser to dissipate heat.   Warmer environments require more clearance around the unit.  Minimum clearance around all  surfaces of the machine is 2‐inches.  Installs where the ambient temperature exceeds 27°C (80°F),  require a minimum of 4‐inches clearance for proper heat dissipation and efficient operation.       CAUTION!  USE A WATER PRESSURE REGULATOR. Waterlogic will not be responsible for injury or ...
  • Page 6: Features And Benefits

    WL500 FEATURES AND BENEFITS    Premium Sparkling Water  Unlimited Premium Sparkling Water produced through innovative Mizzling Technology.       Cold, Hot, and Extra Hot Water    Pressure Fed Cold, Hot, and Extra Hot Selections to meet a wide range of customer demands.    High Volume Storage and Water Capacity  3 liters of Cold, 1 liter of Sparkling, and 1.6 liters of Hot Water Storage.        BioCote®Anti‐Microbial Protection  Certain plastic, silicon and painted surfaces surrounding the dispensing areas and drip tray  are infused with exclusive additive called BioCote®.  BioCote® provides an effective barrier  against microbes like bacteria and mold, which may cause odors and staining.    Large Dispense Area with Recessed Faucet  6‐3/4 inch dispense height with BioCote® recessed faucet to protect from cross‐contamination.    Drip Tray with Sensor and Alarm    Two‐piece BioCote® drip tray for easy cleaning.  Drip Tray Sensor and Drip Tray Full Fault Mode that  halts supply to prevent overflow and sounds alarm to reduce accident potential.    Child Safeguard  WL500  requires selection followed by main dispense and defaults back to  Water Treatment System  cold/sparkling water selection after 3 seconds of inactivity to prevent accidental dispensing of hot  water.         Digital Display     Water Treatment System has an innovative user interface utilizing a LCD display for easy use and  WL500    programming.   ...
  • Page 7: Certifications

    WL500 CERTIFICATIONS     Waterlogic Water Treatment Systems have been tested, and certified to rigorous NSF and UL  Standards.    We believe that performance testing and certifications validate Waterlogic as a world‐leader in water  treatment systems.      WL500 Water Treatment System Certifications Include  UL399 – Certified Drinking Water Cooler  Intertek Labs (ETL) Certified the WL500 Water Treatment System to ANSI/UL 399  Standard for Drinking Water Coolers.    CSA C22.2 No. 120   CSA Standard for Refrigeration.      BPA Free ‐ Waterlogic tests for BPA and declares that all of its products are Bisphenol‐A  FREE and contain no harmful BPA plastics.        Safe Drinking Water Act  Waterlogic  water treatment systems conform to the Safe Drinking Water Act (SWDA) “lead‐free”  amendment effective January 4, 2014, and  Waterlogic has tested for BPA and declares that all of its  products are Bisphenol‐A FREE and contain no harmful BPA plastics.    Waterlogic is certified to ISO 9001:2015 – Quality Management Systems (certified  by Intertek).  ISO 9001 is the internationally accepted standard for well managed  organizations that have adopted the key quality management principles to its  operations to bring consistent quality products and a  culture of continuous improvement.      WL500 Manual                                                                             Page 7   Revision 4‐10‐2019 ...
  • Page 8 MODEL – PART NUMBER  Waterlogic WL500 ‐ Cold, Sparkling, Hot, Extra Hot  WL500   10‐VMHCS3  F‐6004‐M‐HCS‐DT‐CS‐INN  Serial Number Prefix:  93 or MB2H504CS  AK‐0005  Optional Base Cabinet   WLCP PN 10‐7000  AK‐0007  Optional Cup Dispenser for Base Cabinet   WLCP PN 10‐7001      SPECIFICATIONS  ITEM  WL500 (w/o BASE CABINET) WL500 (with BASE CABINET) Water & CO Connection  ¼” Quick Connect  Cold Water Temperature – Factory Set Point 5°C (41°F) Cold Water Temperature  (Adjustable) 1.1° ‐ 12.2°C (34° - 54° F)  Cold Tank Size  2 Liter (.53 Gallons)  Sparkling Tank Size  2 Liter (.53 Gallons) ‐ 1 Liter pre‐chill, 1 Liter sparkling  Ho Water Temperature – Factory Set Point 87.2°C (189°F)  Hot Water Temperature  Adjustable ‐ 70° ‐ 95°C (158°‐ 203°F) Programmable  Hot Tank Size ...
  • Page 9 SHIPPING SPECIFICATIONS  BASE CABINET ASSEMBLY  CUP HOLDER ASSEMBLY ITEM  WL500 (w/o BASE CABINET) P/N AK‐0005  P/N AK‐0007  43cm x 47.75cm x 47cm 43cm x 47.75cm x 125cm Width/Depth/Height      17 in. x 18 in. x 18.5 in.   17 in. x 18 in. x 49.25 in.  Weight – Dry (w/o packaging)  29.5 kg (65 lb.)  14.5 kg. (32 lb.)  3.9 kg (8.5 lb.)  51cm x 47.75cm x 47cm Shipping Information  20 in. x 22 in. x 22 in.  84cm x 46cm x 25.4cm  81cm x 30.5cm x 17.8cm  (length x width x height)    33 in. x 18 in. x 10 in.  32 in. x 12 in. x 7 in.  8 units per pallet  Shipping Weight – Dry  70 lb. (32 kg)  35 lb. (16 kg)  4 kg (9 lb.)      #WL500 is 18.5 in. tall and may not fit between countertops and cabinets ‐ Check installation to ensure adequate clearance.      ELECTRICAL SPECIFICATIONS ...
  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS                      Main Dispense Button         The above picture shows front LCD display and control Panel for the Waterlogic WL500 Water  Treatment System.     Buttons  Instructions    Press Cold Selection (Button 1), followed by the Main Dispense  button    Press Sparkling Selection (Button 2), followed by the Main  Dispense button    Press Hot Selection (Button 3), followed by the Main Dispense  button  Press Extra Hot Selection (Button 4),   Wait approximately 30 Seconds.  Press Hot Selection (Button 3)      * This procedure will raise the hot water temperature  approximately 2  F.  Repeating the process over again will raise ...
  • Page 11: Warranty

      Waterlogic and its affiliated companies hereby limit the duration of any and all implied warranties to a  maximum period of three (3) years from the date of purchase including, but not limited to, the implied  warranties of merchantability and fitness for a particular purpose. Some states do not allow limitations on  how long an implied warranty lasts, so the above limitation may not apply to you. Consequential and  incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or  limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to  you.    This warranty gives you specific legal rights and you may also have other rights which may vary from state  to state.    New Warranty Policy issued by Waterlogic Commercial Products LLC, USA ‐ January 10, 2014    Waterlogic Commercials Products LLC             Tel: (800) 288‐1891  11710 Stonegate Circle                      Website:  waterlogic.us  Omaha, NE  68164      WL500 Manual                                                                             Page 11   Revision 4‐10‐2019 ...
  • Page 12: Service Requirements

    SERVICE REQUIREMENTS    WARNING!  Read and understand the contents of this manual before attempting to service  WL500 Water Treatment System. Failure to follow the instructions in this manual could result  in death, serious personal injury, or severe property damage.  Only trained and qualified  technicians should attempt to install, maintain, or service Waterlogic Equipment.      1. Visually inspect all electrical and water connections for signs of wear or damage.     DANGER!  HIGH VOLTAGE ELECTRICAL HAZARD.  Unplug before inspection and service.      2. Waterlogic recommends changing the UV Lamp every 12 months.    Note:  UV Lamp Sensor is temperature sensitive.  During extended periods of use, especially when  filing or draining the unit, when water is not being dispensed, UV Lamp Sensor can overheat,  initiating a UV Fault.  If this occurs, turn off the unit for 5 minutes and allow sensor to cool before  resuming operation.    WARNING!  ULTRAVIOLET RADIATION.  Protect your skin and eyes against ultraviolet rays.   Never look directly at an operating UV light.  Disconnect before removing UV Lamp.    CAUTION!  UV LAMPS ARE HAZARDOUS.  Lamps are considered Hazardous Waste and must be  disposed of accordingly.   Refer to Product MSDS sheet for details.    UV DECLARATION:  The UV Lamp in this appliance conforms to the applicable provisions in the Code  of Federal Regulations(CFR) requirements including; Title 21, Chapter 1, Subchapter J, Radiological  Health.     3. Clean the Quartz Sleeve that surrounds the UV Lamp with a non‐abrasive cloth, descaling solution,  or ultrasonic bath if needed when changing UV Lamps.    CAUTION!  UV SYSTEM IS FRAGILE.  Never handle the UV lamp or Quartz Sleeve with bare hands.   UV Lamp and quartz sleeve must be free of oils and contaminants to ensure proper operation.   Use a soft non‐abrasive cloth to clean UV lamps.   ...
  • Page 13     8. WL500 Water Treatment System Sparkling Tank has a Level Sensor Probe that needs to be  maintained and descaled at every filter change.      WARNING!  HIGH PRESSURE COMPRESSED GAS HAZARD.  Isolate CO  gas supply and relieve  pressure in tank by opening PRV (pressure relief valve) before attempting to remove the Level  Sensor Probe or any other component under pressure.     9. Ensure there is adequate (minimum of 2”) clearance around the unit and clean the condenser grill  and Compressor fan to provide efficient cooling system operation.    10. Test the drip tray overflow function.  Clean and dry off the drip tray and sensors.    11. Sanitize the Cold and Sparkling Tanks per instructions in the pre‐installation procedures.    WARNING!  SANITIZER MAY CONTAIN HAZARDOUS CHEMICALS.  Use of proper personal  protective equipment such as rubber gloves and eye protection is required.        12. Clean and sanitize external surfaces of the unit.  Use soap and water or chemicals that are  compatible with ABS plastic and will not damage or degrade the product surfaces.     13.  Remove and clean the Faucet.  Replace as needed.        WL500 Manual                                                                             Page 13   Revision 4‐10‐2019 ...
  • Page 14: Bypassing Filters

    BYPASSING FILTERS    Older Models of the WL500 Water Treatment System may have filters installed and need to be  bypassed.    1. Remove both  2. Remove 6  reverse threaded  Screws from  filters in unit by  Front of the  unscrewing filters  WL500 Water  clockwise.   Treatment  System.       3. Remove six screws  4. Remove both Side Panels  from back of Unit.    5. Remove Tube from Water Inlet to Filter.  6. Remove Tube    from Filter to    Tee at    Solenoid       LEFT SIDE OF UNIT  RIGHT SIDE OF UNIT ...
  • Page 15: Wl500 Principles Of Operation

    WL500 PRINCIPLES of OPERATION    It will take the WL500 Water Treatment System approximately 10 minutes to heat 1.6 liters of water in  the hot circuit and 45 minutes to chill the 4 liters of water in the cold circuit to set point temperatures  after all tanks have been properly filled.  The WL500 Water Treatment System has two Cold Tanks; a 2  liter UV Cold Tank and a 2 liter Sparkling Cold Tank which is separated by a baffle/divider plate that  isolates a 1 liter Sparkling Water Chamber from a 1‐liter Pre‐Chill Chamber within.      UV Cold Tank  Sparkling Cold Tank  Sparkling Cold Tank      Solenoid Solenoid 4  5    Level Probe 2    35 to 40 PSI  UV Lamp  Pressure Valve Cold Sensor    Dispense Faucets     1 Liter        Sparkling    Chamber      Check  ...
  • Page 16 Dispensing Hot Water from the WL500 Water Treatment System  To dispense hot water, select the small HOT (Button 3) and release.  HOT will appear in the display, and  press the Main Dispense Button.  This will open the hot input solenoid (Solenoid 1– not shown above)  and allow hot water to dispense through the faucet.  The WL500 Water Treatment System can be  programmed to default back to COLD or Sparkling after 3 seconds of inactivity as a safety feature to  prevent accidental dispensing of hot water.      Dispensing Extra Hot Water from the WL500 Water Treatment System  Typically, the WL500 Water Treatment System hot water temperature is set to 87.2 C  F).  In some  ° ° cases, extra hot water is desired for making soups and teas.  To temporarily raise the hot water  temperature, users can depress and release the EXTRA HOT select button (button 4). The word  HEATING will appear in the display for 10‐seconds, which will raise the hot water temperature about  F.  If the user presses the EXTRA HOT select button again after 30‐seconds have expired, the word  ° HEATING will appear in the display, and the temperature in the Hot Tank will be raised another 2  F.   Eventually, as the process is repeated, the Hot Tank temperature will reach up to 95 F), and the  °  ( ° extra heating will be disabled.  At this point, 95 C (203 F) hot water can be dispensed from the WL500,  ° ° Water Treatment System which is a desired temperature for soups/teas.  The WL500 Water Treatment  System will return to the hot temperature set point after the extra hot water is dispensed.    Dispensing Premium Sparkling Water from the WL500 Water Treatment System  To dispense sparkling water, press and release Sparkling (Button 2).  SPARKLING will appear in the  display.  From this point, the user has 3‐seconds to press the Main Dispensing Button for Premium  Sparkling Water.  The unit will default back to COLD water after 3 seconds unless the Default Set is  changed to Sparkling. (See Programming Section)      When the Main Dispensing Button is pressed, Solenoid 5 will open, and the CO  gas supply from the ...
  • Page 17 Once the level sensor detects the tank is full of water, the PCB will shut down sparkling water  generation (Mizzling Process).  The WL500 Water Treatment System will return to the COLD default  selection after 3 seconds.  Cold and Hot water can be dispensed while sparkling water is being  generated.  The sparkling water generation will stop as soon as sparkling water is dispensed or the  chamber fills.  The WL500 Water Treatment System will make 1 liter (34 ounces) of sparkling water in  approximately 1 minute, 20 seconds.  Typically, users will only dispense up to ½ liter (17 ounces) of  sparkling water at a time, and the WL500 Water Treatment System takes about 40 seconds to  regenerate sparkling water tank accordingly.        Waterlogic WL500 Water Treatment System produces  Premium Sparkling Water which is made in a batch and  contains a fine, dense carbonation as compared to some  “soda water” products.  Optimal sparkling water is  generated with cold water under 7.8°C (46°F).    WL500 Water Treatment System Sparkling Level Sensor  Probe requires inspection and service.  See Service Section.    WL500 Water Treatment System Energy Saving Sleep  Mode  The WL500 Water Treatment System has programmable  Energy Saving Sleep Mode.  When Energy Saving Sleep  Mode is ON the WL500 Water Treatment System will shut  down the heater circuit to conserve energy after the  machine is idle for 3 hours.  The heater circuit will awake  once any button is depressed and it will reheat the Hot  Tank to set point temperature.  “ENERGY SAVING SLEEP  MODE” will be displayed.  Always check the Energy Saving  Sleep Mode setting if unit does not produce hot water as  expected.       WL500 UV Protection  The Waterlogic WL500 Water Treatment System contains a germicidal ultraviolet (UV) lamp that  sterilizes water in the Cold Tank and requires annual replacement.    The WL500 Water Treatment System has a UV CDS Sensor located in the Cap of the UV Tank.  UV Fault  Mode Protection will alert the user with a 20 second audible alarm and display UV FAULT on screen  when UV light is not detected.  UV Fault Mode Protection will shut off Cold and Sparkling water to avoid ...
  • Page 18: Premium Sparkling Overview

    WATERLOGIC WL500 PREMIUM SPARKLING OVERVIEW    Waterlogic WL500 Water Treatment System produces Premium Sparkling Water which is made in a  batch and contains a fine, dense carbonation as compared to other “soda water” products in the  market.  Optimum sparkling water is generated in the WL500 Water Treatment System with 5 C (41°F)  ° cold water and food grade CO  at 43.5 psi (3 Bar).        Please ensure customer’s carbonation expectations are clear before installing a WL500 Water  Treatment System.   Waterlogic Premium Sparkling Water is very similar to Perrier and Pellegrino.      The premium fine dense sparkling water produced by the WL500 Water Treatment System may not  meet user's expectations if they are looking for large bubble soda stream type of carbonation.       A blind taste test using Pellegrino/Perrier is a great way to demonstrate the expectations and quality of  the Waterlogic Premium Sparkling Water.  Open two bottles and empty one and fill with Premium  Waterlogic Sparkling Water from a freshly regenerated tank operating at optimum conditions (41°F / 43  psi).  Recap both and mark the bottles accordingly.  Ensure the bottles are sampled at the same  temperature by refrigerating if necessary for later use and comparison.  Most users will prefer the great  taste of the Waterlogic Premium Sparkling Water at a fraction of the cost of the bottled counterparts.    You may purchase a carbonation tester from a company such as Taprite to measure the level of  carbonation if you wish to quantify the results and check the output of the WL500 Water Treatment  System.  The level of carbonation is very consistent as long the test conditions are repeatable and  proper testing procedures are followed.      Temperature of the water in the WL500 Water Treatment System has the largest impact on the taste  and carbonation levels and the Cold Tank must below 46°F (prefer 41°F) before injecting water into the  Sparkling Chamber (carbonator) to produce proper results.         The temperature inside the Cold Tank can be displayed on the LCD screen by setting the temp display  function to "Ranging" mode.  See the programming section to adjust this setting.    Allow a minimum of an hour for the WL500 Water Treatment System to chill the cold circuit to the 41°F  set point temperature before sampling the sparkling water.  Once the water is chilled, the Sparkling  Tank should be "Regenerated" by completely and continuously dispensing the initial batch (0.8 liters) of ...
  • Page 19: Hot Tank Principles Of Operation

    The Vent Chamber allows for expansion of the water  when it is heated.    The chambers are separated by a welded‐in tank  baffle.    Water always flows into the bottom of the tank and  out the top to the faucet.    The Hot Tank outlet tube has a restrictor in its base.   This ensures the reservoir is always full by allowing  more water in than out.    There is a small hole in the side of the tank outlet tube  that allows air and water to pass into the vent  chamber as it is heated.    Water in the vent chamber is suctioned back through  the outlet tube vent hole when water is dispensed.    Expansion of water as it is heated in the reservoir will  push the water out the faucet when the outlet tube  vent hole becomes plugged with debris or scale.      The small Outlet Vent Hole is susceptible to scale build  up and is a key indicator that descaling is required.    It is critical to descale the Hot Tank through the vent  line and outlet line on a regular basis to prevent this  problem.      Descaling through the inlet and/or outlet lines only  will not clean the vent chamber and outlet vent hole  properly.        WL500 Manual                                                                             Page 19   Revision 4‐10‐2019 ...
  • Page 20: Resetting The Hot Tank Overload (High Limit Safety)

    RESETTING THE HOT TANK OVERLOAD OR HIGH LIMIT SAFETY           1.   Green Compressor/Heater Switch must be in the O=OFF position  2.   Unplug the Power Cord from rear of WL500 Water Treatment System.  3.   Remove the Side Panel by removing the Front Hatch and Side Panels.    4.   Locate the Hot Tank        5.   Press the Reset Button       6.   Replace the Lower Front Panel.  7.   Plug in the Power Cord.    8.   Turn on the Green Compressor / Heater Switch I=ON position     The Hot and Cold Tanks must be filled with water BEFORE turning on the  Red Heater and Compressor Switch. ...
  • Page 21: Hot Tank Descaling

      See Hot Tank Descaling Video and training procedure located on the Partner Area of the Waterlogic  Website for more detailed instructions.  www.waterlogic.us    Materials Needed:    Personal Protective Equipment.  Rubber or Nitrile Safety Gloves and Protective Eyewear    Phillips Screwdriver     Temperature Gauge   Water Pitcher or Container to collect water from the faucet   5‐gallon container or drain basin   Citric Acid Based Cleaner   ¼” Plastic Tubing, at least 4 feet in length, and assorted ¼” quick connect fittings   Sanitizing Cartridge   Food Coloring    1. Put descaler per directions and 3 drops of food coloring into the descaling cartridge.    2. Connect descaling cartridge to the inlet water supply and connect to inlet bulkhead fitting on the  back of the unit.  Turn on Water Supply.    3. Select Hot Water and depress the Main Dispensing Button on the Front Control Panel until descaling  solution (colored water) comes out of the faucet.  Container and drain basic will be required to  catch water from the faucet.      WL500 Manual                                                                             Page 21   Revision 4‐10‐2019 ...
  • Page 22 4. Turn off water supply and remove sanitizing cartridge from inlet water supply.  Reconnect water  supply to inlet fitting.    5. Allow descaling solution to remain in the Hot Tank for 15 minutes (length of time may vary  depending on water conditions).    6. Place a pitcher, catch basin or other container under the faucet of the WL500 Water Treatment  System.    7. Flush the Hot Tank until water runs clear.    8. Once clear Water dispenses from the faucet the Hot Tank has been descaled.      WARNING!  HOT WATER HAZARD.  Unit Produces Very Hot Water and Steam.  Always use  insulated and chemically compatible containers and let unit cool down before draining the Hot  Tank to avoid injury.      CAUTION!  REPLACE HOT TANK (HT‐3021) EVERY 3‐5 YEARS.  The Hot Tank and its controls  should be replaced a minimum of every five years to ensure efficient operation.      9.  Always ensure unit is performing to the customer’s satisfaction.      CAUTION!   RIBBON CONNECTORS MUST BE FULLY ENGAGED.  Ensure ribbon connectors are  properly engaged and fully seated in front PCB (Printed Circuit Board) to avoid  intermittent/connectivity issues any time the front Hatch Panel is accessed.      WARNING!  REINSTALL ALL PANELS AND COVERS.  Always reinstall all Panels, Protective Covers,  and fasteners after servicing equipment.  Failure to do so could result in severe personal injury    and will void the certifications and warranty of the equipment.    ...
  • Page 23 Timer for Filters Life set at 3 months.  Displays “Change Filters” after 3  3 months  months  Timer for Filters Life set at 6 months.  Displays “Change Filters” after 6  6 months  months  Filters Timer  Timer for Filters Life set at 9 months.  Displays “Change Filters” after 9  9 months  months  None  Timer for Filters Life is turned off.  Default is None  Indicates amount of water flowed(gal/liters) or days elapsed since last  Filters Life   00 DAYS  reset  Ensure Filters Timer is enabled and Filters Life indicates DAYS  On  Shuts heater down (hot water) if not used in 3 hours. – Default Sleep is ON  Energy Saving Sleep Mode  Off  Hot water remains powered indefinitely.  Defaults Display & Dispense Selection to Cold after 3 seconds. Default is  Cold  Cold  Default Set  Sparkling  Defaults Display & Dispense Selection to Sparkling after 3 seconds.  Resets the Filters Life to zero.  Confirm by selecting Button 3 (Hot) to Save  Reset  OK?  and Exit.  This resets the timer.     WL500 Manual                                                                             Page 23   Revision 4‐10‐2019 ...
  • Page 24           Enter Password:    1    2.  Alternately Press No. 1 and No. 2 to enter the password    Password is:  1111    2    *Press Cold Selection Button (No. 1) to enter the password number    *Press Sparkling Selection Button (No. 2) to move to the next  password number      1111     3    3.  Press Hot Selection Button (No. 3) to enter the “1111” Password  After entering the programming mode – Press:    4.  Cold Selection Button (No. 1) to scroll programming options forward    Sparkling Selection Button (No. 2) to scroll programming options backwards        WL500 Manual                                                                             Page 24   Revision 4‐10‐2019 ...
  • Page 25   Recommended / Default Temperature Setting:  5°C (41°F)     1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.  After entering the programming mode – Press Cold Selection Button (No. 1)  until “Cold Temp” is displayed.  1    2.  *Note:    Pressing Cold Selection Button (No. 1) scrolls programming options forward   Pressing Sparkling Selection Button (No. 2) programming options backward      3  3.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Cold Selection Button (No. 1) to increase the Cold Temperate Setting    2  Press Sparkling Selection Button (No. 2) to decrease the Cold Temperature  4.  Setting.     Recommended / Default Temperature Setting:  5°C (41°F)      3  5.  Press Hot Selection Button (No. 3) to save the temperature setting chosen.  4  Press Extra Hot Selection Button (No. 4) to exit programming mode.  6.          WL500 Manual                                                                             Page 25   Revision 4‐10‐2019 ...
  • Page 26 The hot temperature can be set between 70°C to 95°C (158°F to 203°F) depending on which units are  selected (°C or °F) in the F/C programming setting.    Recommended / Default Temperature Setting: 87°C (189°F)     1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.  After entering the programming mode – Press Cold Selection Button (No. 1)  until “Hot Water” is displayed.  1    2.  *Note:    Pressing Cold Selection Button (No. 1) scrolls programming options forward   Pressing Sparkling Selection Button (No. 2) programming options backward    3  3.  Press Hot Selection Button (No. 3) to see what the current setting is.    Press Sparkling Selection Button (No. 2) to increase or decrease the  2  temperature setting.  4.    Recommended / Default Temperature Setting: 87°C (189°F)    3  5.  Press Hot Selection Button (No. 3) to save the temperature setting chosen.    4  6.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 26   Revision 4‐10‐2019 ...
  • Page 27   Temp Display               Temperature display is the temperature that the display screen shows.      Static – Display will always show the STATIC (SET POINT) temperature – Recommended / Default    Ranging – The Display will show the temperature of the water in the tank.      1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.    3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  2  Press Sparkling Selection Button (No. 2) to select “Static” or “Ranging”  3.    Recommended / Default Setting is STATIC      3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 27   Revision 4‐10‐2019 ...
  • Page 28       Determines how long the UV Lamp stays on.    3 minutes – The UV Lamp comes on every time you take a glass of cold water, and stays on for 3  minutes.  Recommended / Default    10 minutes – The UV Lamp comes on every time you take a glass of cold water, and stays on for  10 minutes.    Constant ‐ The UV Lamp is set to be on all the time.  Not Recommended    1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Sparkling Selection Button (No. 2) to select “3 minutes”, “10 minutes” or  2  “constant”.    3.    Recommended / Default Setting is 3 Minutes        3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.        WL500 Manual                                                                             Page 28   Revision 4‐10‐2019 ...
  • Page 29 °F / °C Set               Determines how the Display shows all temperature settings options:    °F‐ Fahrenheit – DEFAULT SETTING    °C ‐ Celsius  1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Sparkling Selection Button (No. 2) to select “Fahrenheit” or “Celcius”  2     3.  Recommended / Default Setting is Fahrenheit        3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.      WL500 Manual                                                                             Page 29   Revision 4‐10‐2019 ...
  • Page 30             The language shown on the display options:    English – Default  French  German  Spanish  *Many other languages.    1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Sparkling Selection Button (No. 2) to select “Fahrenheit” or “Celcius”  2     3.  Recommended / Default Setting is Fahrenheit        3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.        WL500 Manual                                                                             Page 30   Revision 4‐10‐2019 ...
  • Page 31 PROGRAMING – FLOW COUNTER         Flow Counter           Flow Counter  Do not use this setting – it will result in a “NO WATER SUPPLY” fault.      Use the Filters Timer instead.             WL500 Manual                                                                             Page 31   Revision 4‐10‐2019 ...
  • Page 32     Timer for Filters Life:    NONE – Timer for Filters turned off – Default Setting    3 months – Displays “Change Filters” after 3 months    6 months – Displays “Change Filters” after 6 months    9 months – Displays “Change Filters” after 9 months    1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Sparkling Selection Button (No. 2) to select “None, 3 months, 6 months  2  or 9 months)  3.    Recommended / Default Setting is NONE        3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 32   Revision 4‐10‐2019 ...
  • Page 33       Filter Life             Filter Life indicates the amount of water that has flowed (gallons / liters) or days elapsed since last  reset.    Ensure Filter Timer is enabled, and Filters Life indicates DAYS.    1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  2  3.  Press Sparkling Selection Button (No. 2) to select “00 DAYS”      3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 33   Revision 4‐10‐2019 ...
  • Page 34               Energy Saving Sleep Mode    On – Energy Saving Sleep Mode on.  Shuts hear down (hot water) if not used in 3 hours.  Default  Setting    Off ‐ Hot water remains powered indefinitely.  1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Sparkling Selection Button (No. 2) to select “On” or “Off”  2    3.  Recommended / Default Setting is On        3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 34   Revision 4‐10‐2019 ...
  • Page 35                 Defaults Display and Dispense Selection after 3 seconds     Cold ‐ Default    Sparkling  1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.      3  2.  Press Hot Selection Button (No. 3) to see what the current setting is.  Press Sparkling Selection Button (No. 2) to select “On” or “Off”  2    3.  Recommended / Default Setting is On        3  4.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  5.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 35   Revision 4‐10‐2019 ...
  • Page 36 PROGRAMING – RESET FILTERS LIFE TO ZERO         Reset                   Resets the Filters life to zero.    1.  Enter the Programming Mode in “Accessing Programming Mode” instructions.  2  2.  Press Sparkling Selection Button (No. 2) to select “OK?”      3  3.  Press Hot Selection Button (No. 3) to save the setting chosen.  4  4.  Press Extra Hot Selection Button (No. 4) to exit programming mode.          WL500 Manual                                                                             Page 36   Revision 4‐10‐2019 ...
  • Page 37: Pcb Wire Drawings

    PCB WIRE DRAWINGS        WL500 Manual                                                                             Page 37   Revision 4‐10‐2019 ...
  • Page 38: Replacement Components (Consumables)

    Factory PN HT‐3021   Pressure Regulator   Needed to ensure input  with tamper proof adjuster,  water pressure is adequate  preset to 35‐45 psi, single  for machine performance.    output pressure gauge, inline  AK‐0003‐L00  shut‐off valve, ¼ quick connect  fitting, safety relief, and CO2  CGA‐320 thread adapter.        CAUTION!  Use only Waterlogic Replacement parts that can be obtained from Waterlogic or an  Authorized Waterlogic Dealer, failure to do so will void the Warranty.    See Installation and Service Manual for additional information.      Hot Tank Service   Hot Tanks (with controls) must be replaced at least every 3‐5 years depending on usage.  Descaling hot  tank may be required on a regular basis depending upon filtration and local water conditions.  See  Installation and Service Manual for further details.    Surface Cleaning   Clean on a regular basis with damp lint free cloth.  Never use harsh chemicals (alcohol or acid based) or  abrasive agents on any part of the product to avoid damage.  A mild cleaner such as Simple Green or  equivalent is recommended.      DISPOSAL  End of Life  At the end of this product’s life, ensure that it is disposed of in an environmentally friendly manner  which is fully compliant with all Federal/State/Local Requirements and Guidelines.  Do not dispose of  this appliance with normal household or business waste.       WL500 Manual                                                                             Page 38   Revision 4‐10‐2019 ...
  • Page 39: Drawings And Parts List

    WL500 DRAWINGS and PARTS LIST     Yellow = Consumables     Green = Recommended spare parts WL500 Manual                                                                             Page 39   Revision 4‐10‐2019 ...
  • Page 40        WETTED PARTS  Yellow = Consumables Green = Recommended spare parts WL500 Manual                                                                             Page 40   Revision 4‐10‐2019 ...
  • Page 41 7  12‐1500  Recommend stocking 1 each for  PU‐4016  Yes  every 10 units purchased    UV Lamp Ballast 110V/60Hz   8  10‐3010  Recommend stocking 1 each for  EL‐5006‐A CN  Yes  every 10 units purchased    UV Lamp Sensor (CDS) with wire  9  10‐3011  Recommend stocking 1 each for  EL‐5007  Yes  every 10 units purchased    Main PCB  10  10‐7090  Recommend stocking 1 each for  EN‐6067‐A  Yes  every 10 units purchased  Drip Tray Grill – Charcoal    11  12‐8150  Recommend stocking 2 each for  PL‐1152  Yes  every 10 units purchased  WL500 Manual                                                                             Page 41   Revision 4‐10‐2019 ...
  • Page 42     Natural Faucet O‐Ring – Silicon  White  16  10‐2600  CT‐2007  Yes  Recommend stocking 1 each for  every 10 units purchased        Faucet ‐ 3‐way  17  12‐5235  Recommend stocking 1 each for  PL‐1212‐CN  Yes  every 10 units purchased       CO2 Pressure Regulator  with tamper proof adjuster,  preset to 35‐45 psi, single output  pressure gauge, inline shut‐off  18  AK‐0003‐L00  valve, ¼ quick connect fitting,  AK‐0003‐I00‐00  Yes  safety relief, and CO2 CGA‐320  thread adapter.        Recommend stocking 1 each for  every 10 units purchased  WL500 Manual                                                                             Page 42   Revision 4‐10‐2019 ...
  • Page 43 10‐7068  Hatch Panel Locking Support  ST‐8103  Yes  24  10‐7073  Top Cover Charcoal  PL‐1095  Yes    Electronics Cover Bracket  25  10‐7265  ST‐8278  Yes  Under Top Cover    Power Line Noise Filter,  26  10‐4013  ElectroMagnetic Interference  EL‐5016  Yes  Filters (EMI)     Fuse Holder and Fuse 120V / 15A  27  10‐3014  EL‐5053  Yes  with One Wire  28  10‐3007  Power Cord 120V ‐ 1840 mm  EL‐5001‐B  Yes      WL500 Manual                                                                             Page 43   Revision 4‐10‐2019 ...
  • Page 44 No    33  10‐7051  Back Panel  ST‐8094‐A  No    Bulkhead Union ¼” x ¼” John  34  10‐3067  PU‐4028‐A  Yes  Guest P/N PI1208S  35  10‐7220  Power Transformer for Sparkling  EL‐5094  Yes      36  10‐1500  Fan Motor 110V (AC Axial fan)  CT‐2011  Yes    36.1  NA  Fan Bracket  ST‐8227  No    37  10‐7081  Cooling Fan Condenser  CO‐9023  Yes  WL500 Manual                                                                             Page 44   Revision 4‐10‐2019 ...
  • Page 45 Yes  120V/60Hz  42.1  10‐3003  Compressor Starter Relay  CO‐9016  Yes  42.2  10‐5018  Compressor Overload  CO‐9015  Yes  42.3  12‐1001  Filter Dryer  CO‐9008  Yes    Front Hatch Panel  43  10‐7071  Hot Water Caution Label LP‐7169  PL‐1093  Yes  / 12‐0001 required.  Hot Water Caution Label –  43.1  12‐0001  adhere to Front Upper Drip Tray  LP‐7169  Yes  Insert Panel    44  10‐7054   Filter Housing Bracket  ST‐8097  Yes  WL500 Manual                                                                             Page 45   Revision 4‐10‐2019 ...
  • Page 46 Yes       JG LLD PE Tube ‐ Blue  Purchase from  52  O.D.1/4"John Guest P/N PE‐08‐ PU‐4031  No  John Guest  BI‐1000F‐B  Purchase from  JG Equal Straight Connector  53  PU‐4010  No  John Guest  1/4"(PI0408S)      Purchase from  ¼” Union Tee John Guest P/N  54  PU‐4011  No  John Guest  P10208S      Purchase from  1/4” Union Elbow John Guest P/N  56  PU‐4008‐A  No  John Guest  P10308S      WL500 Manual                                                                             Page 46   Revision 4‐10‐2019 ...
  • Page 47     Purchase from  5/16” x ¼” Reducing Elbow John  62  PU‐4007  No  John Guest  Guest P/N PI211008S    63  12‐8006  Hot Tank Fixing Bracket 400mm   ST‐8120  Yes  Not  Purchase from  JG Stem Elbow Connector 1/4" *  PU‐4066  No  shown  John Guest  1/4" ‐ Acetal PI220808S)  Not  AK‐0014  Flow Restrictor 1.2 mm Hole  AK‐0014  No  shown  Not  10‐3007  Power Cord 120V – 1840 mm  EL‐5001‐B  Yes  shown          WL500 Manual                                                                             Page 47   Revision 4‐10‐2019 ...
  • Page 48: Base Cabinet Drawing And Assembly Instructions

    WL500 BASE CABINET DRAWING AND ASSEMBLY INSTRUCTIONS      Base Cabinet Kit AK‐0005  Upper Shelf    Back Panel  Side Panel  Side Panel  Front Panel  Assembly  Bottom Shelf Unit Rubber Feet Unit  WLCP PN 11‐2065  Factory PN ST‐8167CN  WL500 Manual                                                                             Page 48   Revision 4‐10‐2019 ...
  • Page 49 Install Unit Rubber Feed to the Bottom Shelf. Step 2    Back Panel  Attach the Back Panel to the Bottom Shelf using 3 of the  screws provided.       The back lip of the Bottom Shelf has 3 holes.   The front lip of the Bottom Shelf has 2 holes.   Bottom Shelf Step 3    Attach the Upper Shelf to the Back Panel using 3 screws  Back Panel  provided.    Upper Shelf  The back lip of the Upper Shelf has 3 holes.   The front lip of the Upper Shelf has 2 holes.   Step 4    Mount the Front Door and Frame Assembly to the front  Upper Shelf edges of the Upper and Bottom Shelves.    Upper and Bottom Shelf edges fit inside of Door Assembly  edges.      5 screws each at front and back edges    11 screws per Side Panel  Front Door and  Frame Assembly Bottom Shelf WL500 Manual                                                                             Page 49   Revision 4‐10‐2019 ...
  • Page 50 Side Panel   Step 5        Fasten the Side Panels to the frame.      The Side Panels fit either side, with the sharper  Side Panel curved edge placed toward the rear.      Align the side Panels using the plastic tabs that  protrude through the metal frame.  Blank Panel Step 6 ‐ Front Panel Assembly Installation Assembly     Skip this step if the optional Cup Holder will be installed     Attach the Blank Panel using 4 screws provided.    WARNING! DISPENSER COULD TIP OR FALL. Install unit on a firm, flat, and level  surface and secure the WL500 Water Treatment System to the Base Cabinet with the  Safety Screw (aka Lock Screw) provided to lock the components together. Never place  heavy items on top of unit and never climb, stand, or hang on unit or storage cabinet  to prevent injury and damage. Step 7     Locate and align the WL500 Water Treatment System on top of the Base  Cabinet.     Lock together using the safety bolt (aka locking bolt) provided.  WL500 Manual                                                                             Page 50   Revision 4‐10‐2019 ...
  • Page 51 WL500 CUP DISPENSER (AK‐0007) DRAWING AND ASSEMBLY INSTRUCTIONS        Step 1    Fasten Support Brackets to the back‐side of the cup holders as shown with the 8 screws provided.    Step 2    Fasten the Cup Dispenser Insert Panel into the Base Cabinet.      Note:  This will require maneuvering of the Insert Panel for proper alignment.  Take care not to break the  plastic tabs on the Insert Panel.    Step 3    Fasten the Cup Holder Assemblies to the Base Cabinet Door.  Cup Dispenser Kit AK‐0007 Contents:  Cup Dispenser Specifications  Cup Dispenser Insert Panel  Accepts cups from 4 oz. to 14 oz.  (2) Support Brackets  Cup Opening Minimum Diameter is 2 ½” (66 mm)  (2) Cup Dispenser Assemblies  Cup Opening Maximum Diameter is 3 ¼” (84 mm)  (8) Screws  WL500 Manual                                                                             Page 51   Revision 4‐10‐2019 ...
  • Page 52: Flow Diagram

    WL500 FLOW DIAGRAM      WL500 Manual                                                                             Page 52   Revision 4‐10‐2019 ...
  • Page 53 WL500 ELECTRICAL DIAGRAM        DANGER!  HIGH VOLTAGE ELECTRICAL HAZARD.  PCB (Printed Circuit Board) contains High  Voltage.  Only trained and qualified technicians should attempt live testing.   WL500 Manual                                                                             Page 53   Revision 4‐10‐2019 ...
  • Page 54: Pre-Installation Procedures

    Materials Needed:      Personal Protective Equipment.  Rubber or Nitrile Safety Gloves and Protective Eyewear    Phillips Screwdriver.     Temperature Gauge.   Water Pitcher or Container to collect water from the faucet   5‐gallon container or drain basin   Sanitizer ‐ Household Bleach (5.25% Sodium Hypochlorite) or Citric Acid Based Cleaner   ¼” Plastic Tubing, at least 4 feet in length, and assorted ¼” quick connect fittings.   TDS Meter and Test Strips for measuring chlorine. ‐ Optional   1/8 NPT Female Thread to ¼” Compression Fitting (Used to connect hose to drain fittings)      1. Unpack the Waterlogic WL500 Water Treatment System and check exterior for damage.         WARNING!  WL500 WATER TREATMENT SYSTEM IS HEAVY.  Use proper lifting aids and handling techniques to avoid injury.  Use assistance as single person  lift could cause injury. Always drain before handling and transporting and handling to reduce the  weight of the unit.        2. Remove the Retaining Screw that is located directly in front of  the faucet nipple.  Refer to Figure 1.  Removing this screw will  allow access to the inside serviceable components (Filters and  UV Lamp).    3. Open the Front Hatch Cover by lifting up and hinging outward.  ...
  • Page 55 Sanitize using a household bleach solution or other approved cleaner throughout the cold and sparkling  water circuits.  Follow all instructions on the sanitizer and flush with fresh water through the faucet  until odor and taste is acceptable.           WARNING!  USE PROPER PERSONAL PROTECTIVE EQUIPMENT  Always ensure proper ventilation and use proper personal protective equipment such as gloves and  eye protection when using chemicals.  Refer to Material Safety Data Sheet for specific requirements  of each chemical product. Take all necessary precautions to prevent sanitizer from contacting eyes,  clothing, and any other surfaces in could damage (carpets).      6. Remove the UV Cover Plate and set aside – 2 Screws.    7. Disconnect the UV Lamp harness and carefully remove the UV Lamp from the Quartz Sleeve.    CAUTION!  UV SYSTEM IS FRAGILE. Never handle the UV System with bare hands.  UV Lamp and  Quartz Sleeve must be free of oils and contaminants to ensure proper operation.      8. Remove UV Sensor from the side of the Cold Tank/Quartz Sleeve Retaining Cap.    9. Unscrew Cold Tank/Quartz Sleeve Retaining Cap and remove the Quartz Sleeve.  This may require  Top Cover to be removed to access properly and facilitate removal.    10. Mix ½ gallon of sanitizer per directions or use Bleach Solution (1 teaspoon = 1/6 oz. = 5 ml = ½ cap  full) of household bleach (Sodium Hypochlorite 5 ‐ 10% Concentration) with 1/2 gallon of water.   Always ensure sanitizer is compatible with stainless steel and acetyl plastic.    11. Pour sanitizer solution into Cold Tank thru funnel or spout.  You may add concentrated sanitizer (½  cap bleach) directly into empty Cold Tank instead of premixing.           WL500 Manual                                                                             Page 55   Revision 4‐10‐2019 ...
  • Page 56   14. Connect 40‐60 psi regulated, potable water supply to the water inlet bulkhead fitting located on the  back of the unit.  Turn on water supply and check for leaks.    15. Connect CO  gas line to WL500 Water Treatment System Bulkhead Inlet Fitting.  Regulate to 35‐45  psi.  Turn on CO .    WARNING! HIGH PRESSURE CO  GAS. Use/Handle in accordance with all safety standards.                 DANGER!  ELECTRICAL SHOCK HAZARD.   Do not plug in unit unless qualified.  Only qualified personnel who have read and understand this  entire manual should attempt to install or service this unit.      GREEN                      RED    16. Connect WL500 Water Treatment System to power, and turn on the RED  Power Switch I=ON.           CAUTION!  NEVER TURN ON HEATER BEFORE FILLING HOT TANK.  GREEN Compressor/Heater Switch must be in the O=OFF position while  the Hot Tank is empty.  Damage could occur within one minute and the overload (high limit) will  require manual reset if heater is turned on with an empty Hot Tank.     Fill the Cold Circuit with Sanitizer    17. Wait 10 seconds for the unit to perform its diagnostics checks, depress the main dispensing button  on the front control Panel until cold water/sanitizing solution comes out the faucet.      NOTE:  Container and drain basin will be required to catch the water from the faucet.      WARNING!  Use Personal Protective Equipment.  Gloves and Eye Protection Required.  The first 2  or 3 gallons of water will contain concentrated sanitizer. Use extreme care!    ...
  • Page 57  F   Water in the hot circuit is not sanitary until the temperature over 171 F for 5 minutes.  Do Not Ingest and avoid contact until heater is turned on for at least 5 minutes.    UV System Functional Test    WARNING!  ULTRAVIOLET RADIATION.  Protect your skin and eyes against ultraviolet rays.   Never look directly at an operating UV light.  Disconnect before removing.    24. Dim or shield the overhead lights and peer into the machine, on top of the Cold Tank, at the UV  connector and Retaining Cap.  The blue glow indicates that the lamp is lit.    25. Find the white wires delivering power to the top of the lamp assembly.  Follow the wires back until  the electrical connector is found.  Disconnect the electrical connector and verify that the UV Lamp  alarm annunciates.      26. Reconnect the UV Lamp wire connector, and cycle the Red Power Switch to clear the alarm.    Compressor Test       GREEN                      RED  27. Switch on the GREEN Compressor / Heater Switch (I=ON).  Always ensure  tanks are full of water before turning on the heater or the overload (high  limit) will open and require manual reset.  Once the Compressor starts, the  fan condenser also will start.  Verify the fan has started by feeling for the  discharge of air at the rear grill of the machine.  Heat exchange is a signal  that the refrigeration system is working.    28. Monitor the Cold Tank temperature on the front display of the unit by changing the Temp Display to  RANGING.  It will take about 45 minutes for the unit to chill down to the default set point  temperature of 41F assuming ambient inlet water of 75 F.  WL500 Manual                                                                             Page 57   Revision 4‐10‐2019 ...
  • Page 58 29. Once the machine reaches its target temperature, the Compressor and fan will shut off.  Draw a  glass of cold water and verify it is has been chilled to proper temperature.    Heater Test    30. Always ensure tanks are full of water before turning on the heater or the overload (high limit) will  open and require manual reset.  It will take the heater approximately 10 minutes to heat the water  from ambient 75F to the factory set point of 189F.  You can monitor the Hot Tank temperature by  selecting the hot button when the Temp Display is RANGING.  Dispense a cup of hot water to ensure  the temperature/odor/taste is acceptable.    WARNING!  VERY HOT WATER CAN BURN OR SCALD.   Hot water should be dispensed carefully into insulated container to avoid injury.     Drain the WL500 Water Treatment System for Transport    31. Drain the WL500 Water Treatment System for transportation per the Draining Instructions in this  manual.           WARNING!  STORE UNIT EMPTY.  ALWAYS SANITIZE BEFORE REUSE.  The unit must be completely drained and sealed before storing to avoid stagnation and reduce  microbiological contamination (potential bacterial growth).    WL500 Manual                                                                             Page 58   Revision 4‐10‐2019 ...
  • Page 59: Sanitizing Sparkling Tank Only

       Personal Protective Equipment.  Rubber or Nitrile Safety Gloves and Protective Eyewear    Phillips Screwdriver.     Temperature Gauge.   Water Pitcher or Container to collect water from the faucet   5‐gallon container or drain basin   Sanitizer ‐ Household Bleach (5.25% Sodium Hypochlorite) or Citric Acid Based Cleaner   ¼” Plastic Tubing, at least 4 feet in length, and assorted ¼” quick connect fittings.   TDS Meter and Test Strips for measuring chlorine. ‐ Optional   1/8 NPT Female Thread to ¼” Compression Fitting (Used to connect hose to drain fittings)        1. Unpack the Waterlogic WL500 Water Treatment System and check exterior for damage.         WARNING!  WL500 WATER TREATMENT SYSTEM IS HEAVY.  Use proper lifting aids and handling techniques to avoid injury.  Use assistance as single person  lift could cause injury. Always drain before handling and transporting and handling to reduce the  weight of the unit.        2. Remove the Retaining Screw that is located directly in front of  the faucet nipple.  Refer to Figure 1.  Removing this screw will  allow access to the inside serviceable components (Filters and  UV Lamp).    3. Open the Front Hatch Cover by lifting up and hinging outward.  ...
  • Page 60 Sparkling Water Level Sensor Level Sensor Fitting and Probe 6. Remove Fitting from CO  Line    7. Attach Water Inlet Valve     8. Add 1‐2 drops of Bleach into the Sparkling Tank through the  Sparkling Water Level Sensor line.        9. Connect Drain Water line and fitting to the Sparkling Water  Level Sensor line.  Drain Line   10. Flush 3‐5 Gallons through Sparkling Tank.  There  should be no bleach smell after flushing.    11. Reconnect Sparling Water Level Sensor, Fitting and Wires.            WL500 Manual                                                                             Page 60   Revision 4‐10‐2019 ...
  • Page 61 WL500 DRAINING INSTRUCTIONS            WARNING!  WL500 WATER TREATMENT SYSTEM IS A HEAVY OBJECT.  Use proper lifting aids and handling techniques to avoid injury.  Use assistance as single person lift could  cause injury. Always drain before handling to reduce weight.      Draining Notes    There are 3 tanks and a booster pump circuit that must be drained in the WL500 Water Treatment  System.  The cold still water circuit of the WL500 Water Treatment System consists of a 2‐liter Cold  Tank, a 1‐liter pre‐chill chamber and a booster pump circuit that is sealed and must be vented to drain.   The booster pump will have some water in the circuit that must be purged to remove it.  The Sparkling  Chamber does not have a vent or drain port and must be dispensed until empty (pushing CO  gas only  out of the faucet) to clear the water from the Sparkling Chamber.  It is critical to clear the cold still  water before draining the Sparkling Chamber to ensure the pump does not inject water back into the  Sparkling Chamber.  The Hot Tank has a drain port and is the only tank that is open to atmosphere  through the vent and faucet.     GREEN                      RED    Prior to draining the Hot Tank, turn the GREEN Compressor/Heater Switch off  (O=OFF), and dispense 2 liters of hot water from the machine.  As hot water is  dispensed from the faucet of the unit, colder water will be introduced into the Hot  Tank.  Since the GREEN Compressor/Heater switch is turned off the heater will not  energize and heat the incoming tap water.  Following this precaution prevents  exposing personnel and equipment (drains, catch basin, etc.) to scalding hot water.     Disable Cold and Hot Tanks       GREEN                      RED  1. Turn off the GREEN Heater / Compressor Switch to disable the heater and  Compressor. O=OFF    2. Dispense 2 liters of water through the Hot Tank to cool the water temperature in  the Hot Tank and avoid burns.           WARNING!  VERY HOT WATER CAN BURN OR SCALD. ...
  • Page 62 9. Unplug the UV Lamp and remove UV Lamp.    10. Remover the UV indicator sensor from the Quartz Sleeve retaining nut.    11. Unscrew the Quartz Sleeve retaining nut and remove Quartz Sleeve to vent the cold circuit.    12. Remove the Cold Tank drain line cap and drain the 2 liters into a container.      13. Remove the pre‐chill drain line cap and drain the 1 liter of water from the pre‐chill chamber and the  booster pump circuit.    14. A total of 3 liters of cold still water will drain from the unit.    Drain the Sparkling Water Chamber    15. Dispense all sparkling water out of the Sparkling Chamber through the faucet of the WL500 Water  Treatment System into the drip tray (holds 1.5 liters) or other container until only CO  gas is  dispensed.  The Sparkling Chamber holds a maximum of 1 liter of water.    16. Release the dispense button and let the booster pump cycle on to inject any remaining water from  the still water feed circuit and pump into the Sparkling Tank for 30 seconds.    17. Dispense sparkling water to clear any remaining water from the Sparkling Tank through the faucet  until only CO  gas is coming out.     GREEN                      RED    18. Turn off the RED Power switch (O=OFF).  This will kill power to the pump  ensuring that no water is injected back into the Sparkling Chamber and shut ...
  • Page 63 25. Drain 1.6 liters of hot water into suitable container.      Reassemble the Unit    26. Reinstall all drain caps.    27. Reinstall the Quartz Sleeve.    28. Reinstall the Quartz Sleeve Retaining Cap firmly.  Do not over tighten O‐ring seal.    29. Reinstall the UV Lamp.  Be careful not to touch UV Lamp surface as oils from your hands can cause  dark spots and impact the performance of the system.  Always wipe off lamp with alcohol wipe or  equivalent if needed.  Ensure lamp wires are not crossed and never force lamp into the sleeve to  avoid damage.    30. Reconnect UV Lamp.    31. Reinstall the UV sensor into the Retaining Cap.      32. Reinstall top cover and the UV Lamp cover plate.    33. Ensure the front display PCB ribbon connectors are securely attached and completely seated to  avoid problems.    34. Close front Hatch Panel and tighten the locking screw to secure.      WL500 Manual                                                                             Page 63   Revision 4‐10‐2019 ...
  • Page 64 WL500 QUICK START INSTALLATION GUIDE    Critical Requirements    Establish Food Grade CO  Supply and regulate to 35‐45 psi. This will produce optimum sparkling water     and CO concentration when combined with 46 F degree or cooler water.  Regulate the Water Supply to  2  40–60 psi.  ALWAYS use a pressure regulator and leak protection when installing units.     1) Prior to setting up the WL500 Water Treatment System machine, open the knock‐out on the back  panel of the base cabinet to allow routing of the CO pipe if using the base cabinet.   2    2) Unpack the WL500 and set on top of countertop or base cabinet so that the side panels of the  machine align with the side panels of the base cabinet.    3) Secure the WL500 to the base cabinet using the bolt provided in the  base cabinet.  Note that the connection point is accessed from the  underside of the base cabinet.   The bolt threads into the WL500 base  plate and locks the unit together.     4) Install a regulator onto a 5lb or 10lb food grade CO  bottle and purge  some gas from the bottle.  Regulate output to 35‐45 psi.  Close the  regulator outlet valve, and secure in place.     5) Route a ¼‐inch pipe from the outlet fitting of the CO regulator  2 ...
  • Page 65   WARNING!  USE ONLY Waterlogic SUPPLIED POWER CORD (WLCP PN 10‐3007).  Locate system  within 5 feet of power supply.  Never use an extension cord or adapter.  Do not use a damaged  power cord or plug.  Keep power cord out of heavy traffic areas and away from heat sources.  Do  not, under any circumstances, remove ground prong or alter the power cord.  Never pull the power  plug from the outlet with a wet hand or allow the plug to get wet.  Failure to use the supplied power  cord will void UL Certification and Warranty.      CAUTION!  INDOOR USE ONLY.   Never exposed to direct sunlight, heat sources, or ambient air  temperature above 97°F (36°C) or below 50°F (10°C).  Install indoors and keep unit away from  excessive humidity.  Never expose to freezing temperatures.  Ensure there is adequate clearance  around the unit to allow refrigeration system condenser to dissipate heat.  Warmer environments  require more clearance around the unit.  Minimum clearance around all surfaces of the machine is 2‐ inches.  Installs where the ambient temperature exceeds 80°F, require a minimum of 4‐inches  clearance for proper heat dissipation and efficient operation.       CAUTION!  USE A WATER PRESSURE REGULATOR. Waterlogic will not be responsible for injury or  damage caused by excessive water pressure.  Operating pressure must be 40 psi to 60 psi.  Be aware  any of potential pressure surges caused by building/municipal pumping stations.      CAUTION!  USE UV STABILIZED SUPPLY LINES.  Feed the unit with a potable ambient or cold‐water  supply only.  Feed water over 105° F (40°C) can damage the treatment components.  Water block  devices and external leak detectors are strongly recommended. Locate the unit as close to the water  supply and the electrical connections as possible.             WARNING!  HIGH PRESSURE CO  GAS.  Use/Handle in accordance with all safety standards.           WARNING!  STORE UNIT EMPTY.  ALWAYS SANITIZE BEFORE USE.  The unit must be completely drained and sealed before storing to avoid stagnation and reduce  microbiological contamination (potential bacterial growth).  Sanitize before use to eliminate any  potential microbiological contaminates     WL500 Water Treatment System can be combined with RO Filtration Systems.  RO will require a drain  connection.  Refer to all applicable plumbing codes and standards in your area for these requirements  (air gap connections and back flow prevention may be necessary).  WL500 Manual                                                                             Page 65   Revision 4‐10‐2019 ...
  • Page 66 Pre‐installation and sanitization procedures as prescribed in this manual must be performed before  installing the WL500 Water Treatment System.    Always install indoors and place the Waterlogic WL500 Water Treatment System on a firm, flat and  stable surface.        Attach the water supply line to the 1/4” feed water inlet bulkhead fitting on the back of the unit.   Waterlogic requires the use of a water pressure regulator.  Water feed pressure must be between 40‐ 60 psi.   Turn on the water supply and check for leaks.         GREEN                      RED    1. Check to ensure that both the RED Power Switch and the GREEN Heater /  Compressor switches are in the O=OFF position.  NOTE:  Switches have internal  LED that illuminates when placed in I=ON position.     2. Connect the power cord to the back of the Waterlogic WL500 Water  Treatment System and to a 120 Volt supply.       GREEN                      RED  3. Turn the RED Power Switch to I=ON position.             CAUTION!  NEVER TURN ON HEATER BEFORE FILLING HOT TANK.  GREEN Compressor/Heater Switch must be in the O=OFF position while the Hot  Tank is empty.  Damage could occur within one minute and the overload (high  limit) will require manual reset if heater is turned on with an empty Hot Tank.     4. Prime the Cold Circuit.  Holding a container under the dispensing faucet, press and hold the main  dispensing button until a continuous flow of water is obtained.  Once a continuous flow is obtained,  release the dispensing button.  Cold Tanks are now full.      5. Prime the Hot Tank.  Holding a container under the dispensing faucet, press the hot button (Button  3) followed by the main dispensing button until a continuous flow of water is obtained.  Once a  continuous flow is obtained, release the main dispensing button.  Hot Tank is now full.    ...
  • Page 67 9. Move the Waterlogic WL500 Water Treatment System into its final operating position.  Be sure that  a minimum of 2” clearance is maintained around both the sides and the back of the unit.  This is  important to allow proper airflow and heat exchange of refrigeration system.     10. Level unit using the adjustable feet to level if necessary.  Never install on incline.      GREEN                      RED    11. Turn the GREEN Heater / Compressor switch on I=ON.  Check for fan and  Compressor operation.  This can be done by listening to the unit when the  GREEN Heater / Compressor switch on I=ON and/or is turned on and/or visibly  checking the fan.  All tanks must be full.    12. Change the Temp Display to Ranging to monitor the cold and hot water temperatures in the tanks.   After 15 minutes, the cold‐water should drop approximately one degree every 1‐1/2 minutes.  The  hot water will heat rapidly and should reach set point in 10 minutes.    13. When the unit has reached its Hot Temp Set Point, the heater will cycle off.   When the unit has  reached its Cold Temp Set Point Temperature, the Compressor will cycle off.    14. Once the unit is at the target temperature(s), sample the water to ensure water meets expectations  and additional rinsing or adjustment is not required.     15. Regenerate the sparkling water by dispensing until a continuous flow of gas is obtained and release  to let the pump inject cold‐water (below 7.7°C / 46° F) into the chamber.  This provides Premium  Sparkling Water.  Sample the sparkling water to ensure it meets expectation.     16. Check the unit for any leaks.  External Leak Protection is always recommended.    17. If you choose, reconfigure the temperature display back to the original Static setting and   Verify Default Program Settings (refer to Programming Instructions): ...
  • Page 68 Enter Programming Mode    Menu  Options  Brief Description  Timer for Filters Life set at 3 months.  Displays “Change Filters” after 3  3 months  months  Timer for Filters Life set at 6 months.  Displays “Change Filters” after 6  6 months  Filters  months  Timer  Timer for Filters Life set at 9 months.  Displays “Change Filters” after 9  9 months  months  None  Timer for Filters Life is turned off.  Default is None  Indicates amount of water flowed(gal/liters) or days elapsed since last  Filters  00 DAYS  reset  Life   Ensure Filters Timer is enabled and Filters Life indicates DAYS  Resets the Filters Life to zero.  Confirm by selecting Button 3 (Hot) to  Reset  OK?  Save and Exit.  This resets the timer.       2. Display indicates “Drip Tray Full” ‐ Continuous Alarm Will Sound    Action  Empty and clean the drip tray.  Make sure the metal clips on the tray are clean.        WL500 Manual                                                                             Page 68   Revision 4‐10‐2019 ...
  • Page 69 GREEN  Check that the GREEN Heater and Compressor switch is  No power or refrigeration  on.  elements    Turn GREEN Heater and Compressor Switch on.    I = ON  Tank has run out of cold‐ water.    Wait for Cold Tank to chill water to temperature prior to dispensing    more cold‐water.  Cold Tank capacity is 4 liters    for Tower and 2 liters for  A greater capacity of Waterlogic Water Systems is available.  Counter Top.  Check continuity of thermostat with multimeter.  Replace thermostat  Cold‐Water Thermostat  as required.  Run Compressor for at least ten minutes.  If condenser is not warm  Refrigerant has run out  then refill the refrigerant.  Compressor problem  If Compressor is not running, repair or replacement is needed.    4. Display indicates “Hot Fault”      Action  Indicates a Hot Tank sensor fault.  Check to make sure the sensor is plugged in to the main PCB  properly.          WL500 Manual                                                                             Page 69   Revision 4‐10‐2019 ...
  • Page 70   Enabling the Filters Timer disables the Flow Counter.  Always check the  programming first to see if the Filters Life is shown in Days or Months  instead of Gallons or Liters to validate the selection.  Filters Timer should  always be enabled and set and saved to NONE.  Filters Life should always  be displayed in time (Days or Months) instead of flow (Gallons or Liters).  The Sparkling Injection  A “No Water Supply Fault” will occur if the Sparkling Water Injection  Pump Runs Too Long  Pump runs for 10 minutes.  This is a safety feature to prevent the Pump  from being damaged.   When operating properly, it should take about 1‐ 1/2 minutes for the Pump to inject enough water to completely fill the 1  liter Sparkling Chamber.  This can occur when there is not adequate  supply of water to fill the Sparkling Chamber, or the pump cannot  overcome the CO  pressure in the Sparkling Chamber, or there is not a  proper ground signal from the level sensor in the Sparkling Chamber to  shut off the pump once it is filled.     The water supply is not adequate.  Ensure proper water supply to the  cold circuit.  Remember that the WL500 Water Treatment System  contains two Carbon Filters inside the Front Access Panel.  The first  Filters head has a valve that will shut off water supply when the  Filters is removed. The water supply has been shut off or is not  adequate.  Always ensure there is 40‐60 psi and 1.5 Liters/Min (0.4  gal/min) water supply.    The internal Filters is removed and the Safety Valve in the first  Filters head is stopping water supply.    The Filters have become fouled and plugged, thereby starving  the pump of make‐up water.  Change the Filters.    III. There is not adequate water supply to the unit    The drip tray is full and/or a Solenoid Valve is not opening to  allow water to pass.     The CO  gas pressure is above 45 psi, and the Booster Pump has ...
  • Page 71  The Level Sensor has become fouled and no longer senses water  ground, thereby dead‐heading the booster pump on the full tank.  Remove the probe and clean with file or sand paper to provide  proper ground.     The pump is faulty or not producing enough pressure to fill the  carbonator.  Check pump to ensure output pressure is above 80 psi.   If not, replace pump.  Water supply has been shut  Turn water supply on  off  Too much water pressure.   The correct input water pressure is critical to the performance of the unit  Recommend 40‐60 psi for  to allow solenoids to open.  the WL500 Water    Treatment System to  Check water pressure at the inlet bulkhead with a water pressure gauge.  operate properly.    Additional method of verification is to turn off water to unit and press  the dispense button.  Does the solenoid open without water pressure to  the unit?  Listen for solenoid to activate (not just the dispense button  “click”)    Adjust water pressure to 40‐60 psi.  The Filters have become  Change Filters  fouled and plugged,  thereby starving the  booster pump of make‐up  water  The CO  gas pressure is  Turn CO gas pressure to 45 psi, verify with pressure regulator.  2 ...
  • Page 72   1. Ensure plastic sleeve is in place and properly seated.  There    should be approximately ¼” of probe sticking out the end.      2. Ensure O‐ring is in place.    3. Tip should be clean and in good condition and the Level Probe is    installed          DANGER!  If incorrectly installed, operated, or maintained, this    product can cause death or sever injury.  All individuals who    install, operate or maintain the WL500 Water Treatment System    should be trained in its proper use, warned of its dangers, and    should read the entire product manual before attempting to  install, operate or maintain.     WARNING!  HIGH PRESSURE C0  Disconnect WL500 Water  2.  Treatment System from power.  Shut off C0 to isolate Sparkling  2  Chamber and relieve pressure in Tank through the Pressure Relief  Valve before removing the Probe for inspection.            CAUTION!  RIBBON CONNECTORS MUST BE FULLY ENGAGED.   Ensure Ribbon Connectors are properly engaged and fully seated ...
  • Page 73 7. Display is Intermittent       Possible Reason  Solution  Verify ribbon connectors are  properly engaged and fully  seated in front PCB (Printed  Ribbon Connectors  Circuit Board) to avoid  are not fully engaged  intermittent / connectivity issues  anytime the front Hatch Panel is  accessed.    WL500 Manual                                                                             Page 73   Revision 4‐10‐2019 ...
  • Page 74: Sparkling Water Troubleshooting

     SPARKLING WATER TROUBLESHOOTING INDEX    1. Sparkling is Weak, Low Carbonation      1. Sparkling is Weak, Low Carbonation    Waterlogic WL500 Water Treatment System produces Premium Sparkling Water which is made in a  batch and contains a fine, dense carbonation as compared to other “soda water” products in the  market.  Optimal sparkling water is generated with cold‐water and food grade CO  set at 43 psi (3 Bar).       Waterlogic Sparkling Water is very similar to Perrier and Pellegrino Sparkling Water.  Temperature of  the water in the WL500 Water Treatment System has the largest impact on the taste and carbonation  levels and the Cold Tank must below 46°F (prefer 41°F) before injecting water into the Sparkling  Chamber (carbonator) to produce proper results.            WARNING!  Do not turn up CO  pressure beyond recommended setting of 43psi attempting to  produce stronger carbonation level as the injection pump used in the carbonator will not be able to  compress gas in the Sparkling Chamber and a "No Water Supply" error will result.       The temperature inside the Cold Tank can be displayed on the LCD screen by setting the temp display  function to "Ranging" mode.  See the programming section to adjust this setting.    Setting Customer Sparkling Water Expectation    Please ensure your customers expect a Premium Sparkling Water similar to Perrier and Pellegrino  versus a Soda Water or Soda Club type of product before installing a WL500 Water Treatment  System.  The WL500 Water Treatment System sparkling water will not meet user's expectations if they  expect a large bubble soda stream type of product.       A blind taste test using Pellegrino/Perrier is a great way to demonstrate the expectations and quality of  the Waterlogic Premium Sparkling Water.  Open two bottles and fill one with cold Waterlogic Sparkling  Water from a freshly regenerated tank operating at optimum conditions.  Recap and mark the bottles  accordingly.  Please ensure the bottles are sampled at the same temperature you can refrigerate them  for later use and comparison.  Most users will prefer the great taste of the Waterlogic Sparkling Water  at a fraction of the cost of the bottled counterparts. ...
  • Page 75 Always allow the WL500 Water Treatment System to chill the cold‐water to set point temperature  (allow up to 45 minutes to chill all 4 liters of water in the unit) before sampling the sparkling water.  You  or your customer must "Regenerate" the Sparkling Tank by completely dispensing the initial batch of 0.8  liters of product from the Sparkling Chamber once the unit has chilled to set point of 41F.  The initial  batch of sparkling product will be flat because it was injected into the carbonator (Sparkling Chamber)  at ambient temperature when initiating the WL500 Water Treatment System.   Always remember that  the water in the UV treated Cold Tank needs to be cold (below 46° F) to make premium good tasting  sparkling water.      Do not set the cold temperature set point below 41°F or you increase the risk freezing the Sparkling  Tank.   The Thermistor that controls the refrigeration system is located in the well in the UV Cold Tank  and does not monitor water temperature in the Sparkling Tank (carbonator).  The refrigeration system  chills both tanks simultaneously and is either on/off based up on feedback from the  Thermistor.  Frequent or continuous use of the cold still water side results in refrigeration system  running and continuously chilling the sparkling product in the carbonator to the point at or below  freezing.  This can result in a frozen Sparkling Tank and sparkling product will not be dispensed even  with proper gas supply.           WL500 Manual                                                                             Page 75   Revision 4‐10‐2019 ...
  • Page 76: Electrical Supply Troubleshooting - Quick Guide

    3. Short Circuit  4. Ground Fault  5. Ground Fault Circuit Interrupter (GFCI) Tripping    SAFETY PRECAUTIONS    Basic safety precautions should be followed, including the following:    DANGER!  If incorrectly installed, operated or maintained, this product can cause death or severe  injury. Those who install, operate, or maintain this product should be trained in its proper use,  warned of its dangers, and familiar with the tools and equipment before attempting to install,  operate, or maintain the product.      DANGER! ELECTRICAL SHOCK HAZARD.  Always unplug or isolate from power supply prior to servicing  equipment to prevent electrical shock.  Only authorized technicians familiar with electrical safety  should attempt this advanced troubleshooting.    Contact Waterlogic if you need any assistance or help finding an authorized service representative.    Power Supply Requirements and General Guidelines     Ensure Power Supply is 120V 60Hz AC with a minimum of 15‐amp service.      No other equipment is to be connected to the outlet.   Use only Waterlogic Supplied Power Cord.   Never Use Extension Cords.      Typical Duplex Outlet is wired to carry 15 amps.  Waterlogic units will draw approximately 6‐7 amps at  full load.  However, the current can spike up when the Compressor first starts and the heater is on.    Always use a minimum 15‐amp service to supply a Waterlogic unit.         WL500 Manual                                                                             Page 76   Revision 4‐10‐2019 ...
  • Page 77   2. Circuit Overload    The circuit overloading is the most common reason your circuit breaker is tripping.    That means you’re running too many heavy power consuming devices at the same time on the same  circuit.  Ensure adequate service and that no other devices are tied to the same circuit.    3. Short Circuit    A short circuit happens when a “hot” wire (black) touches another hot wire or touches a “neutral”  wire (white) in one of your outlets or devices connected to it.    When these two wires touch, a large amount of current flows, creating more heat than the circuit  can handle, so it will trip the circuit breaker.      You can identify the root of a short circuit by visually checking for discoloration of components from  excessive heat caused by the short.  You can perform continuity or resistance checks between  components to verify short circuits.  Always replace any component and associated parts that have  been exposed to a strain of a short circuit.  All wires and connectors should be replaced to avoid  failures.    4. Ground Fault    A ground fault happens when a hot wire (black) touches the ground wire (bare copper or green) on  the side of a metal outlet box which is connected to the ground wire.    Just like a short circuit, you need to find the root cause and repair anything looks out of the ordinary  within the circuit or equipment.        WL500 Manual                                                                             Page 77   Revision 4‐10‐2019 ...
  • Page 78   Attempt to isolate the fault or stray current by using the following methodology:     1. Plug into properly functioning GFCI with both switches in Off (O) position.     GREEN                      RED    1.1. GFCI Fault?  Yes.    Identify stray current and/or inspect and replace faulty component(s)   up to the Main Power Switch (Red):   Power cord   Power Socket    Fuse Holder Assembly     1.2. GFCI Does Not Fault.  Go to step 2.    2. Turn On Main Power (Red) Switch.      GREEN                      RED  Toggle to the On position (I=ON).   Switch should light to indicate  power on.   2.1. GFCI Fault?  Yes.  Go to Step 3.  2.2. GFCI Does Not Fault.  Go to Step 5.    Isolate or disconnect unit from power and open Top Cover to access  main Printed Circuit Board (PCB).      3. Isolate (disconnect) Main PCB   WL500 Manual                                                                             Page 78   Revision 4‐10‐2019 ...
  • Page 79 4.1. Reset the GFCI and cycle power back ON to   check the unit with UV system isolated.    4.2. GFCI Does Not Fault:  Stray current isolated to UV.  Check and Replace faulty UV component(s)   UV Ballast   UV Lamp   UV Harness    4.3. GFCI Still Faults…go to step 5.       GREEN                      RED  5. Turn On Heater/Compressor Power (Green) Switch to (I) Position.   Switch should light to indicate power on.     5.1. GFCI Faults? Go to Step 6  5.2. GFCI Does Not Fault.  Indicates problem is resolved.  Ensure Full  Machine Function including Compressor and heater are  operational before completing work.    6. Isolate (disconnect) the Heater Circuit    Unplug HEATER white connector with two red  wires from PCB.     6.1. Reset the GFCI and cycle power back on to  check the unit with heater circuit isolated.       WL500 Manual                                                                             Page 79   Revision 4‐10‐2019 ...
  • Page 80   7.1. Reset the GFCI and cycle power back on to   check the unit with Compressor circuit isolated.     7.2. GFCI Does Not Fault:  Stray Current is in refrigeration circuit.  Go to Step 8.    8. Isolate (disconnect) Fan.  Unplug Fan from Compressor Feed Wire.    8.1. Reconnect the Compressor to the Main PCB    8.2.  Disconnect Fan from Compressor Lead   Access fan connector by removing left side Panel.      8.3. Check the Circuit with Fan isolated.    GFCI Does Not Fault.  Replace Fan.      GFCI Still Faults, Stray Current in Compressor.    8.4. Check and Replace Faulty Component(s)   Cold Thermostat   Compressor Starter    Compressor      WL500 Manual                                                                             Page 80   Revision 4‐10‐2019 ...
  • Page 81: Dispense Troubleshooting

    1. Unit is dispensing water intermittently / irregularly  2. Run‐On  3. Low Flow of Water    1. Unit is dispensing water intermittently / irregularly      Possible Reason  Solution  Verify ribbon connectors are properly engaged and fully seated in  Ribbon Connectors are not  front PCB (Printed Circuit Board) to avoid intermittent /  fully engaged  connectivity issues anytime the front Hatch Panel is accessed.    Too much water pressure.   The correct input water pressure is critical to the performance of  Recommend 40‐60 psi for the  the unit to allow solenoids to open.  WL500 Water Treatment    System to operate properly.  Check water pressure at the inlet bulkhead with a water pressure  gauge.    Additional method of verification is to turn off water to unit and  press the dispense button.  Does the solenoid open without water  pressure to the unit?  Listen for solenoid to activate (not just the  dispense button “click”)    Adjust water pressure to 40‐60 psi.        WL500 Manual                                                                             Page 81   Revision 4‐10‐2019 ...
  • Page 82 32  20  92  1.956217  2  Pressure measured at inlet line to unit.  Static with unit closed.  Dynamic with unit dispensing cold‐ water.  No Filters were installed in unit.    3. Low Flow of Water – Rated Service Flow is 1.89 Liters (0.5 gallons) per Minute     Possible Reason  Solution  Rated Flow Rate is 1.89 Liters (0.5 gallons) per minute.  Check flow  Determine Flow of  rate by dispensing into a container to measure for one minute and  Water   measure the amount of water that was dispensed.    Feed lines can restrict flow if run long distances from the supply.  It  Feed Lines too small  may be necessary to increase the supply line (e.g., use 3/8” feed line  vs. ¼”.  Elbows and turns in  Minimize elbows and turns in the feed line.  the feed line  Filters with high pressure drop due to fouling or just by design.   Filters  Change filters more frequently or go to higher micron size filter for  local water conditions.  Follow flow path to ensure there are no undiscovered restrictions due  Restrictions  to debris or malfunctioning valves, including the supply valve at the  source.  Add a booster pump to the supply line if the feed is slower than  Booster Pump  needed.    WL500 Manual                                                                             Page 82   Revision 4‐10‐2019 ...
