WaterLogic WL3FW FIREWALL Manual page 29

N
Description
O
WL3 Mini Top Cover - Silver
1
WL3 Mini Top Cover - Black
Back Panel Mini Silver
2
Back Panel Mini Black
JG Bulkhead Connector Union 1/4" * 1/4"(PI1208S)
3
EMI Filter - 10A 080.01001.00
4
Fuse Holder and Fuse 220/ 10A with One Wire
5
Fuse Holder and Fuse 120v/15A with One Wire.
Power Switch(Red)-No back lights
6
7 Switch - Heater/Compressor (Green)
Thermostat
8
9 JG Bulkhead Connector Union 1/4" * 1/4"(PI1208S)
10 JG Equal Elbow Connector 1/4" (PI0308S)
Assembly FT-0035-IL-WLT
11
Cartridge FT-0038-WLT
Assembly FT-0034-IL-WLT
11
Cartridge FT-0036-WLT
12 JG Equal Elbow Connector 1/4" (PI0308S)
2,8" Filter Clip
13
14 FILTER BKT for Mini universal as ST-8089
Power Transformer 120v/60Hz
15 Power Transformer 220v/50Hz
Power Transformer 220v/50Hz
UV 15W 220V/50Hz Electronic Ballast
16
UV 15W 120V/60Hz Electronic Ballast
17 Transformer Ballast Bracket
JG Equal Elbow Connector 1/4" (PI0308S)
18
19 Water Pressure Pump (DC24) Daehwa
JG Equal Elbow Connector 1/4" (PI0308S)
20
Pump Bracket Mini
21
22 UV Lamp Retaining Threaded Nut (Ugrade of PL-1047)
23 Stainless Cap for WL3 Tank
24 O-ring (Black Quartz Sleeve)
WL3 FW Manual

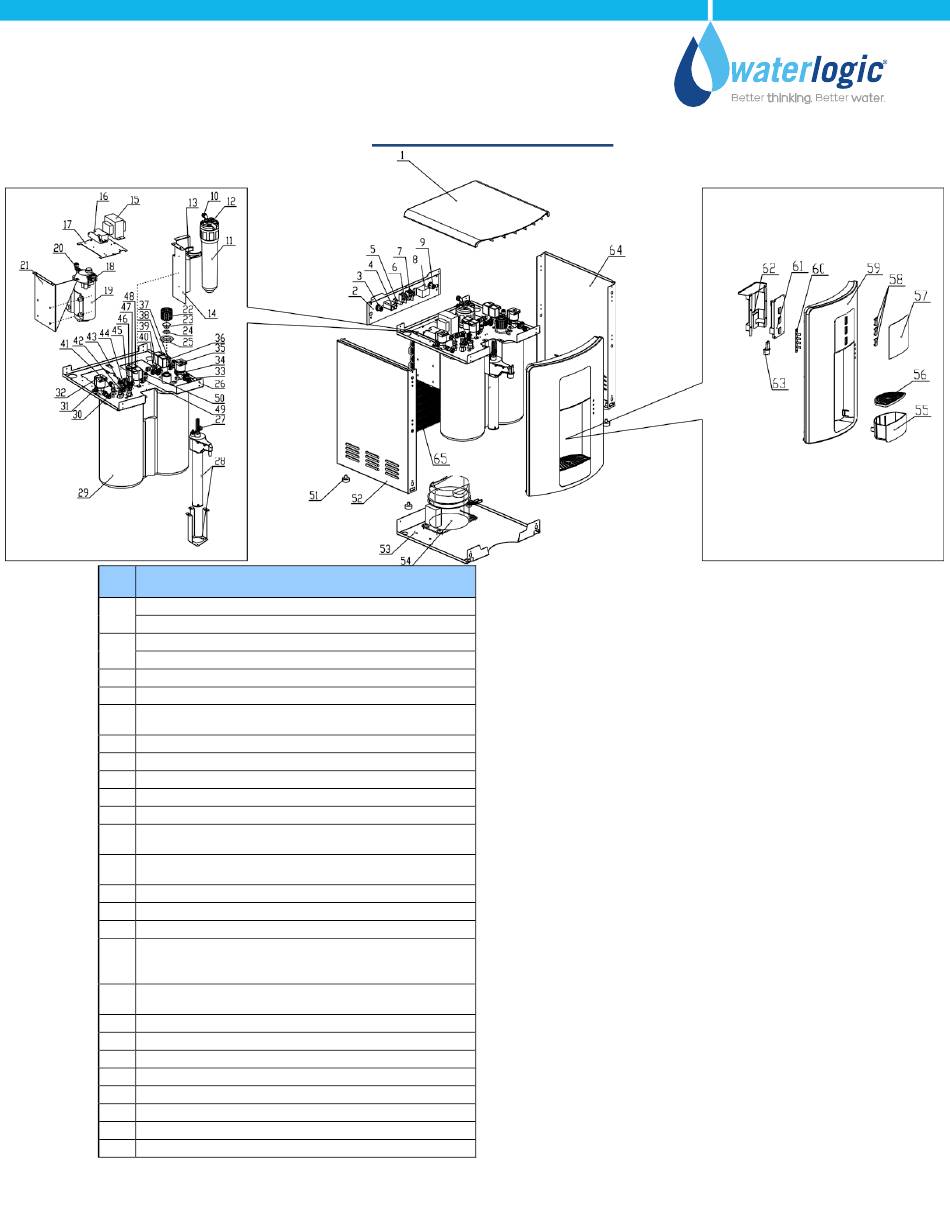

WL3 FW MINI DRAWING
Page 25 - Revision: EU 17-09-2020
