WaterLogic WL3FW FIREWALL Manual page 28

NO Description
WL3 Mini Top Cover - Silver
1
WL3 Mini Top Cover - Black
2 WL3 UI (PCB) Label CAS
3 WL3 LED PCB
WL3 Front Upper Panel Black
WL3 Front upper panel Black
4
WL3 Front upper panel Silver
WL3 Drip Tray Grill Black
WL3 Drip tray grill -Silver-Biocote added.
5
WL3 Drip tray grill - Black-Biocote added.
WL3 Drip Tray Body Black with Firewall Logo
6 WL3 new drip tray body for WLG Silver-WL with Biocote WL LOGO
WL3 drip tray body Black PHS LOGO -WL with Biocote
7 Unit Control Rubber Feet
Mini silver panel Left
8
Side Panel-Left MI-BK-EGI1.2t
9 JG Bulkhead Connector Union 1/4" * 1/4"(PI1208S)
10 Thermostat
11 Switch - Heater/Compressor (Green)
12 Power Switch(Red)-No back lights
Fuse Holder and Fuse 220/ 10A with One Wire
13
Fuse Holder and Fuse 120v/15A with One Wire.
14 EMI Filter - 10A 080.01001.00
15 JG Bulkhead Connector Union 1/4" * 1/4"(PI1208S)
Back Panel Mini Silver
16
Back Panel Mini Black
Mini silver panel right
17
Side Panel-Right MI-BK-EGI1.2t
WL3 FW Manual

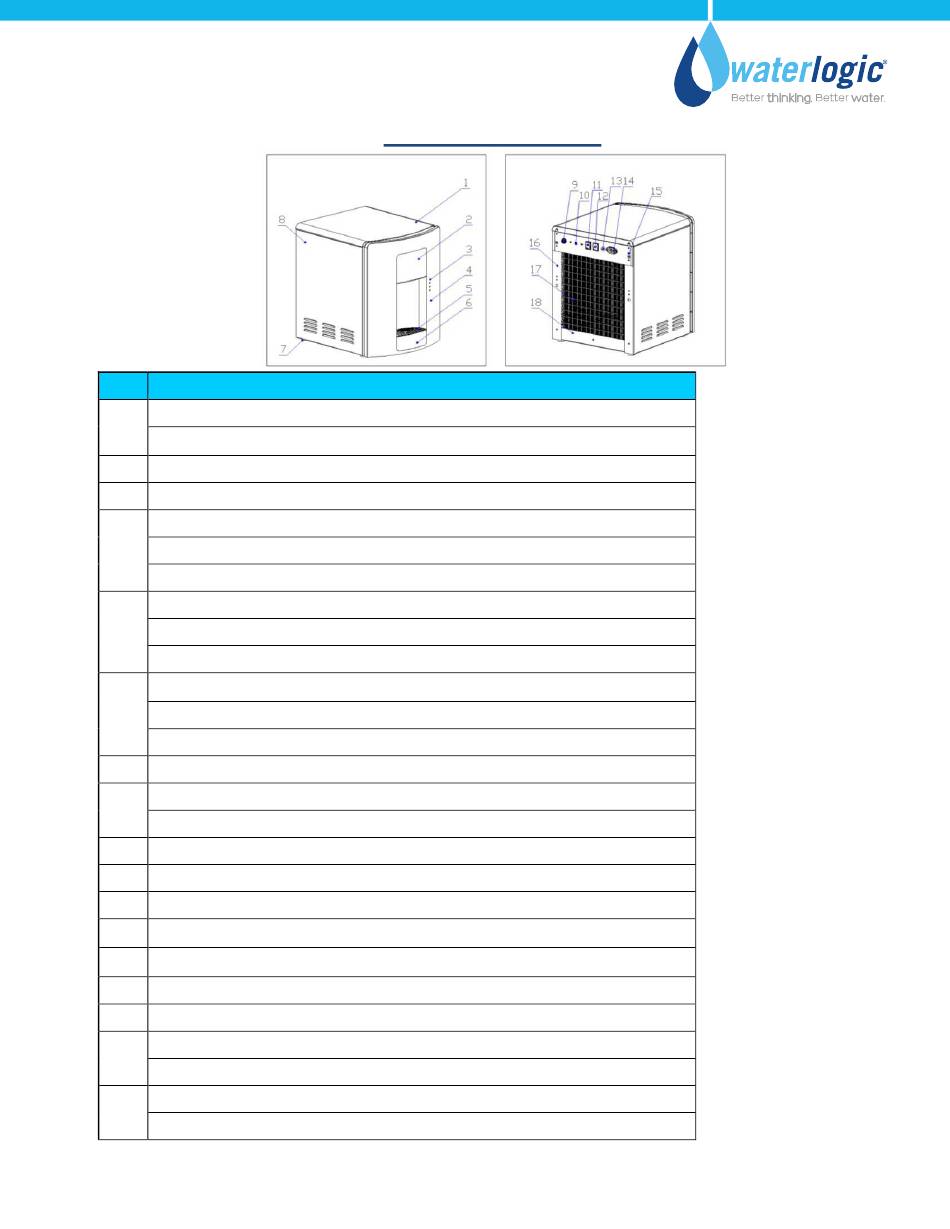

WL3 FW MINI LAYOUT
Page 24 - Revision: EU 17-09-2020
