Typical Applications - Altronix NetWay4E1 Series Installation Manual

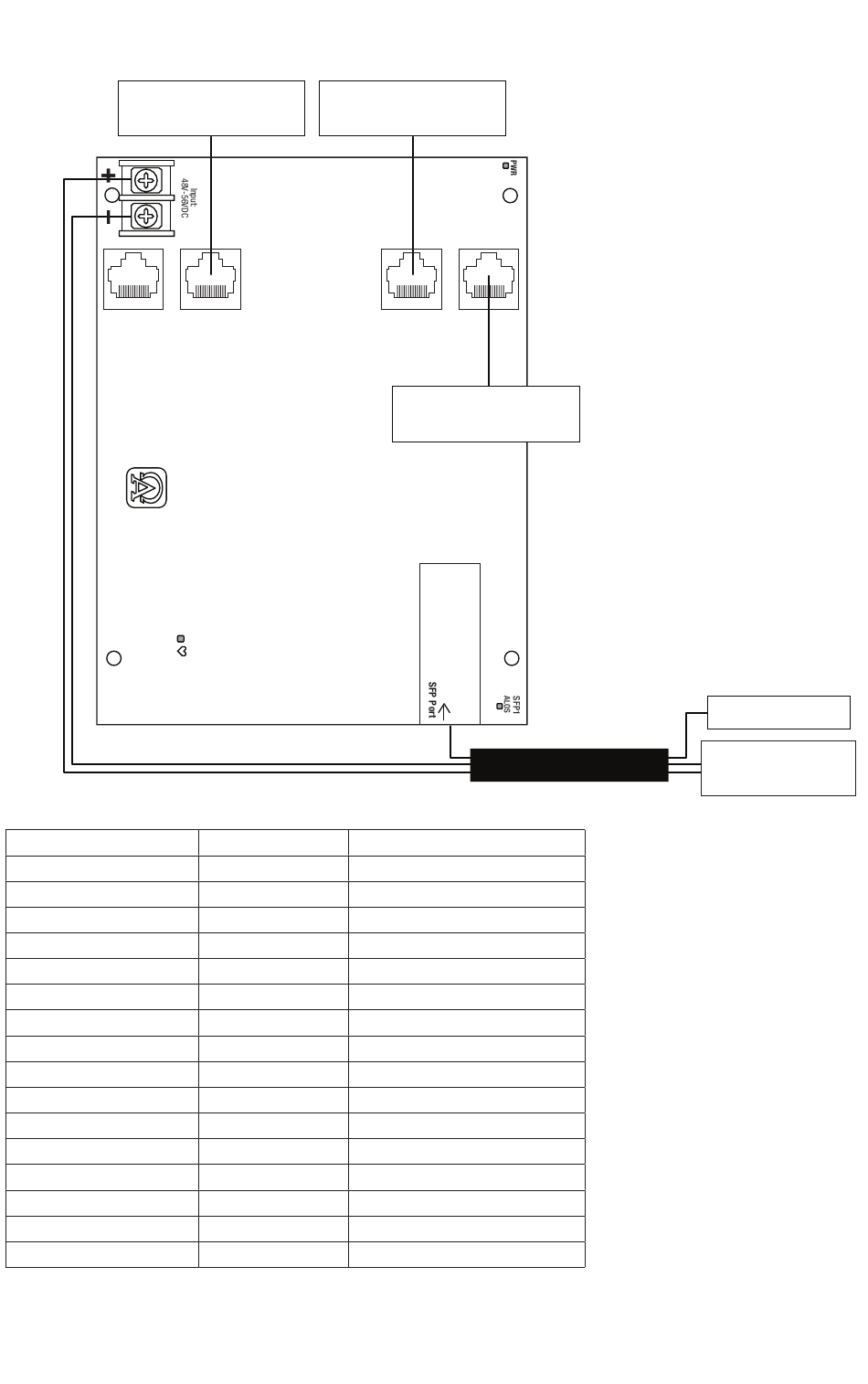

Fig. 2 - NetWay4E1B/NetWay4E1WPN – Typical Application with Hybrid Cable
IP Device
Carefully
(802.3af / 802.3at)
observe
polarity
Power Distance Chart
Power Requirements
15W
30W
45W
60W
75W
90W
105W
120W
15W
30W
45W
60W
75W
90W
105W
120W
Estimated distances are based on starting voltage of 56VDC and accounts for a 10 volt drop.
All distances are per IEEE 802.3at standard for device power requirements of minimum 44VDC and leave an approximate
2 volts for safety and flexibility.
Netway4E1 Series Installation Guide

Typical Applications:

IP Device
(802.3af / 802.3at)
Power Cabling Maximum Distance (ft./m)
12/2
12/2
12/2
12/2
12/2
12/2
12/2
12/2
16/2
16/2
16/2
16/2
16/2
16/2
16/2
16/2
IP Device
(802.3af / 802.3at)
Hybrid Cable
11,162' / 3403m
5,581' / 1702m
3,767 / 1,148m
2,739' / 835m
2,249' / 686m
1,872' / 571m
1,607' / 490m
1,408' / 429m
4,415' / 1,346m
2,207' / 673m
1,490' / 454m
1,083' / 330m
889' / 271m
740' / 226m
635' / 194m
557' / 170m
Fiber Switch
48-56V UL Listed
ITE Power Supply
Carefully observe polarity
