EVM User's Guide: TPS546C25EVM-1PH
TPS546C25EVM-1PH 4V to 18V, 35A, Buck Converter with
PMBus and Telemetry Evaluation Module
Description
The TPS546C25EVM-1PH is a single-phase
buck design using the TPS546C25 device. The
TPS546C25EVM-1PH is designed for a nominal 12V
bus and produces a regulated 1.2V output at up to
35A of load current. The TPS546C25EVM-1PH is
designed to demonstrate operation of the TPS546C25
in a single-phase, low-output voltage application,
while providing a number of test points to evaluate
the performance of the devices. See
Measurement
for more information on single-phase
configuration.
Get Started
1. Order the TPS546C25EVM-1PH on ti.com.
2. Download the Fusion graphical
user interface (GUI) software on
FUSION_DIGITAL_POWER_DESIGNER.
3. Download the
TPS546C25
Features
Regulated 1.2V output up to 35A
output current
SLUUCZ1 – JULY 2024
Submit Document Feedback
Tip and Barrel
data sheet.
steady-state
DC

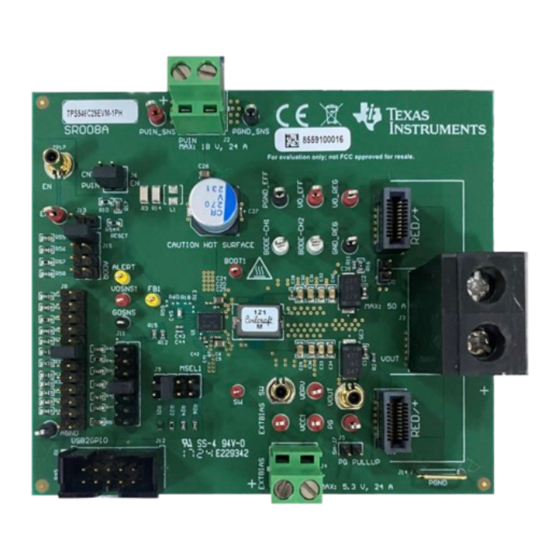

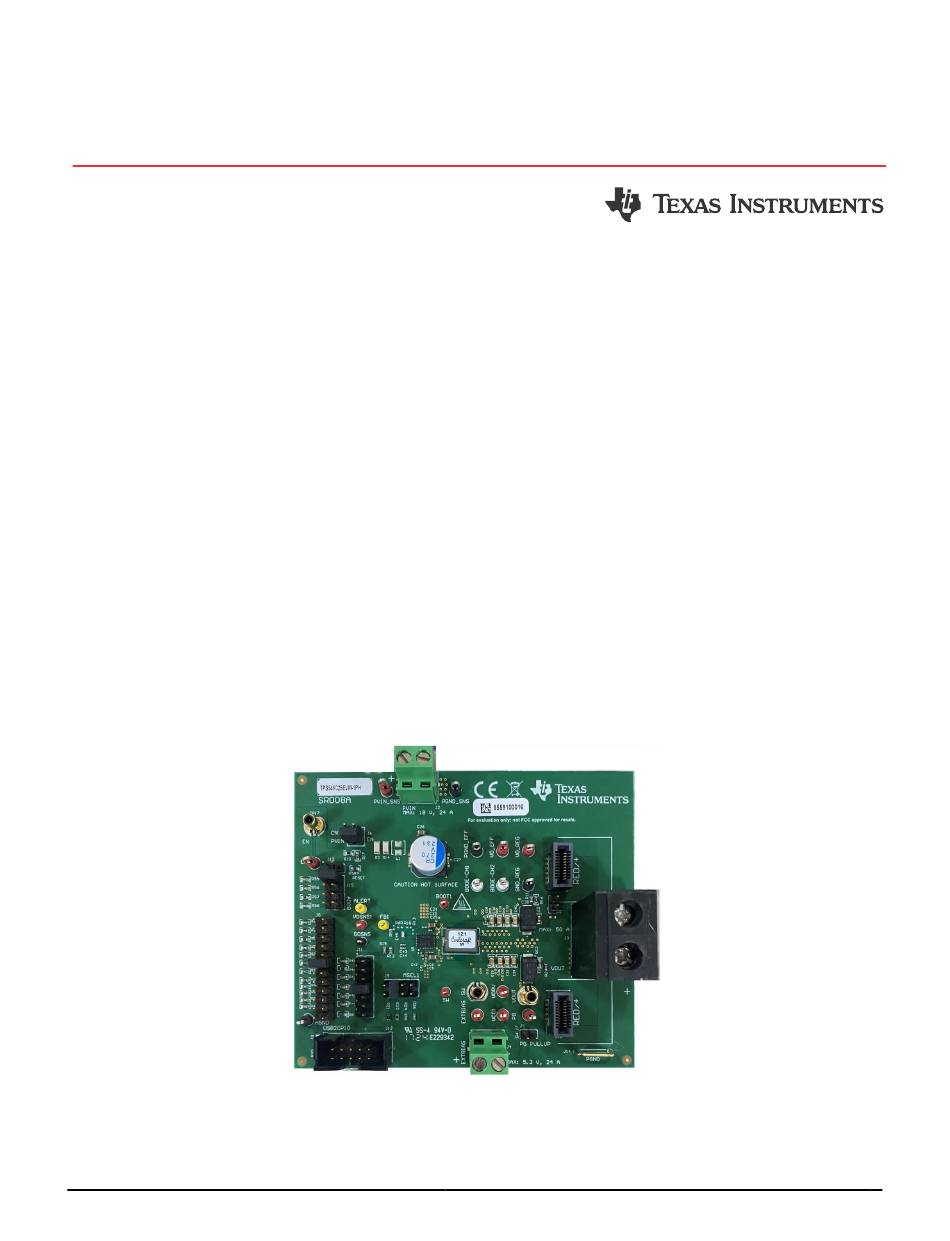

TPS546C25EVM-1PH (Top View)
Copyright © 2024 Texas Instruments Incorporated
The output voltage is marginable and trimmable
using the PMBus interface
– Programmable under-voltage lockout (UVLO),
soft start, and enable through the PMBus
interface
– Programmable overcurrent warning and fault
limits, and programmable response to faults
through the PMBus interface
– Programmable overvoltage and undervoltage
warning, fault limits, and response to faults
through the power management bus (PMBus)
interface
– Programmable turn-on and turn-off delays
Convenient test points for probing critical
waveforms
Applications
Server and cloud-computing POLs
Hardware accelerator
Network interface card
Remote radio unit
Active antenna systems
Data center switch
TPS546C25EVM-1PH 4V to 18V, 35A, Buck Converter with PMBus and
Description
Telemetry Evaluation Module
1
