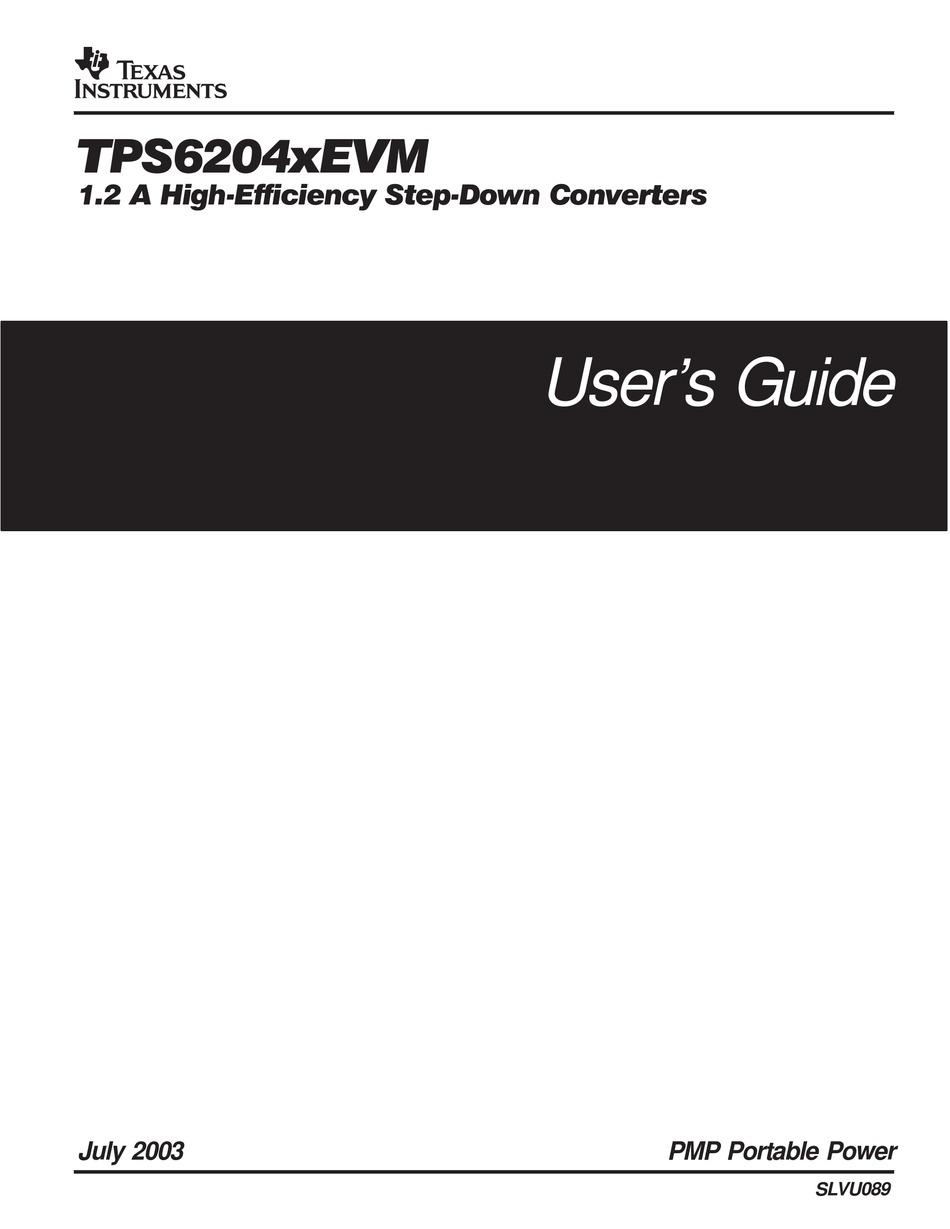

- Page 1 TPS6204xEVM 1.2 A High Efficiency Step Down Converters User’s Guide July 2003 PMP Portable Power SLVU089...
- Page 2 TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products & application solutions:...
- Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
- Page 4 EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright 2003, Texas Instruments Incorporated...
-
Page 5: Read This First
Related Documentation From Texas Instruments Preface Read This First About This Manual This user’s guide describes the operation of the TPS6204xEVM low-power dc- dc evaluation module for high-efficiency, step-down converters. How to Use This Manual This document contains the following chapters: Chapter 1—Introduction... -
Page 7: Table Of Contents
Contents Contents Introduction ..............EVM Ordering Information . -
Page 9: Introduction
Chapter 1 Introduction The Texas Instruments TPS62040 and TPS62046 evaluation modules (EVM) for low-power, high-efficiency, step-down converters help designers evaluate these devices. The EVMs make it possible to evaluate different modes of the devices as well as the device performance. -
Page 10: 1.1 Evm Ordering Information
EVM Ordering Information 1.1 EVM Ordering Information Table 1−1. EVM Ordering Information EVM Number Description TPS62040EVM−229 Adjustable output voltage version set to 1.8 V TPS62046EVM−229 3.3-V fixed output voltage version... -
Page 11: Evaluation With The Tps6204Xevm
Chapter 2 Evaluation With the TPS6204xEVM This chapter details the evaluation process and features of the EVM. For this purpose, a load is connected to the output pins V and GND, which allows the load current to be adjusted between 0 A and 1.2 A. For accurate output voltage and input voltage measurements, it is important to measure the voltage on the input and output voltage terminals with a voltmeter connected directly to the input voltage or output voltage terminals. -
Page 12: Enable (En) Jumper
Enable (EN) Jumper 2.1 Enable (EN) Jumper This jumper is used to enable the device. Connecting the EN pin to ENABLE enables the part. Connecting the EN pin to DISABLE disables the device. 2.2 Mode Selection Jumper This jumper is used to choose between PWM and PFM/PWM modes of operation. -
Page 13: Pcb Layout, Bom, And Schematic
Chapter 3 PCB Layout, BOM, and Schematic As for all switch mode power supplies, the PCB layout is a very important step in the power supply design process. The following figures show the layout for the adjustable and fixed output voltage EVMs. A bill of materials and a schematic are provided. -
Page 14: Slvp229Evm Schematic
SLVP229EVM Schematic 3.1 SLVP229EVM Schematic Figure 3−1 shows the SLVP229 EVM schematic diagram. The bill of materials for the TPS62040EVM and TPS62046EVM is shown in Table 3−1. More details about the design and component selection for the dc-dc converter are found in the data sheet. -
Page 15: Tps62040Evm And Tps62046Evm (Slvp229) Bill Of Materials
TPS62040EVM and TPS62046EVM (SLVP229) Bill of Materials 3.2 TPS62040EVM and TPS62046EVM (SLVP229) Bill of Materials Table 3−1. T PS62040EVM and TPS62046EVM (SLVP229) Bill of Materials QUANTITY DESCRIPTION DESCRIPTION SIZE SIZE PART NUMBER PART NUMBER TPS62040 TPS62046 Capacitor, ceramic, 22 µF, 1210 Murata GRM32DR60J226KA01... -
Page 16: Pcb Layout Of The Tps62040Evm And Tps62046Evm
PCB Layout of the TPS62040EVM and TPS62046EVM 3.3 PCB Layout of the TPS62040EVM and TPS62046EVM Figure 3−2, Figure 3−3, and Figure 3−4 show the layout for the adjustable and fixed output voltage EVMs. Figure 3−2. Component Placement Figure 3−3. Top Layer Figure 3−4.
