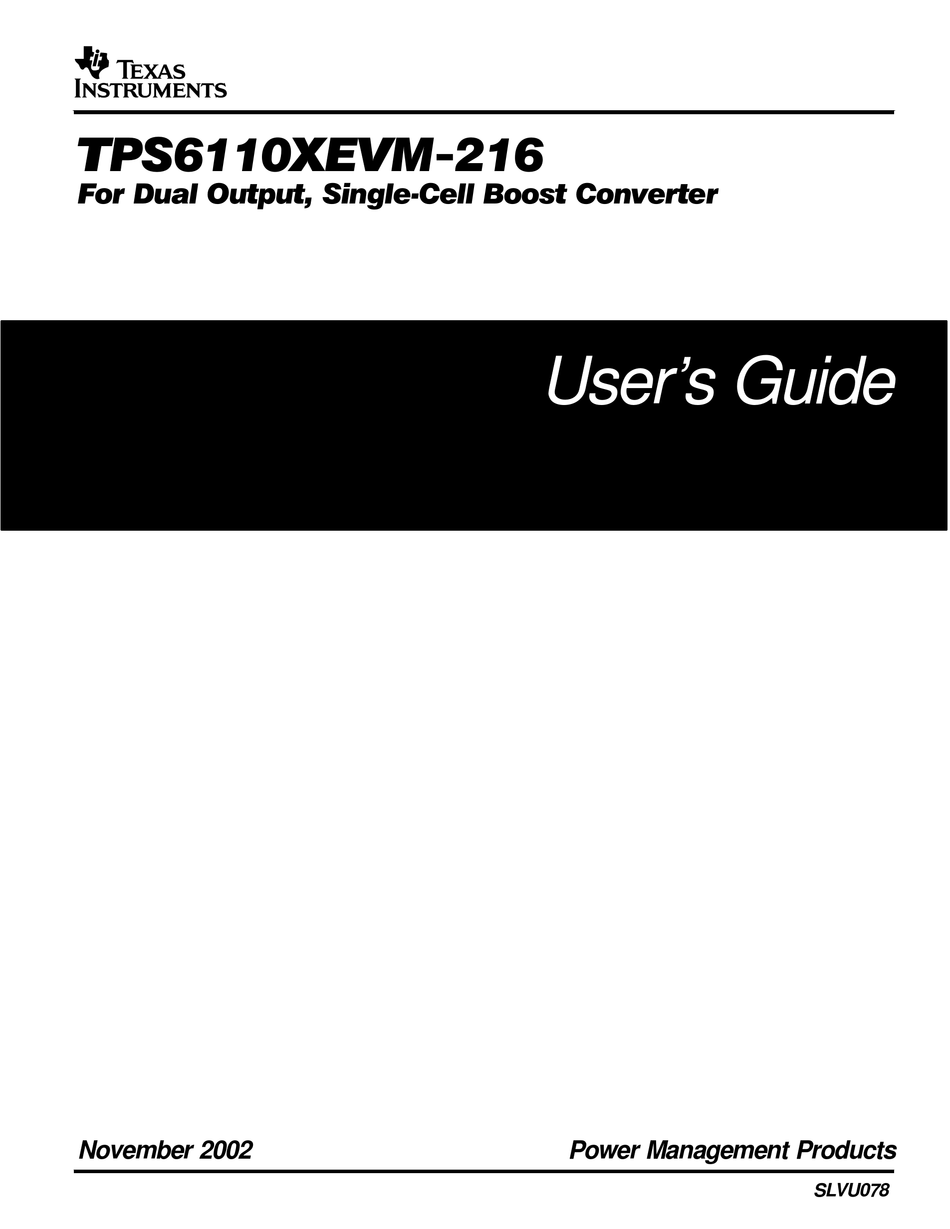

- Page 1 TPS6110XEVM-216 For Dual Output, Single Cell Boost Converter User’s Guide November 2002 Power Management Products SLVU078...
- Page 2 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
- Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
- Page 4 EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright 2002, Texas Instruments Incorporated...
-
Page 5: Table Of Contents
Contents Contents Introduction ..............Setup of the EVMs . - Page 6 Contents...
-
Page 7: Introduction
Chapter 1 Introduction The Texas Instruments TPS61100 to TPS61107 evaluation modules (EVM) for high-efficiency boost converters help designers to evaluate the different operating modes and the performance of the device. Refer to Table 1–1 for the various EVMs available in this family. -
Page 9: Setup Of The Evms
Chapter 2 Setup of the EVMs It is important to establish all connections to the EVM before the power supply for the EVM is turned on. Connect a power supply (0.9 V to V , depending on the output voltage of the EVM) to the INPUT header Connect a voltmeter to the OUTPUT header Verify that all jumper s are set to their desired value (EN, ENPB, SKIPEN,... -
Page 10: Evaluation With The Tps6110X Evm
Evaluation With the TPS6110x EVM 2.1 Evaluation With the TPS6110x EVM This chapter details the evaluation process and features of the EVM. For this evaluation, a load is connected to the output terminal in order to adjust the load current between 0 mA and 250 mA. For accurate output voltage and input voltage measurements, it is important to measure the voltage on the input and output voltage terminals with Kelvin contacts or with a voltmeter connected directly to the input voltage or output... -
Page 11: Lbi/Lbo Comparator
Evaluation With the TPS6110x EVM 2.1.5 LBI/LBO Comparator The LBO1 and LBO2 terminals are open drain outputs and have pullup resistors, R7 and R8, connected to the output. The signal on these pins can go low as soon as the input voltage at LBI falls below the threshold of 500 mV. Refer to the more detailed description and the truth table in the datasheet. -
Page 13: Bill Of Materials, Pcb Layout And Schematic
Chapter 3 Bill of Materials, PCB Layout and Schematic This chapter contains bill of materials, PCB layout of the EVM, and schematic. Topic Page Bill of Materials ..........PCB Layout . -
Page 14: Bill Of Materials
Bill of Materials 3.1 Bill of Materials The bill of materials for the TPS6110x EVM is shown in Table 3–1 with adjustable and fixed output voltage versions. More details about the design and component selection for the dc-dc converter can be found in the data sheet. Table 3–1. -
Page 15: Pcb Layout
PCB Layout 3.2 PCB Layout As for all switch mode power supplies the PCB layout is a critical step in the power supply design process. The figures below show the layout for the adjustable and fixed output voltage EVMs. Please refer to the data sheet for further layout guidelines. -
Page 16: Schematic
Schematic Figure 3–3. Bottom Layer 3.3 Schematic Figure 3–4. TPS6110x EVM Circuit Diagram 10µH VBAT VOUT OUTPUT INPUT 10µF 2.2µF 100µF LDOIN SKIPEN SKIPEN LDOOUT LDOOUT ADEN LDOSENSE ADEN 2.2µF ENPB LBO1 LBO1 ENLDO LBO2 LBO2 PGOOD PGOOD ENPB PGND ENLDO TPS6110xRGE...
