www.ti.com
3 Software
3.1 EVM Configuration Using the Fusion GUI
The TPS546C25 IC leaves the factory preconfigured. The factory default settings for the parameters are found
in the data sheet. Use the software in
than the factory defaults. Make sure to have the input voltage applied to the EVM before launching the software
so that the TPS546C25 is responsive to the GUI and the GUI recognizes the device. The default configuration
for the EVM to stop converting is set by the EN/UVLO resistor divider to a nominal input voltage of 4.75V;
therefore if necessary to avoid any converter activity during configuration, an input voltage less than 4.75V must
be applied. TI recommends an input voltage of 3.3V.
3.1.1 Configuration Procedure
1. Adjust the input supply to provide 3.3VDC with the current limited to 1A.
2. Apply the input voltage to the EVM. See
3. Launch the Fusion GUI software. See the screen shots in
4. Configure the EVM operating parameters as desired.
By default, the resistors on MSEL1 and MSEL2 configure U1 single phase converter.
3.2 Using the Fusion GUI
3.2.1 Opening the Fusion GUI
The Fusion GUI must include the IC_DEVICE_ID in the scanning mode to find the TPS546C25. The EVM needs
power to be recognized by the Fusion GUI. See
section use screen shots showing other TPS546C25 family devices to illustrate the use of the FUSION GUI with
the TPS546C25EVM-1PH when those functions are similar.
SLUUCZ1 – JULY 2024
Submit Document Feedback
Test and Configuration Software
Section 2.1.2
for connections and test setup.
Section 3.1

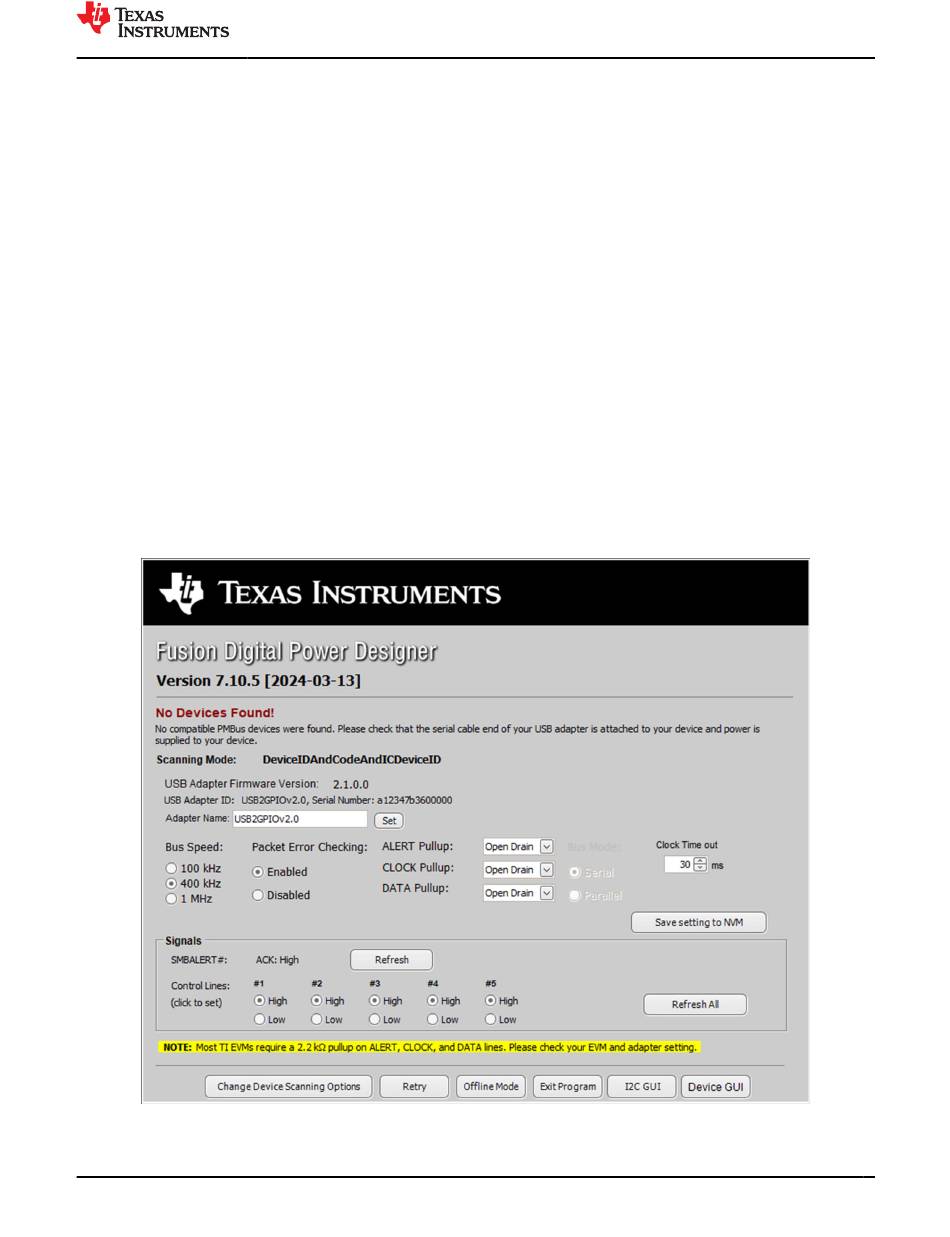

Figure 3-1. Select Device Scanning Mode
TPS546C25EVM-1PH 4V to 18V, 35A, Buck Converter with PMBus and
Copyright © 2024 Texas Instruments Incorporated
to configure the EVM to settings other
Section 3.2
for more information.
for the recommended procedure. Figures in this
Software
7
Telemetry Evaluation Module
