TPS6104x Low-Power DC-DC Boost Converter in SOT-23 and WSON Packages

1 Features

1.8-V to 6-V Input Voltage Range
1
Adjustable Output Voltage Range up to 28 V
400-mA (TPS61040) and 250-mA (TPS61041)
Internal Switch Current
Up to 1-MHz Switching Frequency
28-μA Typical No-Load Quiescent Current
1-μA Typical Shutdown Current
Internal Soft Start
Available in SOT23-5, TSOT23-5,

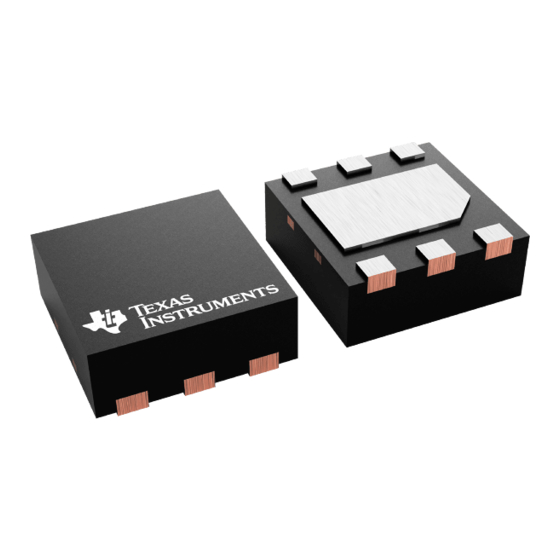

and 2-mm × 2-mm × 0.8-mm WSON Packages

2 Applications

LCD Bias Supply
White-LED Supply for LCD Backlights
Digital Still Camera
PDAs, Organizers, and Handheld PCs
Cellular Phones
Internet Audio Players
Standard 3.3-V or 5-V to 12-V Conversion
10 mH
V
IN
1.8 V to 6 V
5
V
IN
C
IN
4
4.7 mF
EN
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Sample &
Product
Buy
Folder
Typical Application Schematic
L1
D1
C
FF
R1
1
SW
3
FB
2
GND
R2
Tools &
Technical
Software
Documents
SLVS413I – OCTOBER 2002 – REVISED DECEMBER 2016

3 Description

The TPS6104x is a high-frequency boost converter
dedicated for small to medium LCD bias supply and
white LED backlight supplies. The device is ideal to
generate output voltages up to 28 V from a dual-cell
NiMH/NiCd or a single-cell Li-Ion battery. The part
can also be used to generate standard 3.3-V or 5-V
to 12-V power conversions.
The TPS6104x operates with a switching frequency
up to 1 MHz. This frequency allows the use of small
external components using ceramic as well as
tantalum output capacitors. Together with the thin
WSON package, the TPS6104x gives a very small
overall solution size. The TPS61040 device has an
internal 400-mA switch current limit, while the
TPS61041 device has a 250-mA switch current limit,
offering lower output voltage ripple and allows the
use of a smaller form factor inductor for lower power
applications. The low quiescent current (typically 28
μA) together with an optimized control scheme,
allows device operation at very high efficiencies over
the entire load current range.
Device Information
PART NUMBER
TPS61040
TPS61041
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
V
OUT
V
to 28 V
IN
C
O
1 mF
Copyright © 2016, Texas Instruments Incorporated
Support &
Community
TPS61040, TPS61041
(1)
PACKAGE
BODY SIZE (NOM)
SOT-23 (5)
2.90 mm × 1.60 mm
SOT (5)
2.90 mm ×1.60 mm
WSON (6)
2.00 mm × 2.00 mm
SOT-23 (5)
2.90 mm ×1.60 mm
WSON (6)
2.00 mm × 2.00 mm
Efficiency vs Output Current
90
V
= 18 V
O
88
V
= 5 V
I
86
84
V
= 3.6 V
I
82
80
V
= 2.4 V
I
78
76
74
72
70
0.1
1
10
I
− Output Current − mA
O
100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS6104 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPS6104 Series

  • Page 1: Features

    4.7 mF − Output Current − mA Copyright © 2016, Texas Instruments Incorporated An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.
  • Page 2: Table Of Contents

    Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ....................Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 3: Pin Configuration And Functions

    Connect the inductor and the Schottky diode to this pin. This is the switch pin and is connected to the drain of the internal power MOSFET. Supply voltage pin Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 4: Specifications

    — — 26.9 — 26.9 °C/W θJC(bot) (1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 5: Electrical Characteristics

    Load regulation = 2.4 V; V 0.15 %/mA (1) The line and load regulation depend on the external component selection. See the application section for further information. Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 6: Typical Characteristics

    L = 3.3 µH − Load Current − mA − Input Voltage − V Figure 3. Efficiency vs Load Current Figure 4. Efficiency vs Input Voltage Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 7 − Temperature − °C − Supply Voltage − V Figure 9. TPS61040 Current Limit vs Supply Voltage Figure 10. TPS6104x Static Drain-Source On-State Resistance vs Free-Air Temperature Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 8 SLVS413I – OCTOBER 2002 – REVISED DECEMBER 2016 www.ti.com 1000 TPS61041 TPS61040 − Supply Voltage − V Figure 11. TPS6104x Static Drain-Source On-State Resistance vs Supply Voltage Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 9: Detailed Description

    6 s Max SENSE On Time Soft Start Copyright © 2016, Texas Instruments Incorporated 7.3 Feature Description 7.3.1 Peak Current Control The internal switch turns on until the inductor current reaches the typical dc current limit (I ) of 400 mA (TPS61040) or 250 mA (TPS61041).
  • Page 10: Device Functional Modes

    (DCM) where the switching frequency depends on the output current, which results in very high efficiency over the entire load current range. This regulation scheme is inherently stable, allowing a wider selection range for the inductor and output capacitor. Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 11: Application And Implementation

    L1: Sumida CR32-100 4.7 F D1: Motorola MBR0530 160 k C1: Tayo Yuden JMK212BY475MG C2: Tayo Yuden TMK316BJ105KL Copyright © 2016, Texas Instruments Incorporated Figure 12. LCD Bias Supply 8.2.1 Design Requirements Table 2. Design Parameters DESIGN PARAMETER EXAMPLE VALUE Input Voltage 1.8 V to 6 V...
  • Page 12 High efficiency 4.7 μH Sumida CDRH3D16-4R7 Small solution size 4.7 μH Murata LQH3C4R7M24 Small solution size High efficiency TPS61041 10 μH Murata LQH3C100K24 Small solution size Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 13 ESR value but tantalum capacitors can be used as well, depending on the application. Assuming the converter does not show double pulses or pulse bursts on the switch node (SW), the output voltage ripple can be calculated as: Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 14 ON Semiconductor MBR0530 20 V ON Semiconductor MBR0520 TPS6104x 20 V ON Semiconductor MBRM120L High efficiency 30 V Toshiba CRS02 spacer (1) See Third-Party Products disclaimer. Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 15 200 µS/div Figure 13. Line Transient Response Figure 14. Load Transient Response = 18 V 5 V/div 1 V/div 50 mA/div 500 us/div Figure 15. Start-Up Behavior Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 16: System Examples

    1.233 V = 18 V L1: Sumida CR32-100 D1: Motorola MBR0530 C1: Tayo Yuden JMK212BY475MG C2: Tayo Yuden GMK316BJ105KL Copyright © 2016, Texas Instruments Incorporated Figure 16. LCD Bias Supply With Adjustable Output Voltage 200 k BC857C 10 H 1.8 V to 6 V...
  • Page 17 4.7 F D1, D2, D3: Motorola MBR0530 C1: Tayo Yuden JMK212BY475MG 210 k C2, C3, C4: Tayo Yuden EMK316BJ105KF Copyright © 2016, Texas Instruments Incorporated Figure 18. Positive and Negative Output LCD Bias Supply 6.8 H 12 V/35 mA TPS61040 4.7 pF...
  • Page 18 C1: Tayo Yuden JMK212BY475MG 100 Hz to 500 Hz C2: Tayo Yuden TMK316BJ105KL Copyright © 2016, Texas Instruments Incorporated Figure 21. White LED Supply With Adjustable Brightness Control Using a PWM Signal on the Enable Pin, Efficiency Approximately Equals 86% at V...
  • Page 19: Power Supply Recommendations

    Wide traces should be used for connections in bold as shown in Figure 23. A star ground connection or ground plane minimizes ground shifts and noise. 10.2 Layout Example VOUT Figure 23. Layout Diagram Submit Documentation Feedback Copyright © 2002–2016, Texas Instruments Incorporated Product Folder Links: TPS61040 TPS61041...
  • Page 20: Device And Documentation Support

    TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 11.4 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 11.5 Electrostatic Discharge Caution These devices have limited built-in ESD protection.
  • Page 21 PACKAGE OPTION ADDENDUM www.ti.com 24-Aug-2018 PACKAGING INFORMATION Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) TPS61040DBVR ACTIVE SOT-23 3000 Green (RoHS CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 85 PHOI...
  • Page 22 PACKAGE OPTION ADDENDUM www.ti.com 24-Aug-2018 MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device. Multiple Device Markings will be inside parentheses.
  • Page 23 PACKAGE MATERIALS INFORMATION www.ti.com 8-May-2018 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Reel Reel Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1 (mm) TPS61040DBVR SOT-23 3000 180.0 TPS61040DBVR SOT-23 3000 178.0 3.23 3.17...
  • Page 24 PACKAGE MATERIALS INFORMATION www.ti.com 8-May-2018 *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) TPS61040DBVR SOT-23 3000 203.0 203.0 35.0 TPS61040DBVR SOT-23 3000 180.0 180.0 18.0 TPS61040DDCR SOT-23-THIN 3000 195.0 200.0 45.0 TPS61040DDCT SOT-23-THIN 195.0 200.0...
  • Page 28 PACKAGE OUTLINE DBV0005A SOT-23 - 1.45 mm max height SCALE 4.000 SMALL OUTLINE TRANSISTOR 0.1 C 1.75 1.45 MAX 1.45 PIN 1 INDEX AREA 2X 0.95 3.05 2.75 0.15 (1.1) C A B 0.00 0.25 GAGE PLANE 0.22 0.08 SEATING PLANE 4214839/C 04/2017 NOTES: 1.
  • Page 29 EXAMPLE BOARD LAYOUT DBV0005A SOT-23 - 1.45 mm max height SMALL OUTLINE TRANSISTOR 5X (1.1) 5X (0.6) SYMM (1.9) 2X (0.95) (R0.05) TYP (2.6) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE:15X SOLDER MASK SOLDER MASK METAL UNDER METAL OPENING OPENING SOLDER MASK EXPOSED METAL EXPOSED METAL...
  • Page 30 EXAMPLE STENCIL DESIGN DBV0005A SOT-23 - 1.45 mm max height SMALL OUTLINE TRANSISTOR 5X (1.1) 5X (0.6) SYMM (1.9) 2X(0.95) (R0.05) TYP (2.6) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL SCALE:15X 4214839/C 04/2017 NOTES: (continued) 6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.
  • Page 31 PACKAGE OUTLINE DBV0005A SOT-23 - 1.45 mm max height SCALE 4.000 SMALL OUTLINE TRANSISTOR 0.1 C 1.75 1.45 MAX 1.45 PIN 1 INDEX AREA 2X 0.95 3.05 2.75 0.15 (1.1) C A B 0.00 0.25 GAGE PLANE 0.22 0.08 SEATING PLANE 4214839/D 11/2018 NOTES: 1.
  • Page 32 EXAMPLE BOARD LAYOUT DBV0005A SOT-23 - 1.45 mm max height SMALL OUTLINE TRANSISTOR 5X (1.1) 5X (0.6) SYMM (1.9) 2X (0.95) (R0.05) TYP (2.6) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE:15X SOLDER MASK SOLDER MASK METAL UNDER METAL OPENING OPENING SOLDER MASK EXPOSED METAL EXPOSED METAL...
  • Page 33 EXAMPLE STENCIL DESIGN DBV0005A SOT-23 - 1.45 mm max height SMALL OUTLINE TRANSISTOR 5X (1.1) 5X (0.6) SYMM (1.9) 2X(0.95) (R0.05) TYP (2.6) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL SCALE:15X 4214839/D 11/2018 NOTES: (continued) 7. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.
  • Page 34 GENERIC PACKAGE VIEW DRV 6 WSON - 0.8 mm max height PLASTIC SMALL OUTLINE - NO LEAD Images above are just a representation of the package family, actual package may vary. Refer to the product data sheet for package details. 4206925/F...
  • Page 35 PACKAGE OUTLINE DRV0006A WSON - 0.8 mm max height SCALE 5.500 PLASTIC SMALL OUTLINE - NO LEAD PIN 1 INDEX AREA SEATING PLANE 0.08 C (0.2) TYP 0.05 1 0.1 EXPOSED 0.00 THERMAL PAD 1.6 0.1 4X 0.65 0.35 PIN 1 ID 0.25 (OPTIONAL) 0.05...
  • Page 36 4222173/B 04/2018 NOTES: (continued) 4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature number SLUA271 (www.ti.com/lit/slua271). 5. Vias are optional depending on application, refer to device data sheet. If some or all are implemented, recommended via locations are shown.
  • Page 37 EXAMPLE STENCIL DESIGN DRV0006A WSON - 0.8 mm max height PLASTIC SMALL OUTLINE - NO LEAD SYMM 6X (0.45) METAL 6X (0.3) (0.45) SYMM 4X (0.65) (0.7) (R0.05) TYP (1.95) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL EXPOSED PAD #7 88% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE SCALE:30X 4222173/B 04/2018...
  • Page 38 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
