4.2.5 Control On
Figure 4-6
illustrate the start-up from control on waveform at 0A output.

4.2.6 Control Off

Figure 4-7
illustrate the control off waveforms at 0A.
18
TPS546C25EVM-1PH 4V to 18V, 35A, Buck Converter with PMBus and
Telemetry Evaluation Module

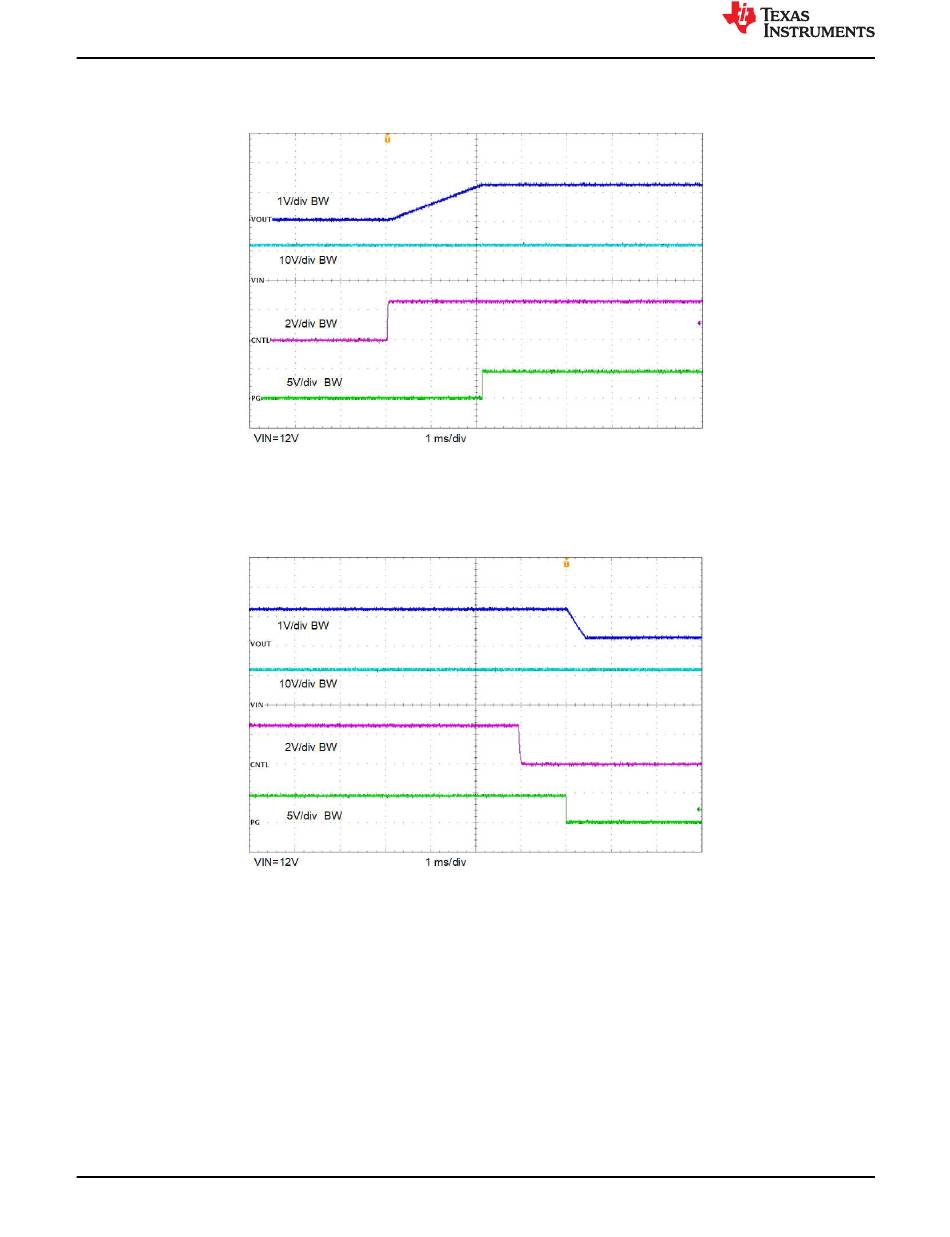

Figure 4-6. Start-Up From Control, 0A Load
Figure 4-7. Shutdown From Control, 0A Load
