www.ti.com
3.2.5 Pin Strapping
Use the Pin Strapping tab
of the PMBus commands at power-up.
SLUUCZ1 – JULY 2024
Submit Document Feedback
(Figure 3-5
) to aid in selecting external pin strapping resistors used to program some

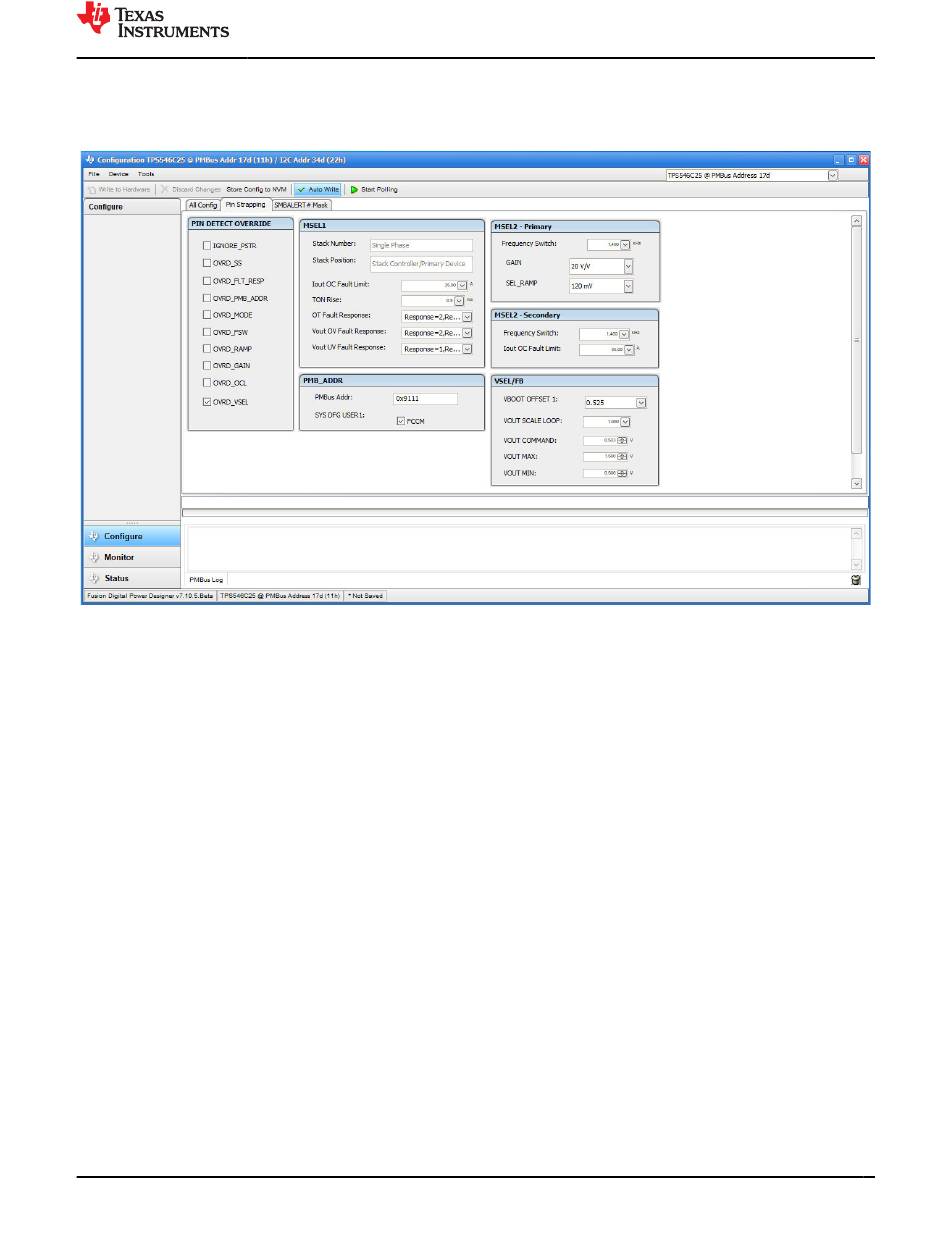

Figure 3-5. Configure – Pin Strapping
Copyright © 2024 Texas Instruments Incorporated
TPS546C25EVM-1PH 4V to 18V, 35A, Buck Converter with PMBus and
Software
11
Telemetry Evaluation Module
