QUICK START GUIDE

To evaluate the ADMX3652, Analog Devices, Inc., offers a solution

for quickly building a test platform that consists of the following:

1. The EVAL-ADMX3652-INT interface board

2. The ADMX3652

3. The

ADMX3652 Evaluation GUI Software

Take the following steps to use the EVAL-ADMX3652-INT interface

board to build up the evaluation platform for the ADMX3652:

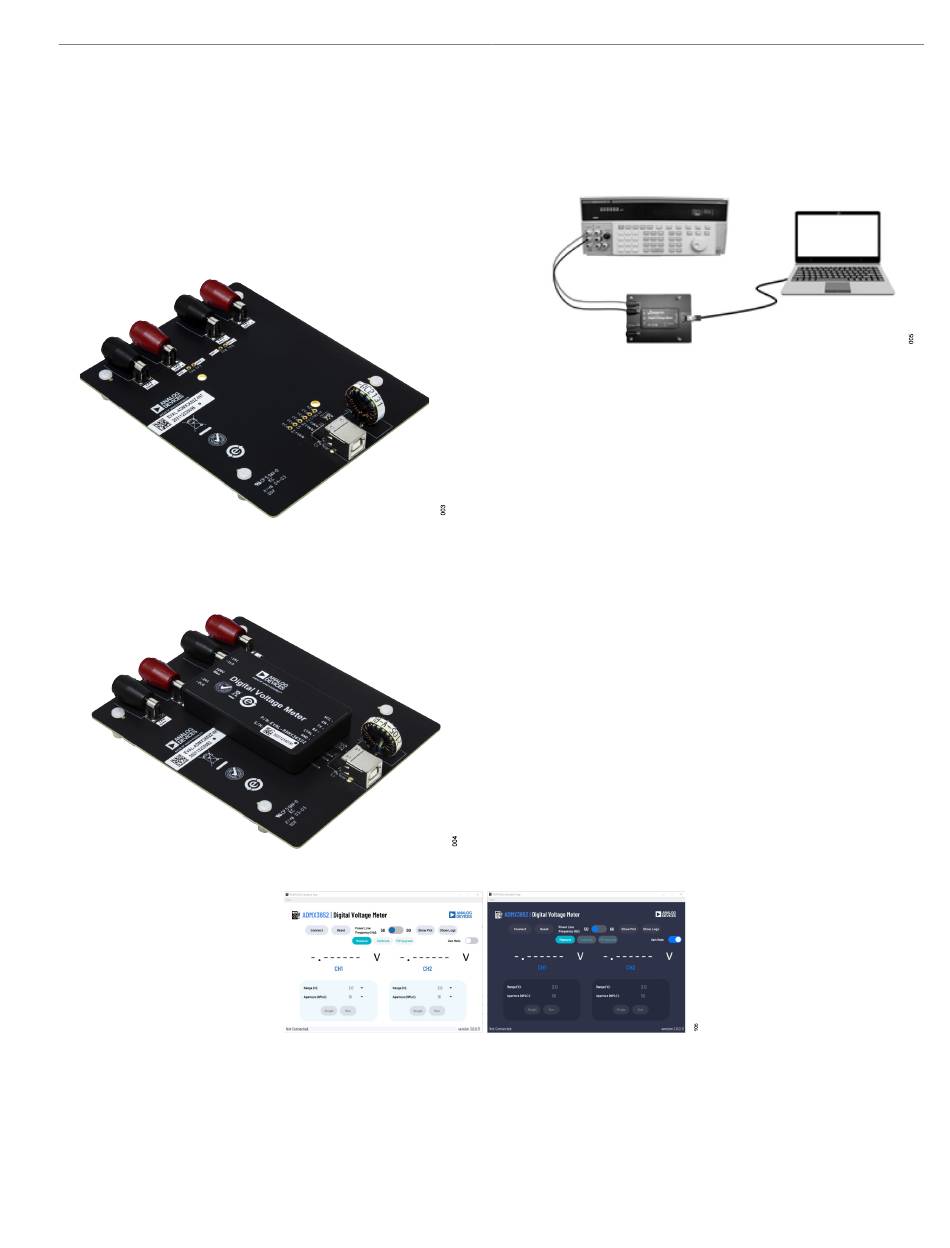

Figure 1. EVAL-ADMX3652-INT Interface Board

1. Mount the ADMX3652 firmly together with the EVAL-

ADMX3652-INT interface board.

Figure 2. ADMX3652 Installed on EVAL-ADMX3652-INT Interface Board

analog.com

Figure 4. ADMX3652 Evaluation GUI in Light Mode (Left) and Dark Mode (Right)

EVAL-ADMX3652

2. Connect the voltage measurement test leads to the EVAL-

ADMX3652-INT interface board.

3. Connect the EVAL-ADMX3652-INT interface board to the host

Windows

computer through a USB A to USB B cable.

Figure 3. Quick Start Setup

4. Download and install the FT232RNL driver from the FTDI

website for converting the UART to the USB on the

EVAL-ADMX3652-INT board. Then, download and install

the ADMX3652 Evaluation GUI Software from the EVAL-

ADMX3652 web page.

5. Launch the GUI.
