EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide
QUICK START GUIDE
Follow these steps to quickly evaluate the AD7606/AD7606-6/
AD7606-4/AD7607/AD7608
see the subsequent sections.
1.
Install the evaluation software from the AD7606/AD7606-6/
AD7606-4/AD7607/AD7608
included CD. Ensure that the
board is disconnected from the USB port of the PC while
installing the software. (The PC may need to be restarted
after the installation.)
2.
Ensure that the various link options are configured as
outlined in Table 3.
ADC. For detailed instructions,
product pages or from the
EVAL-SDP-CB1Z SDP
J1
V1 TO V8

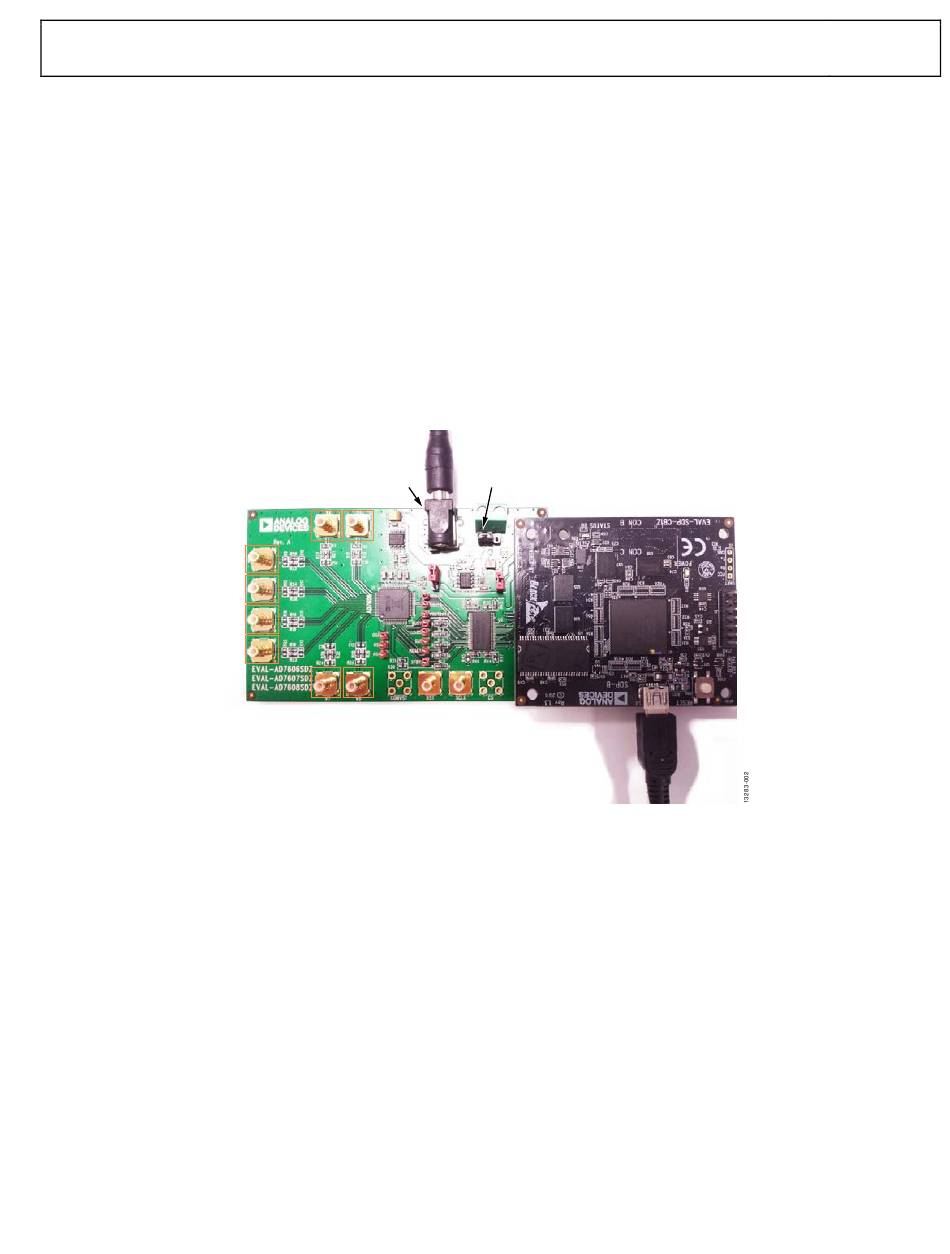

Figure 2. Evaluation Board (Left) Connected to the
3.
Connect the
evaluation board as shown in Figure 2. Screw the two
boards together using the enclosed nylon screw/nut kit
to ensure that the boards connect firmly together.
4.
Connect a 5 V power supply to J1 and ensure LK1 is in
Position A.
5.
Connect the
the USB cable. Choose to automatically search for the
drivers for the
system.
6.
Launch the evaluation software from the Analog Devices
subfolder in the Programs menu.
7.
Connect an input signal via V1 to V8.
LK1
SDP
Board (Right)
Rev. 0 | Page 3 of 15
EVAL-SDP-CB1Z SDP
board to the
EVAL-SDP-CB1Z SDP
board to the PC via
SDP
board if prompted by the operating
UG-851
