User Guide
MODULE OPERATION
Software Operation
See
Figure 11
for the default interface of the
tion GUI Software
after start-up.
Click Connect to start using the GUI. A dialog box then pops up for
Serial Port and Baud Rate selection by the user (see
The GUI automatically detects the serial port that the
mapped to on the computer. If the GUI fails to detect the serial port,
check the hardware connection, and try again. The baud rate must
match device's setting and the factory default setting of baud rate is
460, 800. Then, click Confirm to continue.

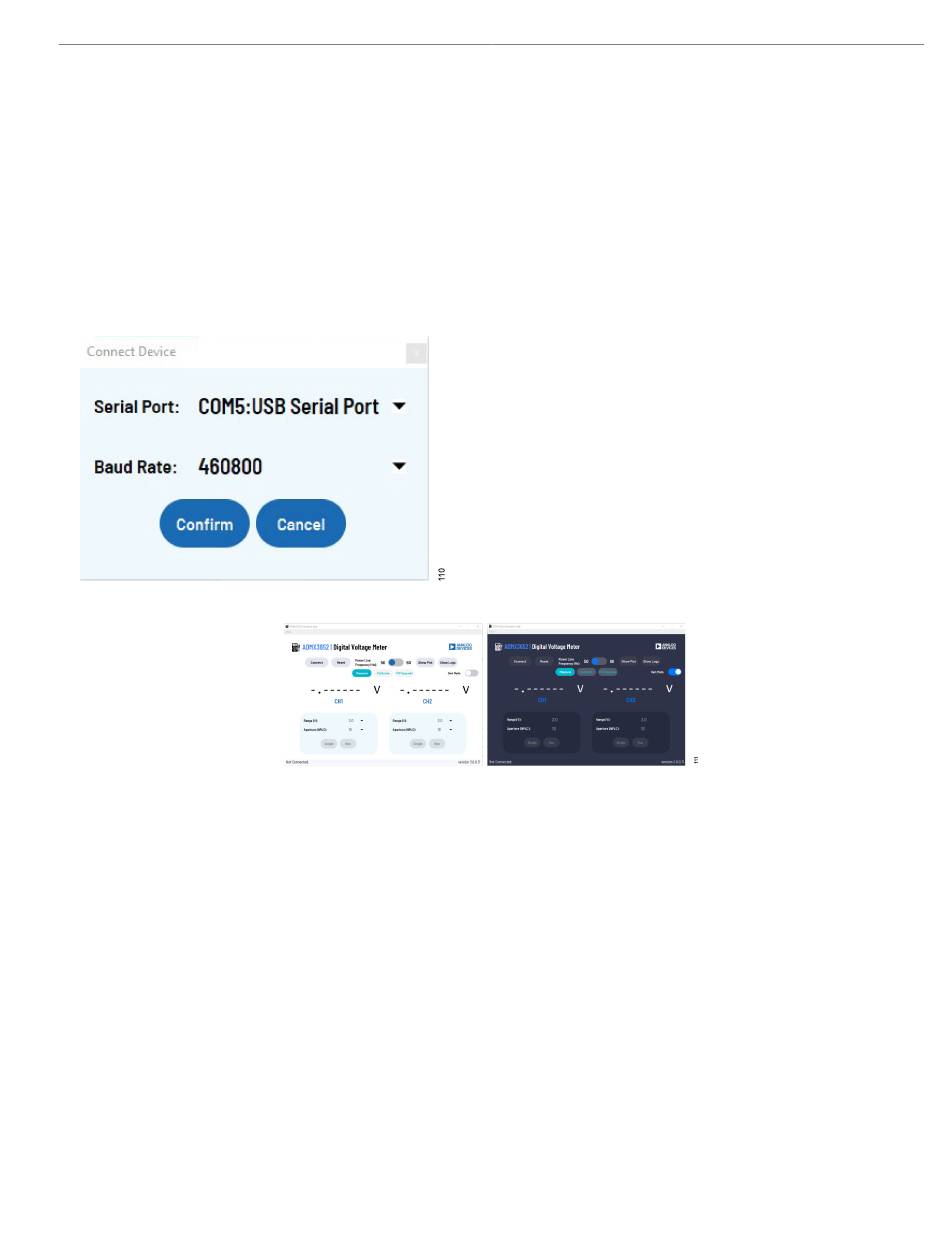

Figure 10. Serial Port Configuration
analog.com
ADMX3652 Evalua-
Figure
10).
ADMX3652
is
Figure 11. ADMX3652 Evaluation GUI in Display Modes
EVAL-ADMX3652
Note that it takes approximately 5 seconds to load the settings
after clicking Confirm for this tool to initiate before it is ready for
measurement.
Rev. B | 9 of 22
