MODULE OPERATION
Single Mode
When a single measurement is required, click Single. When a
measurement is set to continuously run, click Single, which can
also function as Stop button.

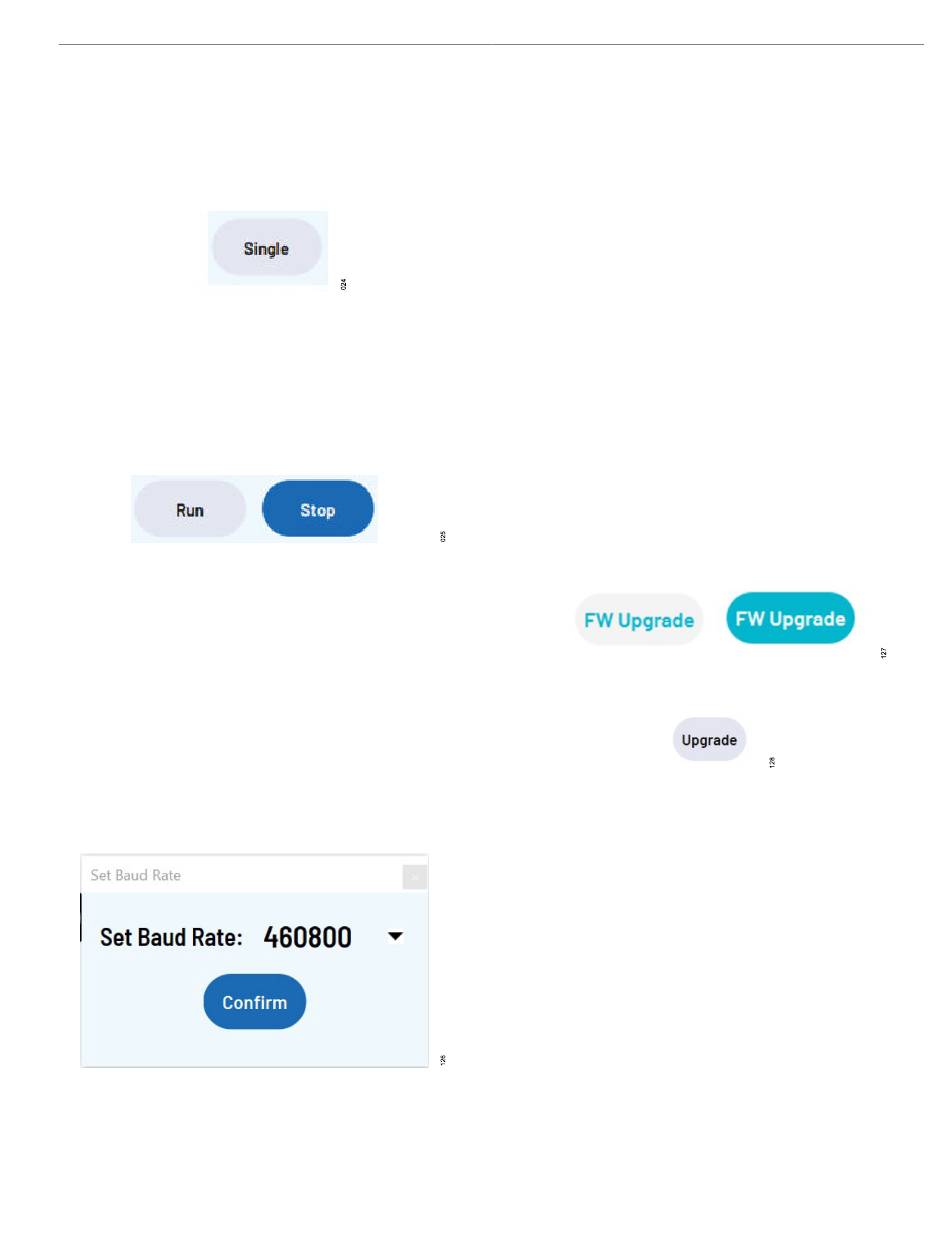

Figure 24. Single Mode Button
Run or Stop
To trigger continuous measurement, click Run. When continuously
running, the Stop button is active, and the Run button is disabled.
For Channel 1 (CH1), the factory default setting is Run, and for
Channel 2 (CH2), the factory default setting is Stop.
Figure 25. Run or Stop Buttons
Device Operation
Baud Rate Configuration
The ADMX3652 supports communication through SCPI protocol
at different baud rate from 9600 bps to 460800 bps. The default
factory setting of baud rate is 460800 bps. The user can access the
function through the menu of tools on top of the GUI. A Set Baud
Rate window pops out for user to select baud rate from list and
confirm the selection by Confirm button. Then, there is a message
to confirm if the operation succeeded or failed. If the user sets
the baud rate while the device connection is still active, the GUI
automatically adjusts the new baud rate.
Figure 26. Set Baud Rate
analog.com
EVAL-ADMX3652
Firmware Upgrade
To continuously improve user experience, the ADMX3652 may
release new firmware without notifying the user in advance. The
user decides whether to upgrade to the new version according to
their own needs. The upgrade operation is implemented through
the GUI. User can download the latest GUI version by visiting
www.analog.com
to obtain the latest firmware.
The FW upgrade page can be accessed by clicking the FW Up-
grade button after connecting the device. On the page, the GUI
automatically obtains the current firmware version of the device and
suggests the version of firmware contained in the GUI. When the
current firmware supports and meets the upgrade requirements, the
GUI allows user to implement the upgrade operation.
Before upgrading, read carefully the precautions for operating firm-
ware upgrade and follow them strictly in the process. When user
is ready to upgrade, click the Upgrade button to start the process,
and a progress bar pops up to prompt the progress. The time of
upgrading operation is associated with the communication baud
rate. The higher the baud rate, the faster the upgrade is completed.
The firmware upgrade function is only available for revision 4.8.1
and later.
Figure 27. FW Upgrade Button
Figure 28. Upgrade Start Button
SCPI COMMANDS
The ADMX3652 supports the SCPI protocol. Users can develop
their own control software or integrate software operation into their
system by using the SCPI protocol commands properly.
All of the down programming data and up return data of the protocol
is presented by ASCII character strings. For additional information
on the SCPI protocol, refer to the SCPI Consortium or the IEEE
Standard 488.
ADMX3652 Self Test
Once the ADMX3652 is powered up, it starts a self test, and
outputs self test information through its communication port. The
self test process checks power rails one by one. The self test
process repeatedly checks each of the power rails until each power
rail is normal or times out, and then checks the next power rail. The
self test process takes about 45 seconds on a cold start or about
