SPEEDOMETER
Speedometer – White - (Factory sender with Powertrain Control Module) When using a
1.)
LS engine swap, you will need to pick up the Speedometer signal wire from the PCM Pin 50 on the
red connector. (This pin may Differ. Refer to your vehicles Pinout Chart for accuracy). Any other
Computer based engine will need to use to use the PCM/ECM to run the speed signal for the
Speedometer. (Consults Pinout Chart
Speedometer – White - (Factory two wire sender no PCM) - Most vehicles built after 1984
2.)
have an electronic transmission sender. If your vehicle is already equipped with an electronic
transmission, then the electronic vehicle sender will usually have Two wires attached to it. One
connects to the Signal wire on dash (we prefer this to be high output). The other wire (Low output)
Ground at the Engine block. To find High and Low output wire color or pin location will need to
be looked up by Vehicle vin or Model and year or (Consults Pinout Chart

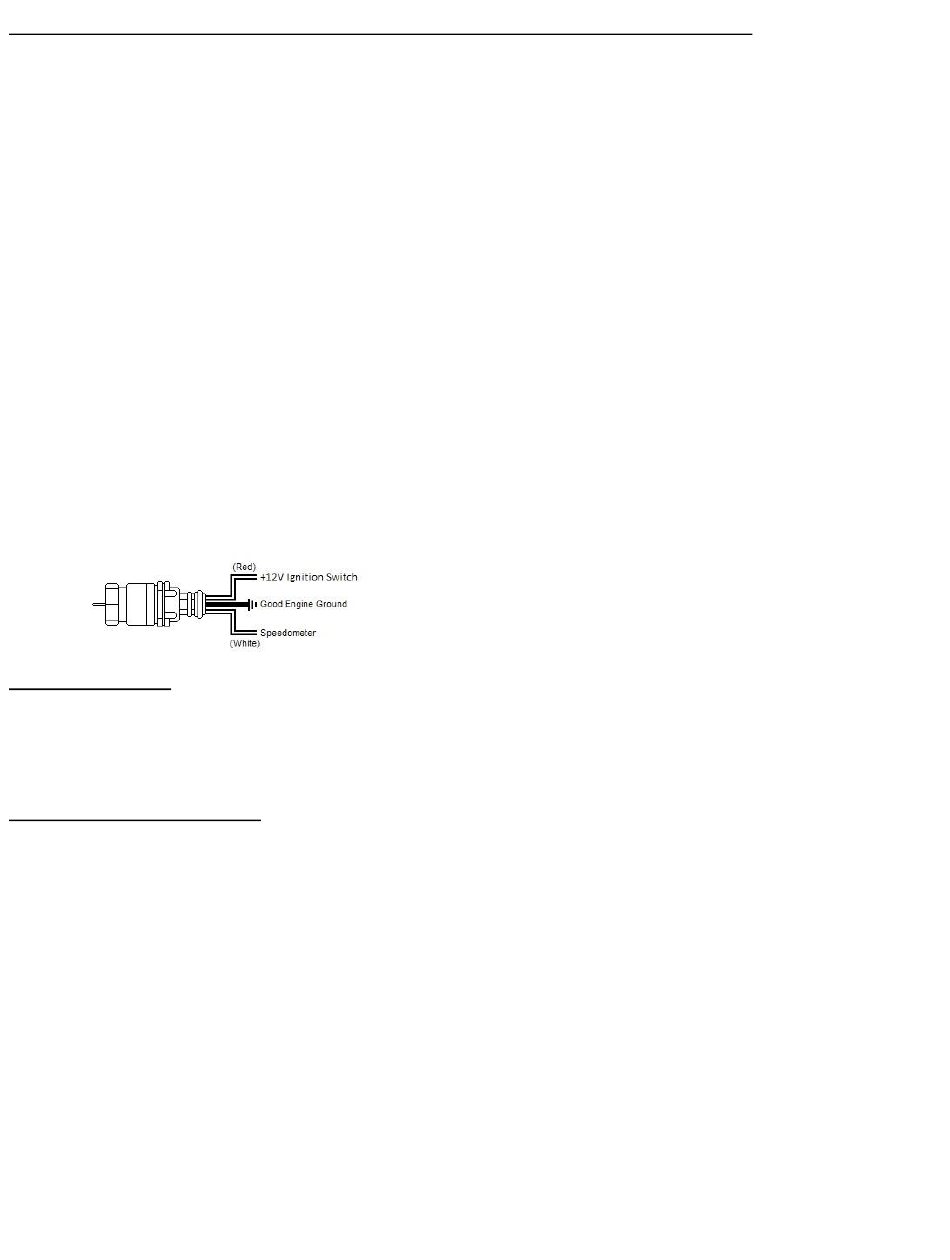

Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical
3.)
speedometer cable from the transmission and thread the new electronic sensor onto the
transmission. This panel comes with a 3-wire sensor. If you are using this sensor, the white wire is
the speed signal; connect this to the speed signal wire on your gauge. The red and black wires in
the cable are switch power (12VDC) and ground, respectively. NOTE:(Twist all Three wires
together and this will provide an additional level of interference protection.) The speed signal
wire should not be routed alongside the tachometer, ignition, or any other high-current or high-
voltage wires

Trip Distance

A single tap of the recall button will activate the trip meter in the odometer display. A decimal
point will appear which will indicate that you are in trip meter mode. Holding the recall button will
clear out the trip distance. To return to the default odometer display, tap the recall button again.
The decimal point will disappear, indicating that you are back in the default odometer display.

Setting the Odometer

While scrolling through 'CAL' mode you will see 'ODO' appear. This will allow you to enter the
vehicle's actual mileage. Press the trip button again at this point and you will enter the odometer
set up mode. Press quickly to change the number of the digit on the right. Press and hold to
advance to the next digit. Do this for all 5 digits. For Example: To enter the mileage reading
23456 into the odometer, at the 'ODO' prompt, tap the small black button (quickly) two times,
until the number 2 is dis- played. Then press and hold the button until the numbers 20 are
displayed. Tap the button 3 times until 23 is displayed. Press and hold the button until 230 is
displayed and continue in this manner until 23456 is displayed. The speedometer will advance
to the home screen, five seconds after the last number is entered.
5 BG10002
(you have three methods for speedometer connection)
)
