Made in America
Thank you for purchasing this instrument panel from Intellitronix. We value our customers!
Universal 6 Gauge Bargraph Analog Dash Panel
* Always disconnect the battery before attempting any electrical work on your vehicle. *
*Power up the unit before installing to ensure everything is working properly*

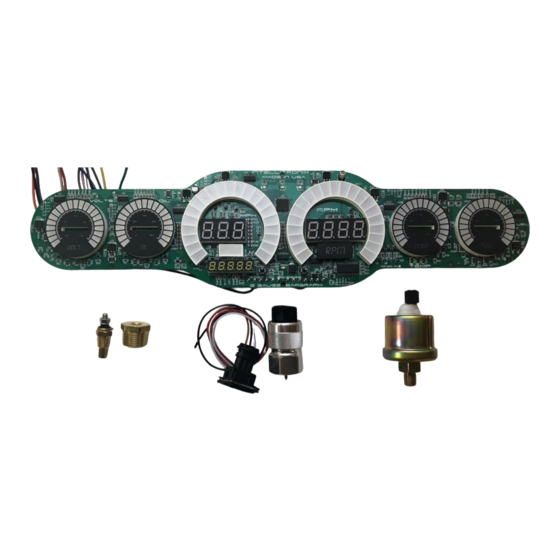

KIT COMPONENTS
One (1) Digital Circuit Board with Speedo/Tach combination gauge, plus temperature, fuel, oil
pressure and voltmeter.
One (1) Smoked Acrylic Lens * Peel off protective covering from both sides of each lens *
One (1) Temperature Sending Unit (S8013 OR S8023) 1/8" NPT, 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8868) 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) 7/8" NPT Industry Standard threads
One (1) Mounting Kit
Six (6) #4 x 1" Black oxide Allen screws
Six (6) #4 Nylon Washers
1 BG10002
INSTALLATION GUIDE
Part Number: BG10002
Intellitronix
Lifetime Guarantee
Six (6) #4 x 5/16 Nylon spacers
Six (6) #4 Nylock Nuts
Rev 01312022
www.intellitonix.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellitronix BG10002
Summary of Contents for Intellitronix BG10002
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument panel from Intellitronix. We value our customers! INSTALLATION GUIDE Universal 6 Gauge Bargraph Analog Dash Panel Part Number: BG10002 * Always disconnect the battery before attempting any electrical work on your vehicle. *...
-
Page 2: Wiring Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 3 2. For GM - #1 toggle is ON a. # 2 toggle is OFF. 3. Both switches in the OFF position for VDO 4. For Universal/Stewart Warner #1 toggle is OFF # 2 toggle is ON. 3 BG10002 Intellitronix Rev 01312022 www.intellitonix.com...
-
Page 4: To Change Settings
ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. If your engine is a 4 cylinder, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. -
Page 5: Trip Distance
Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year or (Consults Pinout Chart Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. - Page 6 8,000 pulses per mile. You should not have to recalibrate your speedometer unless you have changed the original tire size or the rear end gear ratio. Also, if using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated.
-
Page 7: Lifetime Guarantee
Monday – Friday 9am to 5 pm EST (440) 359 7200 support@intellitronix.com This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. 7 BG10002 Intellitronix Rev 01312022 www.intellitonix.com...
