Trip Distance; Setting The Odometer - Intellitronix DP2001 Installation Manual

To change settings:
The display will stay in Settings Mode until it receives a signal from the ignition system. To program
the unit after starting the engine, shut the engine off and turn on only to the accessory position.
When in accessory mode, the settings menu will scroll through the settings menu. A light tap on the
button engages the menu system.
1. Sets # of digits in RPM display, using button, display shows: (hundreds) 8800, (tens)
8880, and (ones) 8888.
2. Sets # of cylinders using button, display shows: 1cy, 2cy, etc.
3. Sets first digit on max RPM on gauge bar display (in thousands) using button, display
shows: 1000 to 9990. You will need to hold button till you reach desired range. If you
miss range, you will need to go around again.
SPEEDOMETER
Speedometer – White - (Factory sender with Powertrain Control Module) When using a LS
engine swap, you will need to pick up the Speedometer signal wire from the PCM Pin 50 on the red
connector. (This pin may Differ. Refer to your vehicles Pinout Chart for accuracy). Any other
Computer based engine will need to use to use the PCM/ECM to run the speed signal for the
Speedometer.(Consults Pinout Chart
Speedometer – White - (Factory two wire sender no PCM) - Most vehicles built after 1984 have
an electronic transmission sender. If your vehicle is already equipped with an electronic
transmission, then the electronic vehicle sender will usually have Two wires attached to it. One
connects to the Signal wire on dash (we prefer this to be high output). The other wire (Low output)
Ground at the Engine block. To find High and Low output wire color or pin location will need to be
looked up by Vehicle vin or Model and year or (Consults Pinout Chart

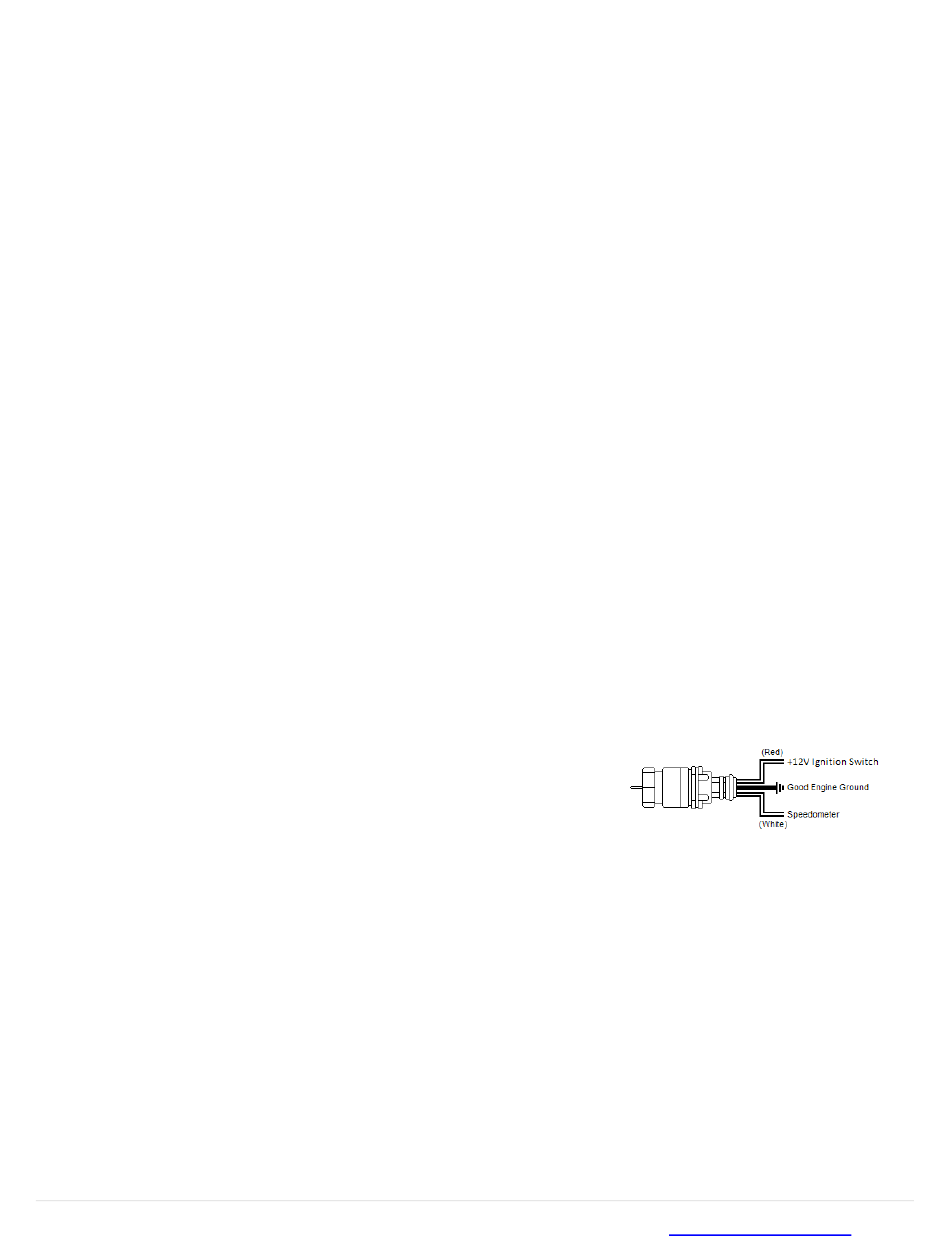

Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer
cable from the transmission and thread the new electronic sensor onto the transmission. This panel
comes with a 3-wire sensor. If you are using this sensor, the white wire is the speed signal; connect
this to the speed signal wire on your gauge. The red and black wires in the cable are switch power
(12VDC) and ground, respectively. NOTE:(Twist all Three wires together and this will provide an
additional level of interference protection.) The speed signal wire should not be routed alongside
the tachometer, ignition, or any other high-current or high-voltage wires

Trip Distance

A single tap of the recall button will activate the trip meter in the odometer display. A decimal point
will appear which will indicate that you are in trip meter mode. Holding the recall button will clear
out the trip distance. To return to the default odometer display, tap the recall button again. The
decimal point will disappear, indicating that you are back in the default odometer display.

Setting the Odometer

While scrolling through 'CAL' mode you will see 'ODO' appear. This will allow you to enter the
vehicle's actual mileage. Press the trip button again at this point and you will enter the odometer
set up mode. Press quickly to change the number of the digit on the right. Press and hold to advance
to the next digit. Do this for all 5 digits. For Example: To enter the mileage reading 23456 into the
odometer,
at the 'ODO' prompt, tap the small black button (quickly) two times, until the number 2 is dis-
played. Then press and hold the button until the numbers 20 are displayed. Tap the button 3 times
until 23 is displayed. Press and hold the button until 230 is displayed and continue in this manner
until 23456 is displayed. The speedometer will advance to the home screen, five seconds after the
last number is entered.
