Thank you for purchasing this instrument panel from Intellitronix. We value our customers!
INSTALLATION GUIDE

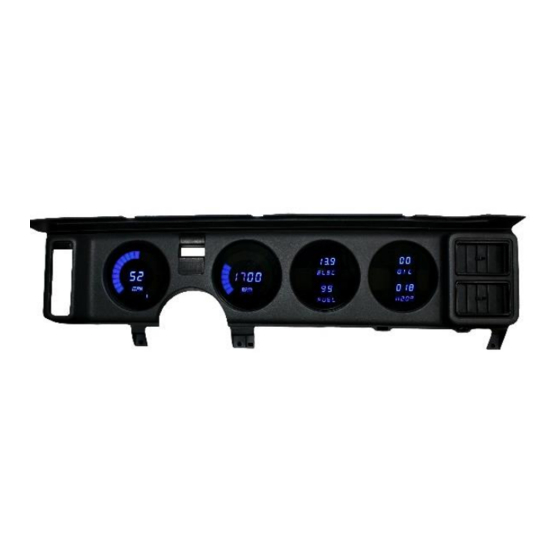

Pontiac Firebird Dash Panel
Part Number: DP3001
Year Series: 1982-1990
* Always disconnect the battery before attempting any electrical work on your vehicle.*
1 – DP3001
www.intellitronix.com
(rev.02/20/2020)
Advertisement
Table of Contents
Related Manuals for Intellitronix DP3001
Summary of Contents for Intellitronix DP3001
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument panel from Intellitronix. We value our customers! INSTALLATION GUIDE Pontiac Firebird Dash Panel Part Number: DP3001 Year Series: 1982-1990 * Always disconnect the battery before attempting any electrical work on your vehicle.* 1 –...
- Page 2 Note: If doing an LS engine swap, pick up the tach signal wire from the ECM/ECU and then program the tachometer to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer.
- Page 3 Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service.
- Page 4 Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year or (Consults Pinout Chart 3.)Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor.
- Page 5 CALIBRATION Note: If using the Intellitronix GPS Sending Unit, (not included) the speedometer does not need to be calibrated. The speedometer leaves the factory with a pre-set industry standard setting of 8,000 pulses per mile.
- Page 6 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 6 – DP3001 www.intellitronix.com (rev.02/20/2020)
- Page 7 Made in America Lifetime Guarantee Technical Support Monday – Friday 9am to 5 pm EST (440) 359 7200 support@intellitronix.com CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS 7 – DP3001 www.intellitronix.com (rev.02/20/2020)
- Page 8 This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product.
