Thank you for purchasing this instrument from Intellitronix. We value our customers!

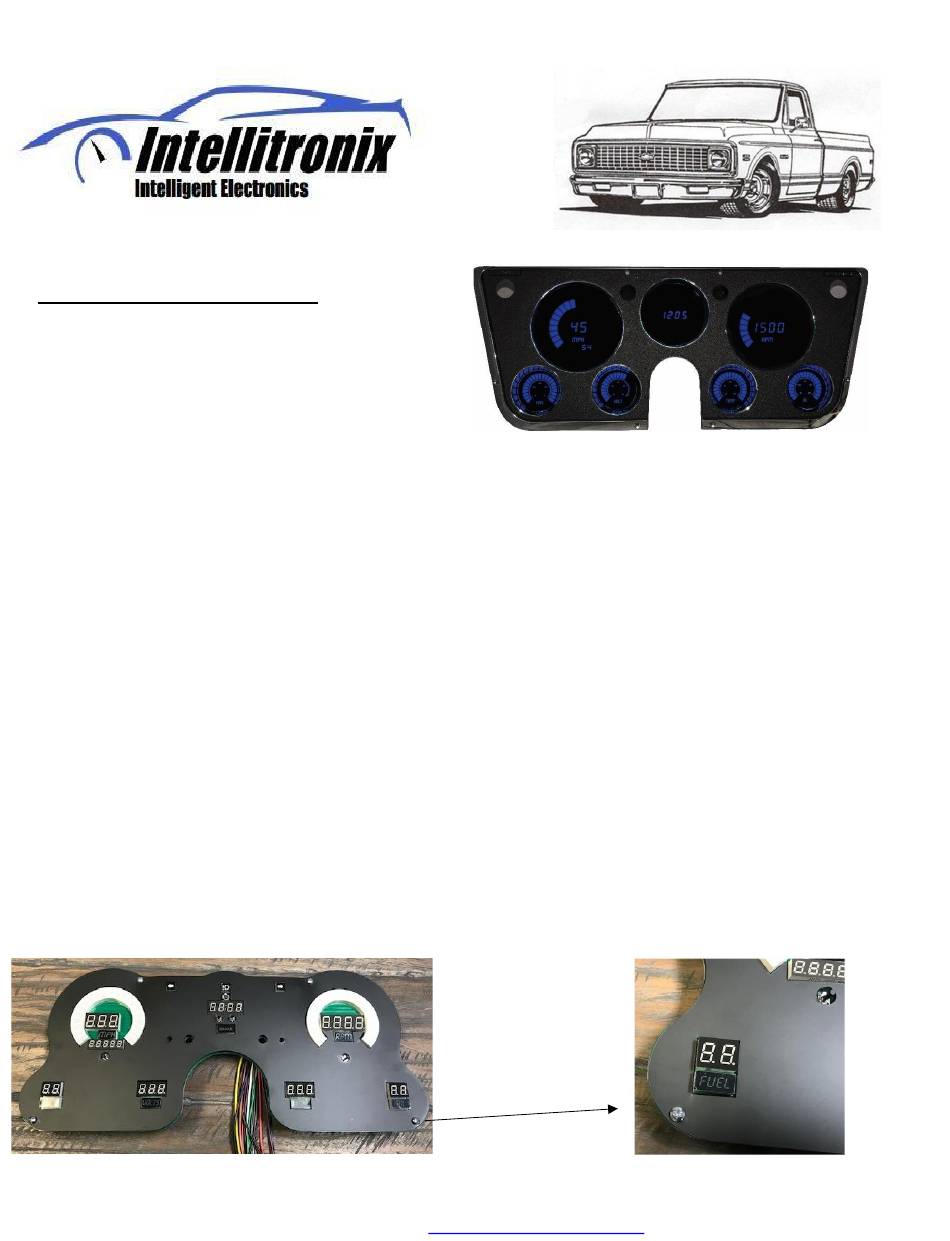

INSTALLATION GUIDE
1967-1972 Chevrolet Truck
Digital Direct Replacement Dash
Part #: BG6003
Always disconnect the battery before attempting any electrical work on your vehicle.*
***Always Remove Protective Film from Your New Dash***
*Power up the unit before installing to ensure everything is working properly*
KIT COMPONENTS
One (1) Circuit Board (with Speedometer, Tachometer, Voltmeter, Water Temp., Fuel Level, Oil
Pressure Gauge, and Clock
One (1) Smoked Acrylic Lens & Overlay
One (1) Temperature Sending Unit (S8013) - 1/8" NPT, 1/2" NPT Bushing
One (1) Pressure Sending Unit (S8868) - 1/8" NPT, 0-100 PSI Oil Pressure
One (1) Universal Speedometer Sensor (S9013) - 7/8" NPT Industry Standard threads
One (1) Mounting Kit
Two(2) - 10/32 x 1" screws
Two(2) #10 x 3/8" - Nylon spacers
Two(2) #10- Nylon washers
Two(2) -10/32 Nylock nut
Step 1
1 – BG6003
rev 1162024
Lifetime Guarantee
Eight (8) #8-32 x 3/8in Pan Head Machine screws
Four (4) #8 x 1" Threaded Standoffs/separators
Four (4) Attachment Brackets
Attach overlay to
the front of the
circuit
board
using 4 #8-32 X
3/8" screws
www.intellitronix.com
Step 1 Close
Up
Tech Support (440) 210-7646
