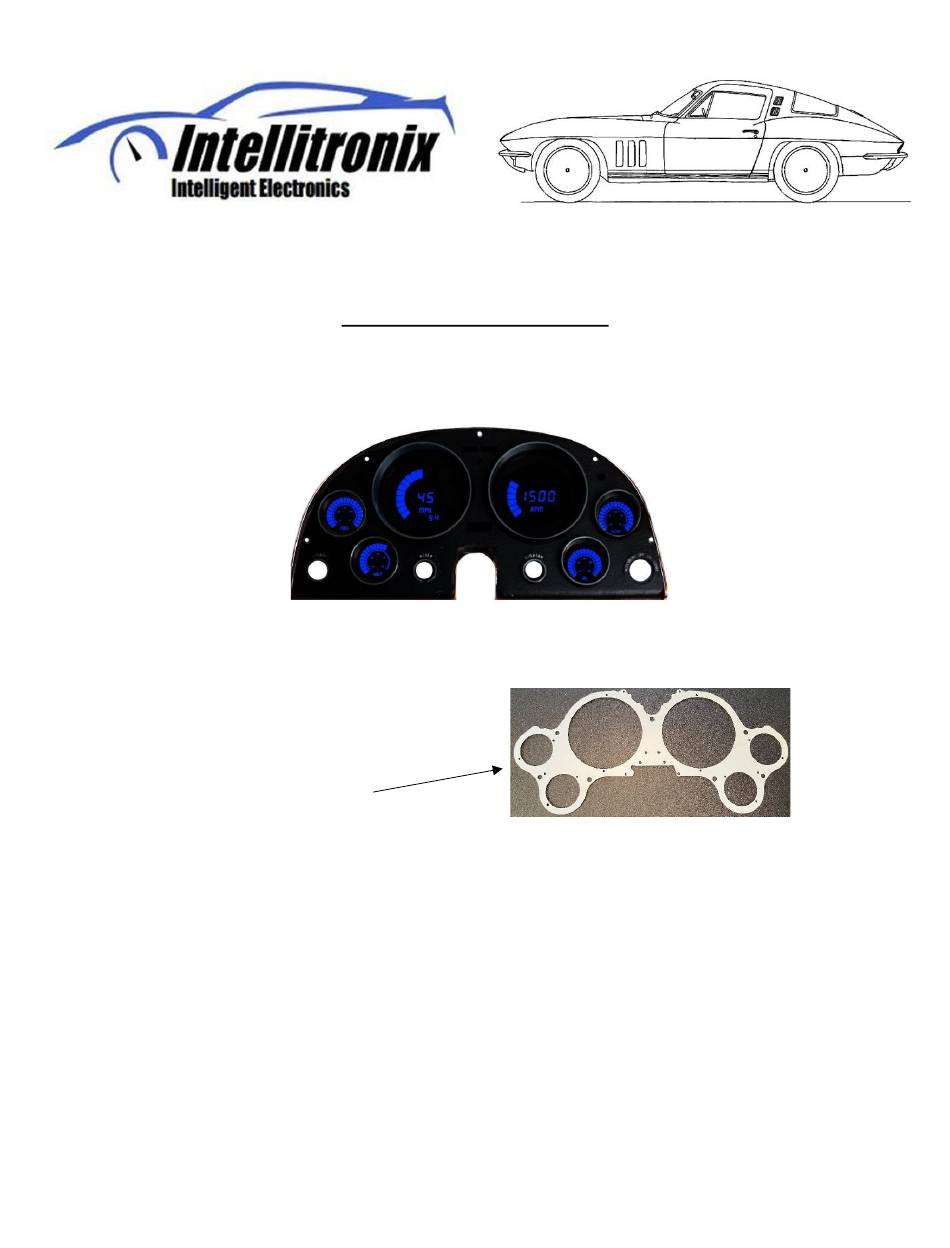

Made in America
Thank you for purchasing this instrument from Intellitronix. We value our customers!
* Always disconnect the battery before attempting any electrical work on your vehicle.*
*Power up the unit before installing to ensure everything is working properly*
KIT COMPONENTS
•
One (1) Digital Circuit Board
•
Six (6) Clear Acrylic Lenses
•
Six (6) Black Spacer Rings
•
One (1) Smoked Acrylic Lens
•
One (1) Full spacer (see photo)
•
One (1) Black out Overlay
•
One (1) Acrylic Backboard
•
One (1) Temperature Sending Unit (S8013) (1) Water temp with bushing
•
Pressure Sending Unit (S8868) 1/8" NPT, 0-100 PSI Oil Pressure
•
One (1) Universal Speedometer Sensor (S9013) 7/8" NPT Industry Standard threads
•
One (1) Mounting Kit
•
6 – 4-40 x 1 ½ Philips Screws
•
6 – 3/8 Spacers
•
6 - # 4 Nylon washer
•
6 - Nylock Nuts
•
6 – One-inch Spacers
1 BG2000
INSTALLATION GUIDE

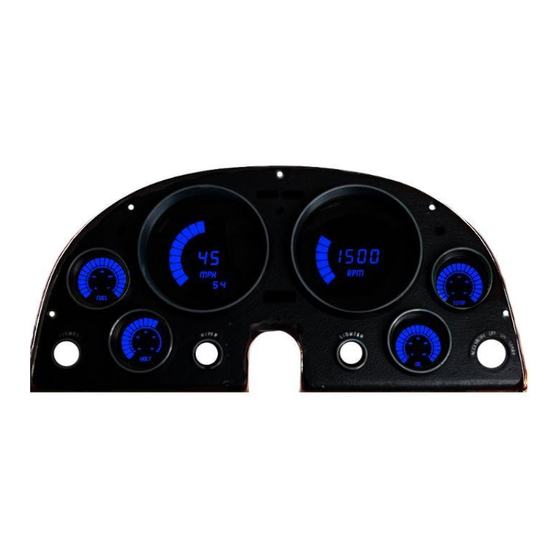

Corvette Digital Dash Panel
Part Number: BG2000
Year Series: 1963 - 1967
1162024
Lifetime Guarantee
www.intellitronix.com
Advertisement
Related Manuals for Intellitronix BG2000
Summary of Contents for Intellitronix BG2000
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE Corvette Digital Dash Panel Part Number: BG2000 Year Series: 1963 - 1967 * Always disconnect the battery before attempting any electrical work on your vehicle.*...
- Page 2 Attach acrylic to circuit board Step 6 Step 5 Place full spacer on top of the rings Insert circuit board assembly into housing Step 7 Secure the back plate to the housing using provided spacers and factory screws 2 BG2000 1162024 www.intellitronix.com...
-
Page 3: Wiring Instructions
Tan - Brake Connect to the parking brake wire from the dash to negative side of parking brake light switch. NOTE: If you are using a one wire switch you may need to switch to a two-wire switch. This wire is an optional wire some vehicles may not require. 3 BG2000 1162024 www.intellitronix.com... - Page 4 The other wire (Low output) Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year and Consult your factory Pinout Chart. 4 BG2000 1162024 www.intellitronix.com...
- Page 5 Note: If doing a LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach switch to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. The resistor in the adapter kit will help pull a stronger signal for the tachometer.
- Page 6 Note: If using the Intellitronix GPS Sending Unit, (GPS – not included) the speedometer does not need to be calibrated.
- Page 7 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. 7 BG2000 1162024 www.intellitronix.com...
