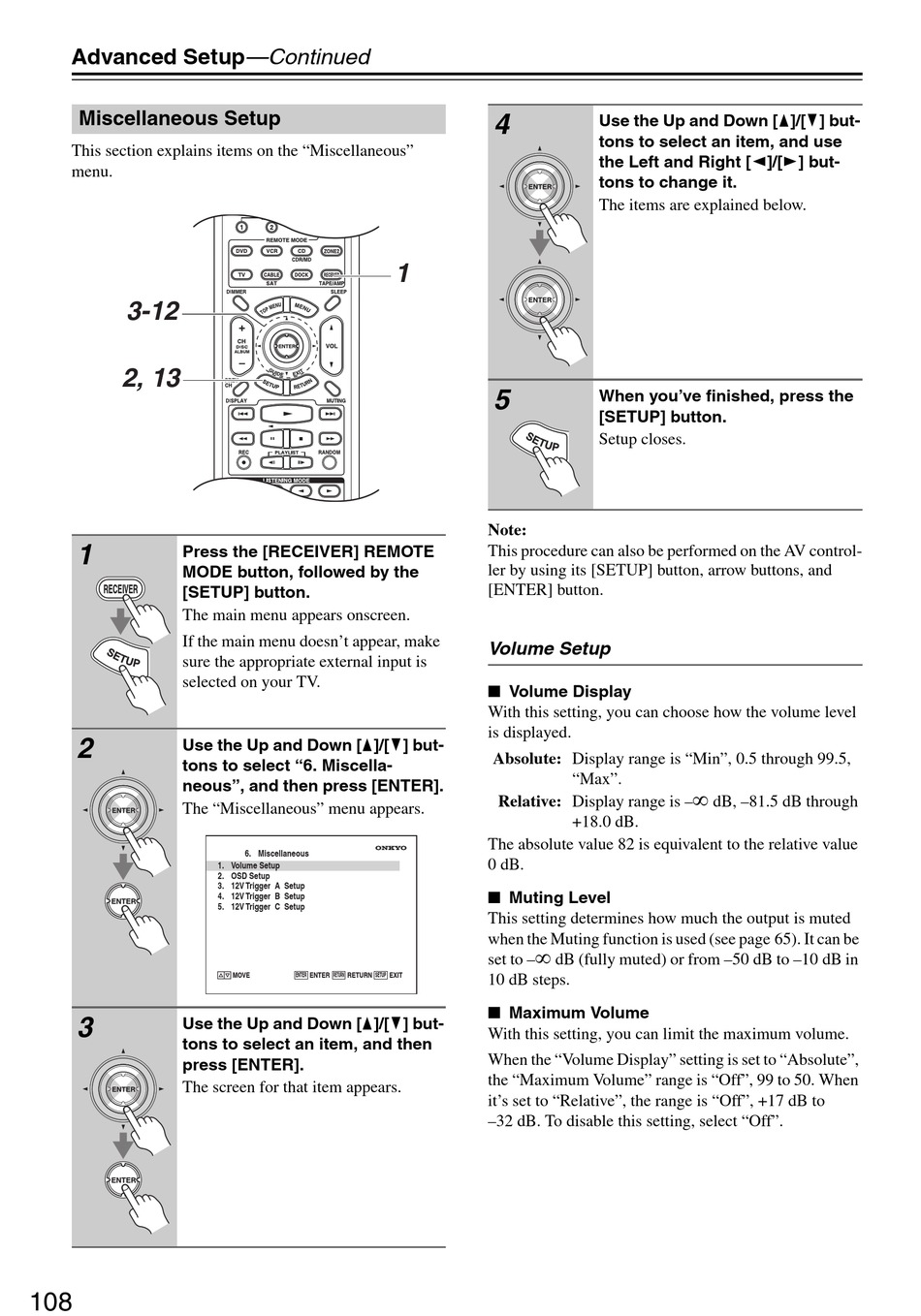

Advanced Setup—Continued

Miscellaneous Setup

This section explains items on the "Miscellaneous"
menu.
3-12
2, 13
1
Press the [RECEIVER] REMOTE
MODE button, followed by the
[SETUP] button.
The main menu appears onscreen.
If the main menu doesn't appear, make
sure the appropriate external input is
selected on your TV.
2
Use the Up and Down [q]/[w] but-
tons to select "6. Miscella-
neous", and then press [ENTER].
The "Miscellaneous" menu appears.
3
Use the Up and Down [q]/[w] but-
tons to select an item, and then
press [ENTER].
The screen for that item appears.
108
6. Miscellaneous
1. Volume Setup
2. OSD Setup
3. 12V Trigger A Setup
4. 12V Trigger B Setup
5. 12V Trigger C Setup
MOVE ENTER RETURN EXIT
ENTER RETURN SETUP
4
1
5
Note:
This procedure can also be performed on the AV control-
ler by using its [SETUP] button, arrow buttons, and
[ENTER] button.
Volume Setup
■ Volume Display
With this setting, you can choose how the volume level
is displayed.
Absolute: Display range is "Min", 0.5 through 99.5,
Relative: Display range is –
The absolute value 82 is equivalent to the relative value
0 dB.
■ Muting Level
This setting determines how much the output is muted
when the Muting function is used (see page 65). It can be
∞
set to – dB (fully muted) or from –50 dB to –10 dB in
10 dB steps.
■ Maximum Volume
With this setting, you can limit the maximum volume.
When the "Volume Display" setting is set to "Absolute",
the "Maximum Volume" range is "Off", 99 to 50. When
it's set to "Relative", the range is "Off", +17 dB to
–32 dB. To disable this setting, select "Off".
Use the Up and Down [q]/[w] but-
tons to select an item, and use
the Left and Right [e]/[r] but-
tons to change it.
The items are explained below.
When you've finished, press the
[SETUP] button.
Setup closes.
"Max".
∞
dB, –81.5 dB through
+18.0 dB.
