Connecting the AV Controller—Continued

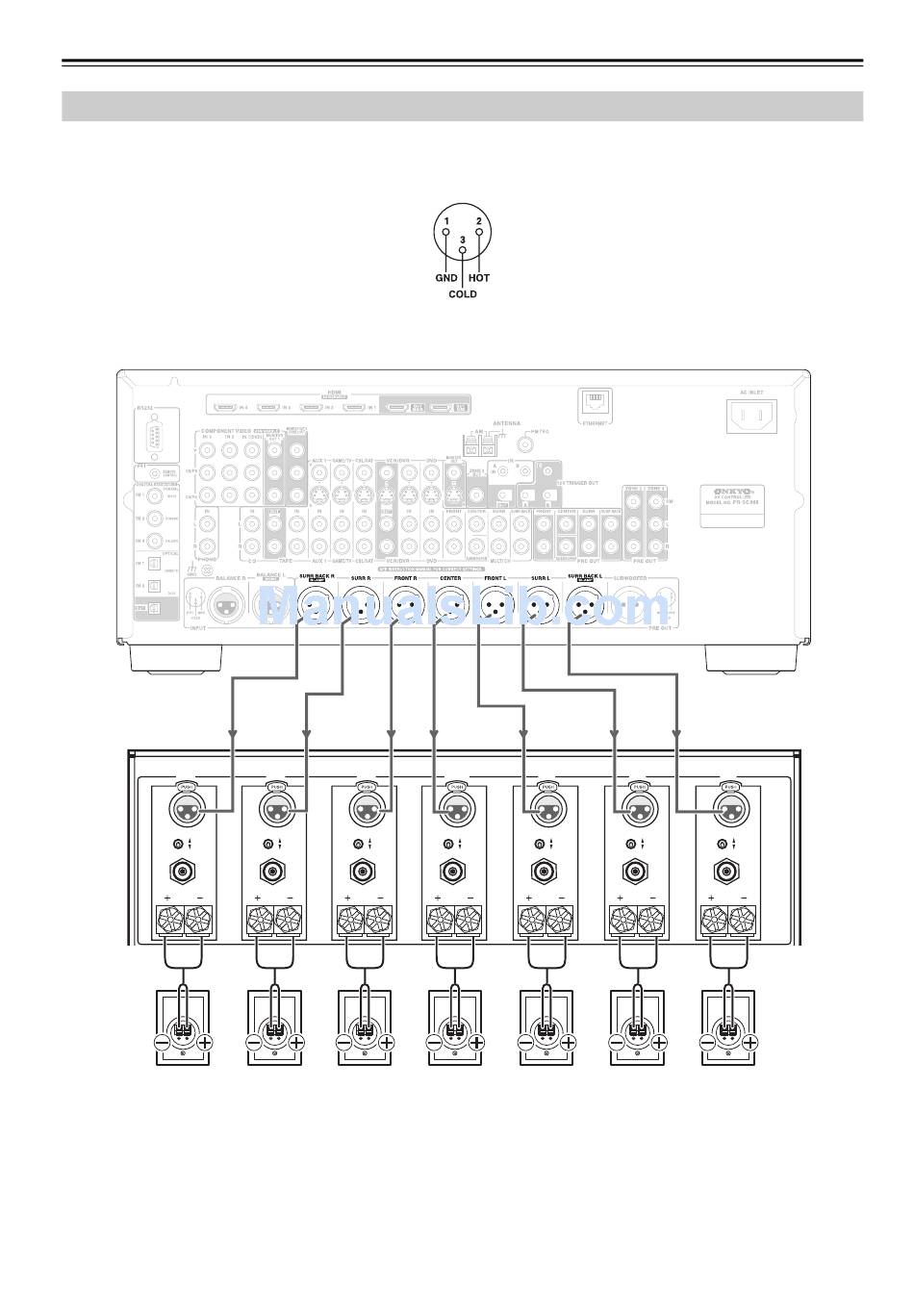

Connecting a Power Amplifier with XLR Inputs

You can connect the AV controller to a multichannel power amplifier with balanced XLR input jacks by using several
XLR audio cables.
The AV controller's balanced PRE OUT XLR jacks are wired as shown.
See your multichannel power amplifier's instruction manual for more information on connecting speakers.
AV controller
SURROUND BACK
RIGHT
OUTPUT
Surround
back right
speaker
24
SURROUND FRONT
RIGHT RIGHT
INPUT INPUT
SELECT SELECT
OUTPUT OUTPUT
Surround Front right
right speaker
speaker
FRONT
CENTER LEFT
INPUT INPUT
SELECT SELECT
OUTPUT OUTPUT
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
FUSE AC INLET
Center Front left
speaker speaker
Multichannel
power amplifier
SURROUND SURROUND BACK
LEFT LEFT
INPUT INPUT
SELECT SELECT
OUTPUT OUTPUT
12V TRIGGER
SEVEN CHANNEL AMPLIFIER
MODEL NO.
IN OUT
Surround Surround
left back left
speaker speaker
INPUT
SELECT
RDA-7.1
