First Time Setup—Continued

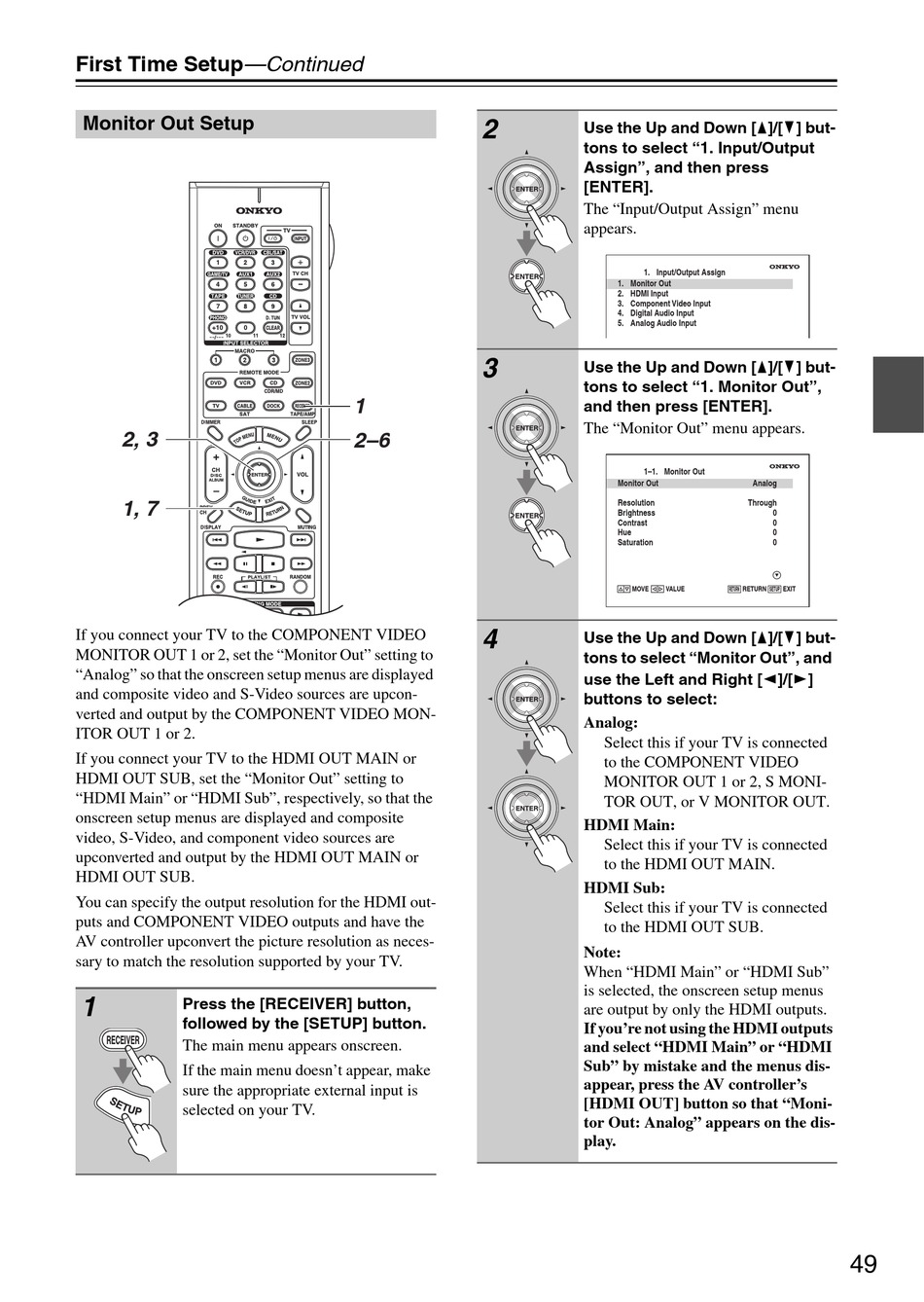

Monitor Out Setup

2, 3
1, 7
If you connect your TV to the COMPONENT VIDEO
MONITOR OUT 1 or 2, set the "Monitor Out" setting to
"Analog" so that the onscreen setup menus are displayed
and composite video and S-Video sources are upcon-
verted and output by the COMPONENT VIDEO MON-
ITOR OUT 1 or 2.
If you connect your TV to the HDMI OUT MAIN or
HDMI OUT SUB, set the "Monitor Out" setting to
"HDMI Main" or "HDMI Sub", respectively, so that the
onscreen setup menus are displayed and composite
video, S-Video, and component video sources are
upconverted and output by the HDMI OUT MAIN or
HDMI OUT SUB.
You can specify the output resolution for the HDMI out-
puts and COMPONENT VIDEO outputs and have the
AV controller upconvert the picture resolution as neces-
sary to match the resolution supported by your TV.
1 Press the [RECEIVER] button,
followed by the [SETUP] button.
The main menu appears onscreen.
If the main menu doesn't appear, make
sure the appropriate external input is
selected on your TV.
2
3
1
2–6
4
Use the Up and Down [q]/[w] but-
tons to select "1. Input/Output
Assign", and then press
[ENTER].
The "Input/Output Assign" menu
appears.
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Audio Input
5. Analog Audio Input
Use the Up and Down [q]/[w] but-
tons to select "1. Monitor Out",
and then press [ENTER].
The "Monitor Out" menu appears.
1–1. Monitor Out
Monitor Out Analog
Resolution Through
Brightness
Contrast
Hue
Saturation
MOVE VALUE RETURN RETURN
Use the Up and Down [q]/[w] but-
tons to select "Monitor Out", and
use the Left and Right [e]/[r]
buttons to select:
Analog:
Select this if your TV is connected
to the COMPONENT VIDEO
MONITOR OUT 1 or 2, S MONI-
TOR OUT, or V MONITOR OUT.
HDMI Main:
Select this if your TV is connected
to the HDMI OUT MAIN.
HDMI Sub:
Select this if your TV is connected
to the HDMI OUT SUB.
Note:
When "HDMI Main" or "HDMI Sub"
is selected, the onscreen setup menus
are output by only the HDMI outputs.
If you're not using the HDMI outputs
and select "HDMI Main" or "HDMI
Sub" by mistake and the menus dis-
appear, press the AV controller's
[HDMI OUT] button so that "Moni-
tor Out: Analog" appears on the dis-
play.
0
0
0
0
SETUP EXIT
