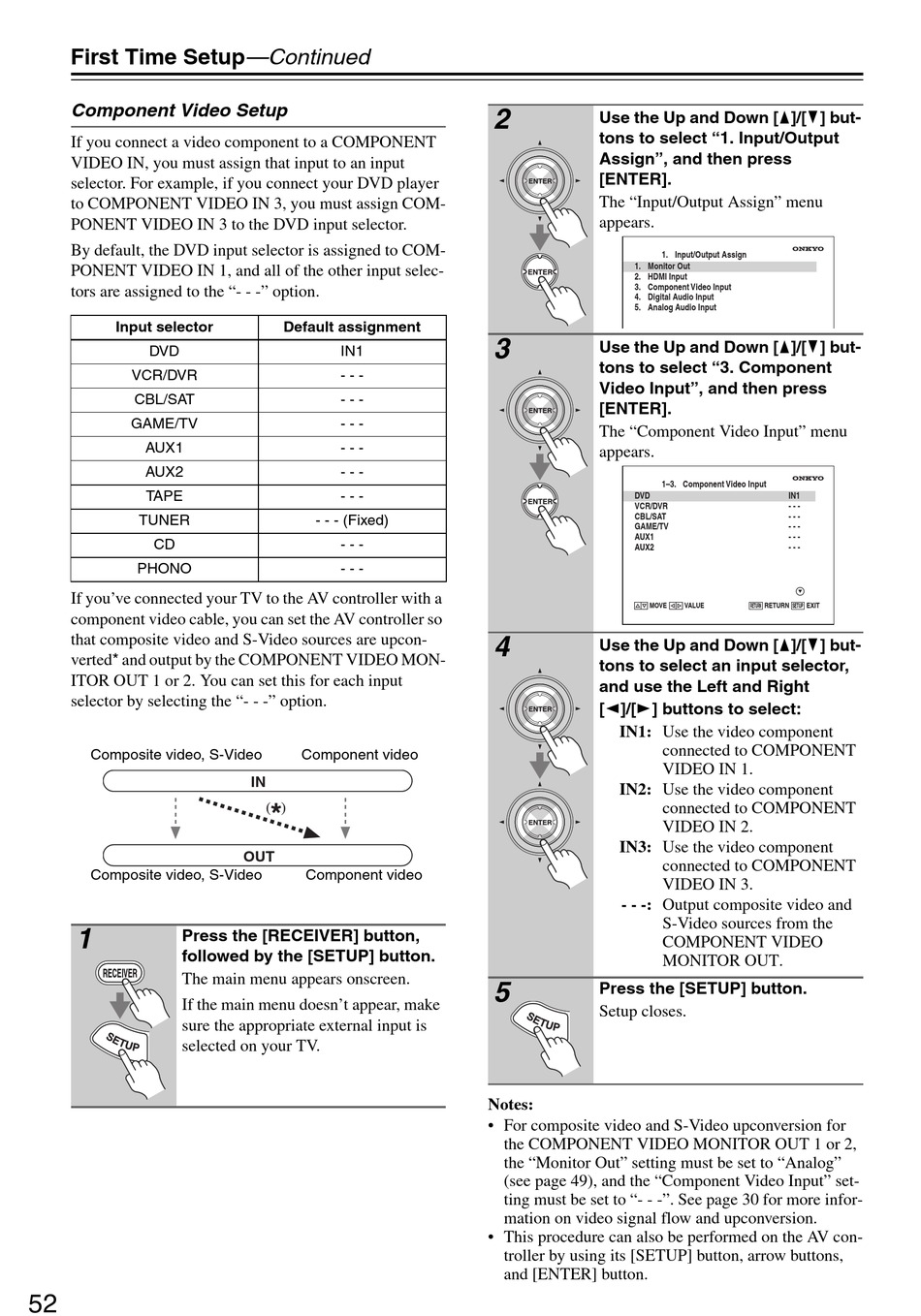

Onkyo SC886 - PR Preamplifier / Processor Instruction Manual page 52

First Time Setup—Continued
Component Video Setup
If you connect a video component to a COMPONENT
VIDEO IN, you must assign that input to an input
selector. For example, if you connect your DVD player
to COMPONENT VIDEO IN 3, you must assign COM-
PONENT VIDEO IN 3 to the DVD input selector.
By default, the DVD input selector is assigned to COM-
PONENT VIDEO IN 1, and all of the other input selec-
tors are assigned to the "- - -" option.
Input selector
DVD
VCR/DVR
CBL/SAT
GAME/TV
AUX1
AUX2
TAPE
TUNER
CD
PHONO
If you've connected your TV to the AV controller with a
component video cable, you can set the AV controller so
that composite video and S-Video sources are upcon-
verted* and output by the COMPONENT VIDEO MON-
ITOR OUT 1 or 2. You can set this for each input
selector by selecting the "- - -" option.
Composite video, S-Video
Composite video, S-Video
1 Press the [RECEIVER] button,
followed by the [SETUP] button.
The main menu appears onscreen.
If the main menu doesn't appear, make
sure the appropriate external input is
selected on your TV.
52
Default assignment
IN1
- - -
- - -
- - -
- - -
- - -
- - -
- - - (Fixed)
- - -
- - -
Component video
IN
OUT
Component video
2
Use the Up and Down [q]/[w] but-
tons to select "1. Input/Output
Assign", and then press
[ENTER].
The "Input/Output Assign" menu
appears.
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Audio Input
5. Analog Audio Input
3
Use the Up and Down [q]/[w] but-
tons to select "3. Component
Video Input", and then press
[ENTER].
The "Component Video Input" menu
appears.
1–3. Component Video Input
DVD
VCR/DVR
CBL/SAT
GAME/TV
AUX1
AUX2
MOVE
4
Use the Up and Down [q]/[w] but-
tons to select an input selector,
and use the Left and Right
[e]/[r] buttons to select:
IN1: Use the video component
IN2: Use the video component
IN3: Use the video component
- - -: Output composite video and
5
Press the [SETUP] button.
Setup closes.
Notes:
• For composite video and S-Video upconversion for
the COMPONENT VIDEO MONITOR OUT 1 or 2,
the "Monitor Out" setting must be set to "Analog"
(see page 49), and the "Component Video Input" set-
ting must be set to "- - -". See page 30 for more infor-
mation on video signal flow and upconversion.
• This procedure can also be performed on the AV con-
troller by using its [SETUP] button, arrow buttons,
and [ENTER] button.
IN1
- - -
- - -
- - -
- - -
- - -
VALUE RETURN EXIT
RETURN SETUP
connected to COMPONENT
VIDEO IN 1.
connected to COMPONENT
VIDEO IN 2.
connected to COMPONENT
VIDEO IN 3.
S-Video sources from the
COMPONENT VIDEO
MONITOR OUT.
