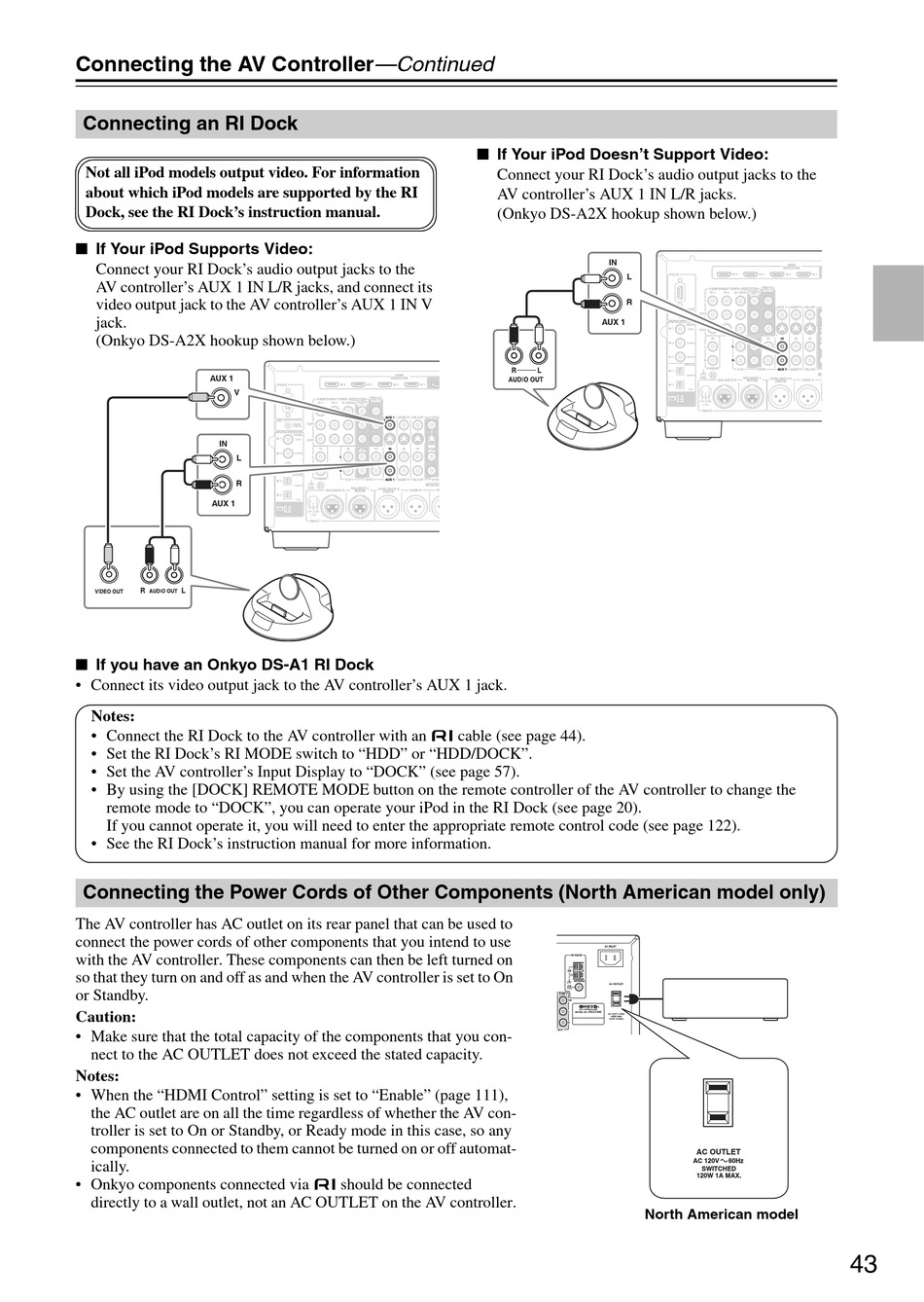

Connecting the AV Controller—Continued

Connecting an RI Dock

Not all iPod models output video. For information
about which iPod models are supported by the RI
Dock, see the RI Dock's instruction manual.
■ If Your iPod Supports Video:
Connect your RI Dock's audio output jacks to the
AV controller's AUX 1 IN L/R jacks, and connect its
video output jack to the AV controller's AUX 1 IN V
jack.
(Onkyo DS-A2X hookup shown below.)
V
IN
L
R
■ If you have an Onkyo DS-A1 RI Dock
• Connect its video output jack to the AV controller's AUX 1 jack.
Notes:
• Connect the RI Dock to the AV controller with an u cable (see page 44).
• Set the RI Dock's RI MODE switch to "HDD" or "HDD/DOCK".
• Set the AV controller's Input Display to "DOCK" (see page 57).
• By using the [DOCK] REMOTE MODE button on the remote controller of the AV controller to change the
remote mode to "DOCK", you can operate your iPod in the RI Dock (see page 20).
If you cannot operate it, you will need to enter the appropriate remote control code (see page 122).
• See the RI Dock's instruction manual for more information.

Connecting the Power Cords of Other Components (North American model only)

The AV controller has AC outlet on its rear panel that can be used to
connect the power cords of other components that you intend to use
with the AV controller. These components can then be left turned on
so that they turn on and off as and when the AV controller is set to On
or Standby.
Caution:
• Make sure that the total capacity of the components that you con-
nect to the AC OUTLET does not exceed the stated capacity.
Notes:
• When the "HDMI Control" setting is set to "Enable" (page 111),
the AC outlet are on all the time regardless of whether the AV con-
troller is set to On or Standby, or Ready mode in this case, so any
components connected to them cannot be turned on or off automat-
ically.
• Onkyo components connected via u should be connected
directly to a wall outlet, not an AC OUTLET on the AV controller.
■ If Your iPod Doesn't Support Video:
Connect your RI Dock's audio output jacks to the
AV controller's AUX 1 IN L/R jacks.
(Onkyo DS-A2X hookup shown below.)
IN
L
R
North American model
AC OUTLET
AC 120V 60Hz
SWITCHED
120W 1A MAX.
43
