Speaker Setup - Onkyo SC886 - PR Preamplifier / Processor Instruction Manual

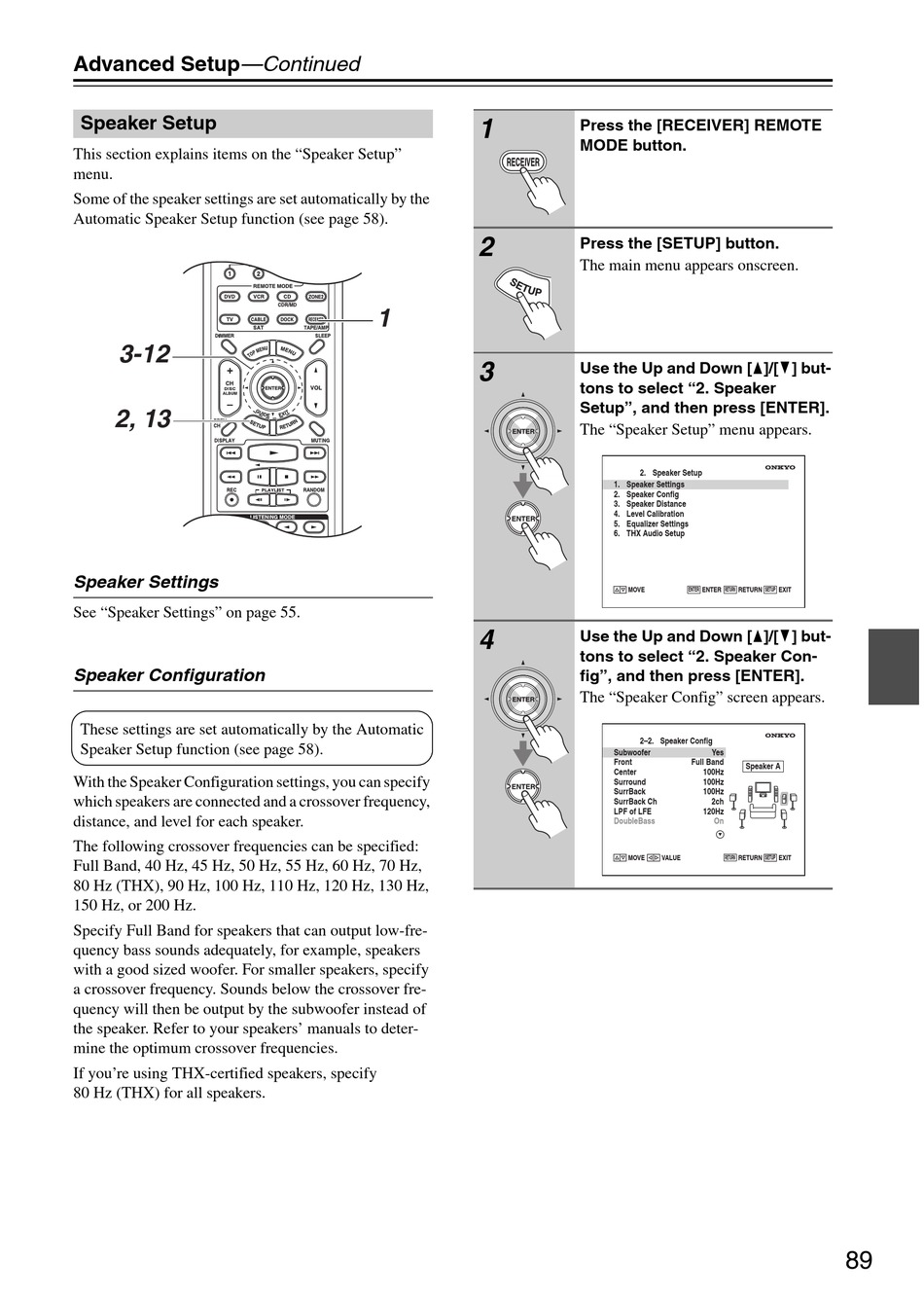

Advanced Setup—Continued

Speaker Setup

This section explains items on the "Speaker Setup"
menu.
Some of the speaker settings are set automatically by the
Automatic Speaker Setup function (see page 58).
3-12
2, 13
Speaker Settings
See "Speaker Settings" on page 55.
Speaker Configuration
These settings are set automatically by the Automatic
Speaker Setup function (see page 58).
With the Speaker Configuration settings, you can specify
which speakers are connected and a crossover frequency,
distance, and level for each speaker.
The following crossover frequencies can be specified:
Full Band, 40 Hz, 45 Hz, 50 Hz, 55 Hz, 60 Hz, 70 Hz,
80 Hz (THX), 90 Hz, 100 Hz, 110 Hz, 120 Hz, 130 Hz,
150 Hz, or 200 Hz.
Specify Full Band for speakers that can output low-fre-
quency bass sounds adequately, for example, speakers
with a good sized woofer. For smaller speakers, specify
a crossover frequency. Sounds below the crossover fre-
quency will then be output by the subwoofer instead of
the speaker. Refer to your speakers' manuals to deter-
mine the optimum crossover frequencies.
If you're using THX-certified speakers, specify
80 Hz (THX) for all speakers.
1
2
1
3
4
Press the [RECEIVER] REMOTE
MODE button.
Press the [SETUP] button.
The main menu appears onscreen.
Use the Up and Down [q]/[w] but-
tons to select "2. Speaker
Setup", and then press [ENTER].
The "Speaker Setup" menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
MOVE ENTER RETURN
ENTER RETURN
Use the Up and Down [q]/[w] but-
tons to select "2. Speaker Con-
fig", and then press [ENTER].
The "Speaker Config" screen appears.
2–2. Speaker Config
Subwoofer Yes
Front Full Band
Speaker A
Center 100Hz
Surround 100Hz
SurrBack 100Hz
SurrBack Ch 2ch
LPF of LFE 120Hz
DoubleBass On
MOVE VALUE RETURN
RETURN
EXIT
SETUP
EXIT
SETUP
89
