Connecting the AV Controller—Continued
■ "Monitor Out" Setting Set to
"Analog"
With the "Monitor Out" setting set to "Analog"
(see page 46), video input signals flow through
the AV controller as shown, with composite
video and S-Video sources being upconverted
for the component video output. Use this set-
ting if you connect the AV controller's
COMPONENT VIDEO MONITOR OUT 1
or 2 to your TV.
Composite video is upconverted to S-Video
and S-Video is downconverted to composite
video. Note that these conversions only apply
to the MONITOR OUT V and S outputs, not
the VCR/DVR OUT V and S outputs.
The composite video, S-Video, and component
video outputs pass through their respective
input signals as they are.
This signal flow also applies when the Monitor
Out "Resolution" setting is set to "Through"
(see page 49).
Video Signal Flow and the Resolution Setting
When the "Monitor Out" setting is set to "Ana-
log" (see page 46), if the Monitor Out "Reso-
lution" setting is set to anything other than
"Through" (see page 49), the video signal flow
will be as shown here, with composite video
and S-Video sources being upconverted for the
component video output.
The composite video, S-Video, and component
video outputs pass through their respective
analog input signals as they are. HDMI input
signals are not output.
Audio Connection Formats
Audio equipment can be connected to the AV
controller by using any of the following audio
connection formats: analog, optical, coaxial,
analog multichannel, or HDMI.
When choosing a connection format, bear in
mind that the AV controller does not convert
digital input signals for analog line outputs and
vice versa. For example, audio signals con-
nected to an optical or coaxial digital input are
not output by the analog TAPE OUT.
30

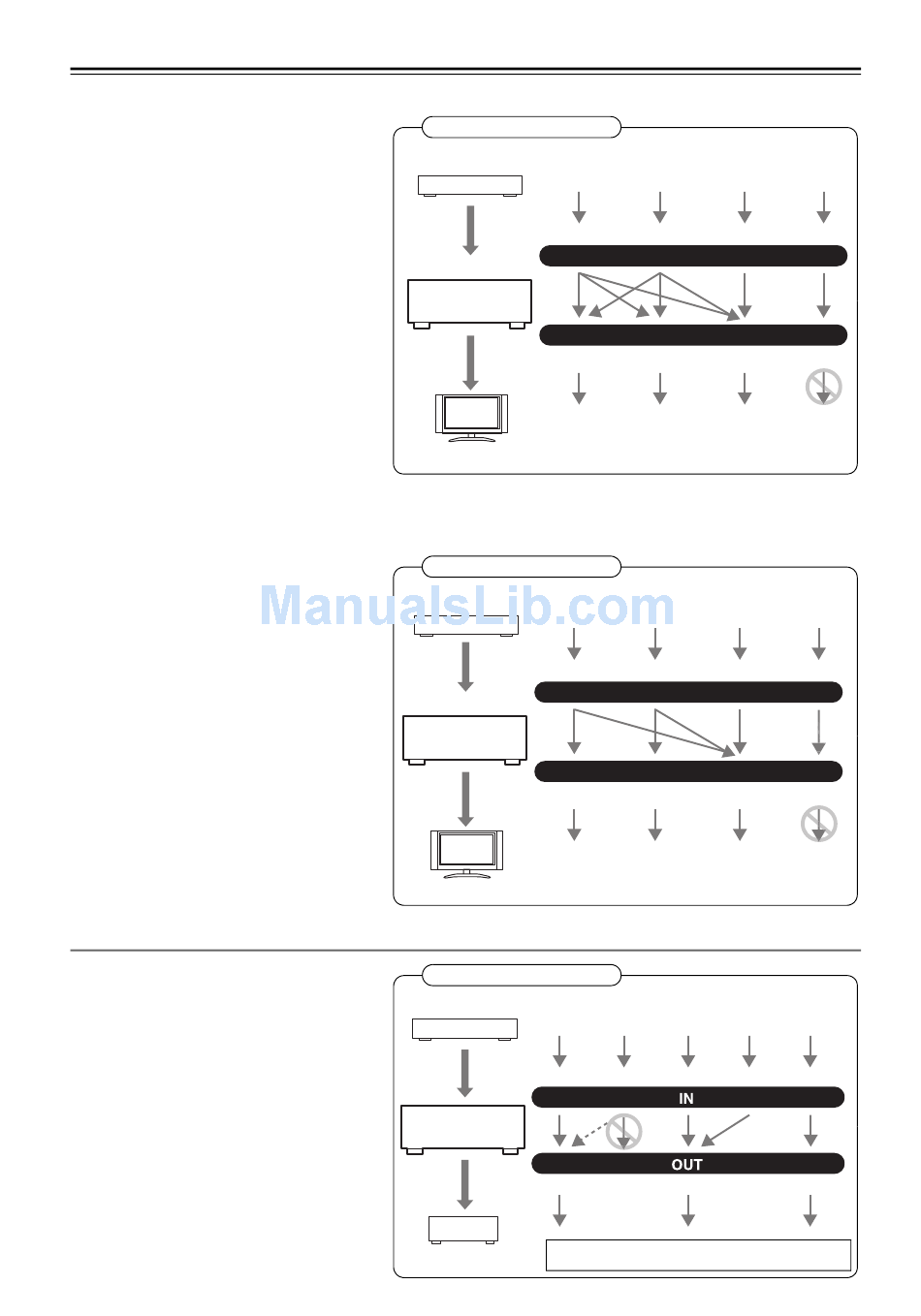

Video Signal Flow Chart
