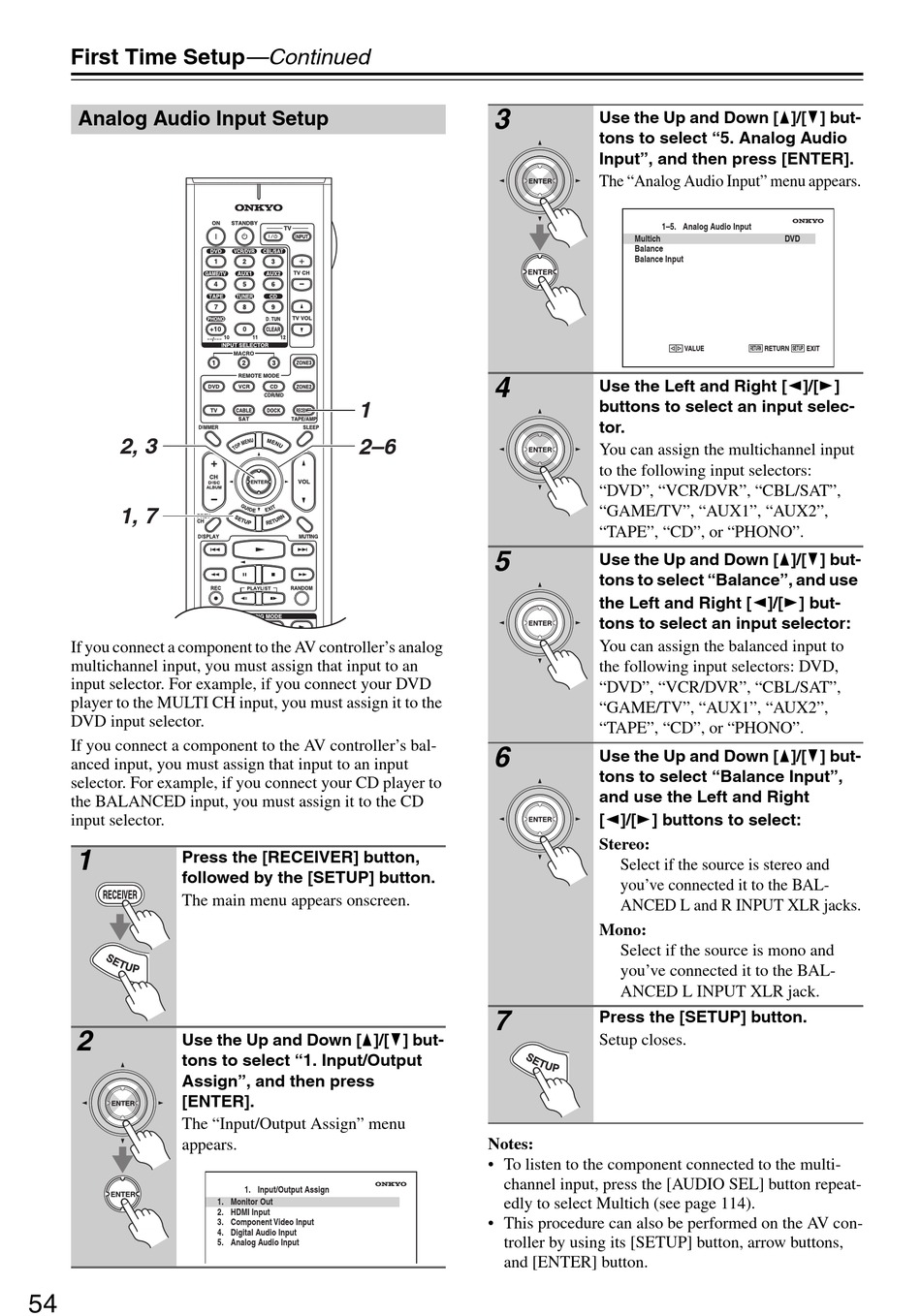

Analog Audio Input Setup

2, 3
1, 7
If you connect a component to the AV controller's analog
multichannel input, you must assign that input to an
input selector. For example, if you connect your DVD
player to the MULTI CH input, you must assign it to the
DVD input selector.
If you connect a component to the AV controller's bal-
anced input, you must assign that input to an input
selector. For example, if you connect your CD player to
the BALANCED input, you must assign it to the CD
input selector.
1
Press the [RECEIVER] button,
followed by the [SETUP] button.
The main menu appears onscreen.
2
Use the Up and Down [q]/[w] but-
tons to select "1. Input/Output
Assign", and then press
[ENTER].
The "Input/Output Assign" menu
appears.
54
1
2–6
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Audio Input
5. Analog Audio Input
3
Use the Up and Down [q]/[w] but-
tons to select "5. Analog Audio
Input", and then press [ENTER].
The "Analog Audio Input" menu appears.
1–5. Analog Audio Input
Multich
Balance
Balance Input
4
Use the Left and Right [e]/[r]
buttons to select an input selec-
tor.
You can assign the multichannel input
to the following input selectors:
"DVD", "VCR/DVR", "CBL/SAT",
"GAME/TV", "AUX1", "AUX2",
"TAPE", "CD", or "PHONO".
5
Use the Up and Down [q]/[w] but-
tons to select "Balance", and use
the Left and Right [e]/[r] but-
tons to select an input selector:
You can assign the balanced input to
the following input selectors: DVD,
"DVD", "VCR/DVR", "CBL/SAT",
"GAME/TV", "AUX1", "AUX2",
"TAPE", "CD", or "PHONO".
6
Use the Up and Down [q]/[w] but-
tons to select "Balance Input",
and use the Left and Right
[e]/[r] buttons to select:
Stereo:
Select if the source is stereo and
you've connected it to the BAL-
ANCED L and R INPUT XLR jacks.
Mono:
Select if the source is mono and
you've connected it to the BAL-
ANCED L INPUT XLR jack.
7 Press the [SETUP] button.
Setup closes.
Notes:
• To listen to the component connected to the multi-
channel input, press the [AUDIO SEL] button repeat-
edly to select Multich (see page 114).
• This procedure can also be performed on the AV con-
troller by using its [SETUP] button, arrow buttons,
and [ENTER] button.
