Chapter 2: Jumpers and Connectors

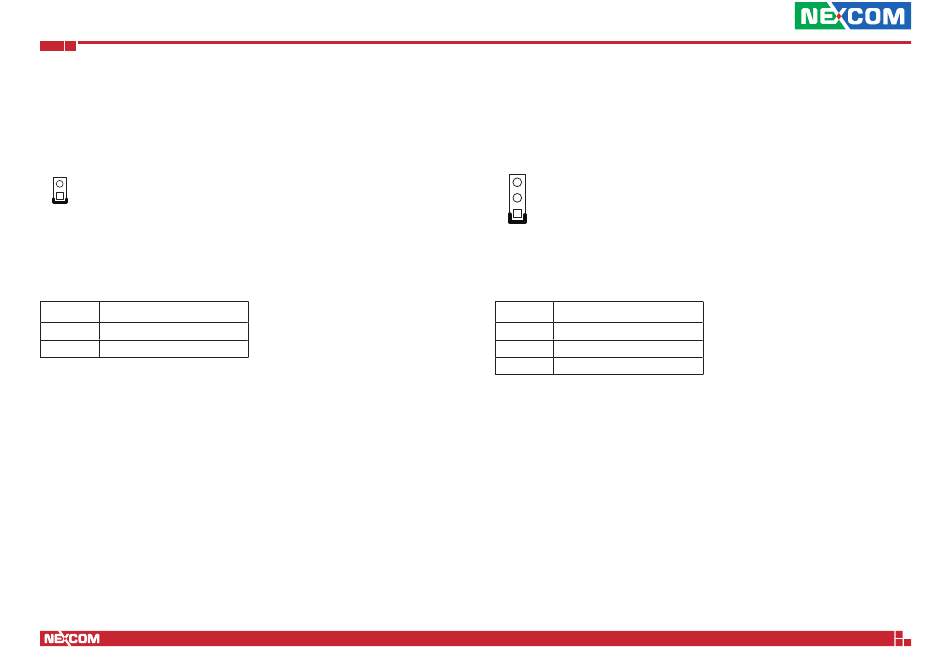

Power Button Header (for debug)

Connector location: JP4
2
1
Pin Definition
1 FP_PWRBTN_N_R
2 GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.

Clear CMOS

Connector location: JP5
3
1
Pin Definition
1 RTC_RST_N
2 GND
3 NC
18
