Chapter 3: System Setup
2.

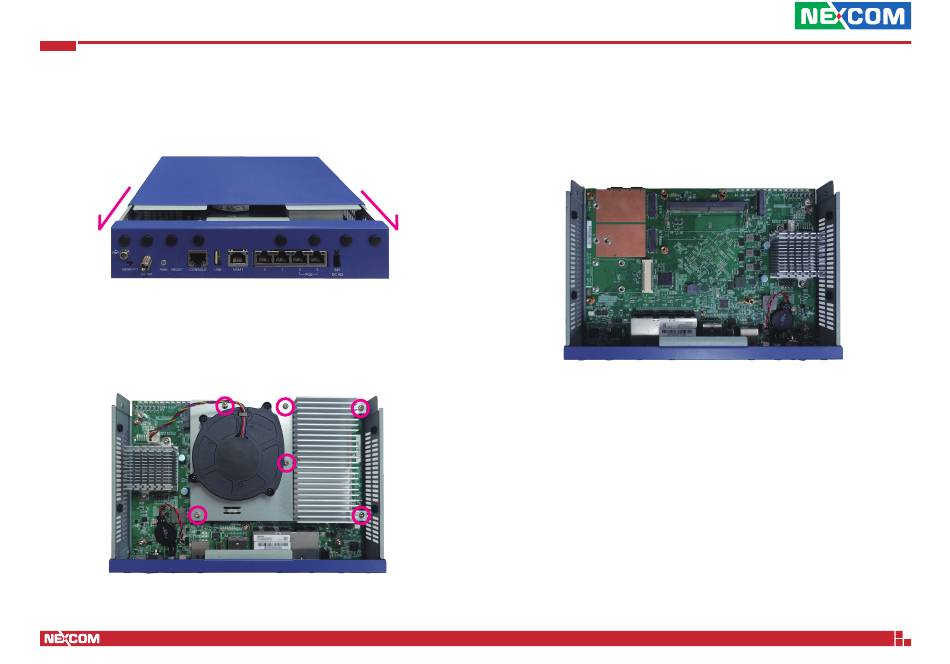

With the screws removed, gently slide the cover outwards then lift up
the cover to remove it.
3.
Loosen the screws on the heatsink module, place them in a safe location
for later use, then lift up the heatsink module.
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
4.
Once the chassis and heatsink module have been removed, the system
should resemble the image below and be ready for installing extension
modules.
21
DNA 140 User Manual
