5. Click the Show Preview Window and Show Setting Window tabs in the Scan
6. Click the Preview button to perform a preliminary view of the entire image.
7. Go to the "General" panel by clicking the General tab in the Settings
8. Click the OK button to close the
9. On the Main interface, set up file storage settings as follows:
10. Click the Normal Scan button to start scanning.
11. Click the Open Folder button to locate the scanned images if you want to
18 Spector-AF10 User's Manual

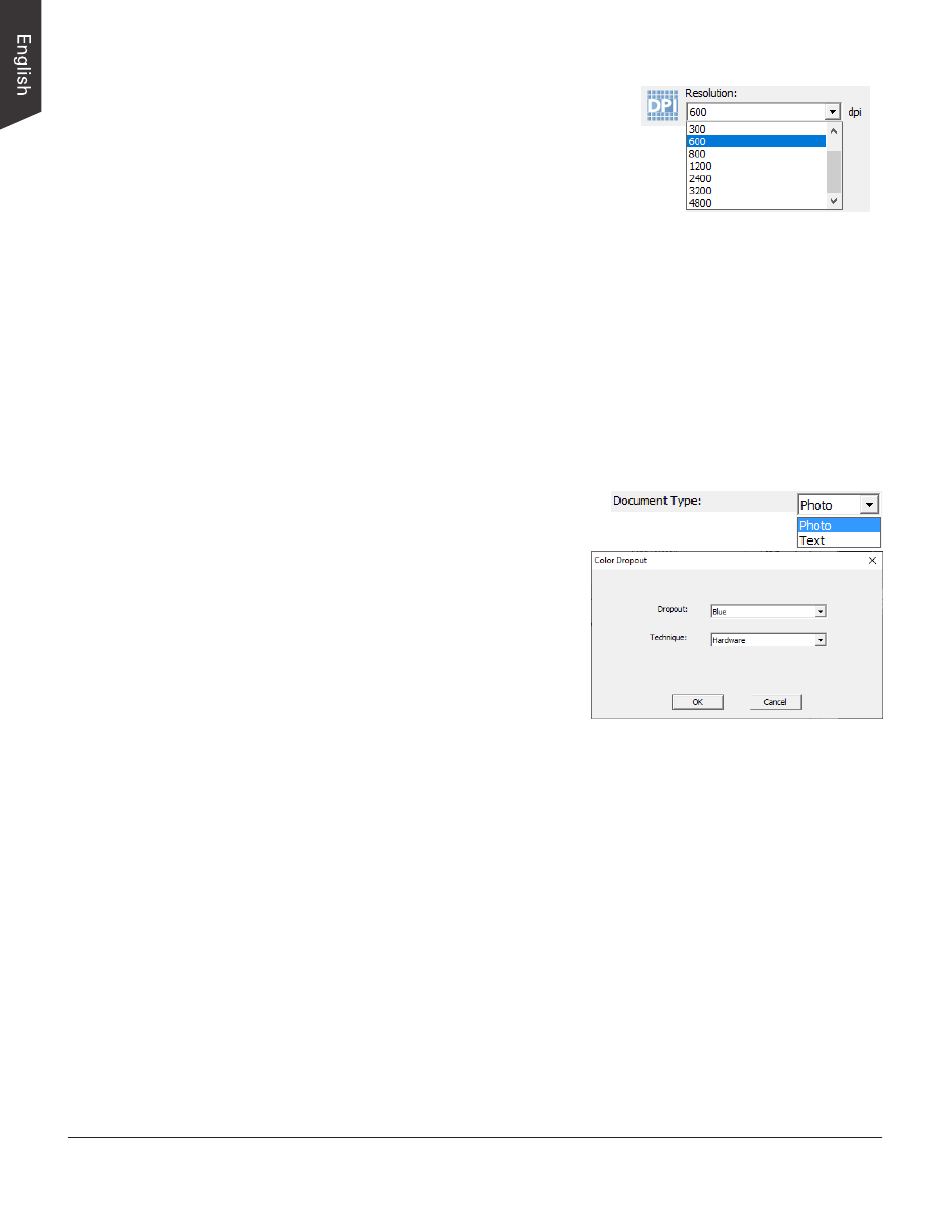

e) Select a desired resolution in the
Resolution for your image output
resolution.
NOTE: When the resolution surpasses
the maximum limit of 1200 dpi for UV
light, the system will reset it to the
highest value supported by the light
source.
Setup interface to display other control panels which are helpful for your
scanning processing.
When done, a preview image appears in the Preview window. If necessary,
drag on the edge or corner of the scan frame to resize the scan frame.
window. Specify the settings for your requirements there.
a) Select Photo in the Document Type
as your input image type.
Maker sure the Dropout is set
b)
as "Blue" and the Technique is
set as "Hardware" in the Color
Dropout window.
Scan Setup interface and return to
the Main interface of ScanWizard DI.
a) Click the File Format menu button to select the format for saving
scanned images.
b) Click the File Name menu button to define a naming method for the
scanned images.
c) Click the File Location menu box to specify a folder for storing the
scanned images.
When done, the scanned images will be automatically saved into the folder
defined in the File Location menu box. At the same time, the scanned
images will be displayed in thumbnail sizes in the Thumbnail View window
and labeled with the file name and file format specified earlier.
view.
