the previous screen or selection and use the ENTER but-
ton ( ) to confirm a selection.

Screens

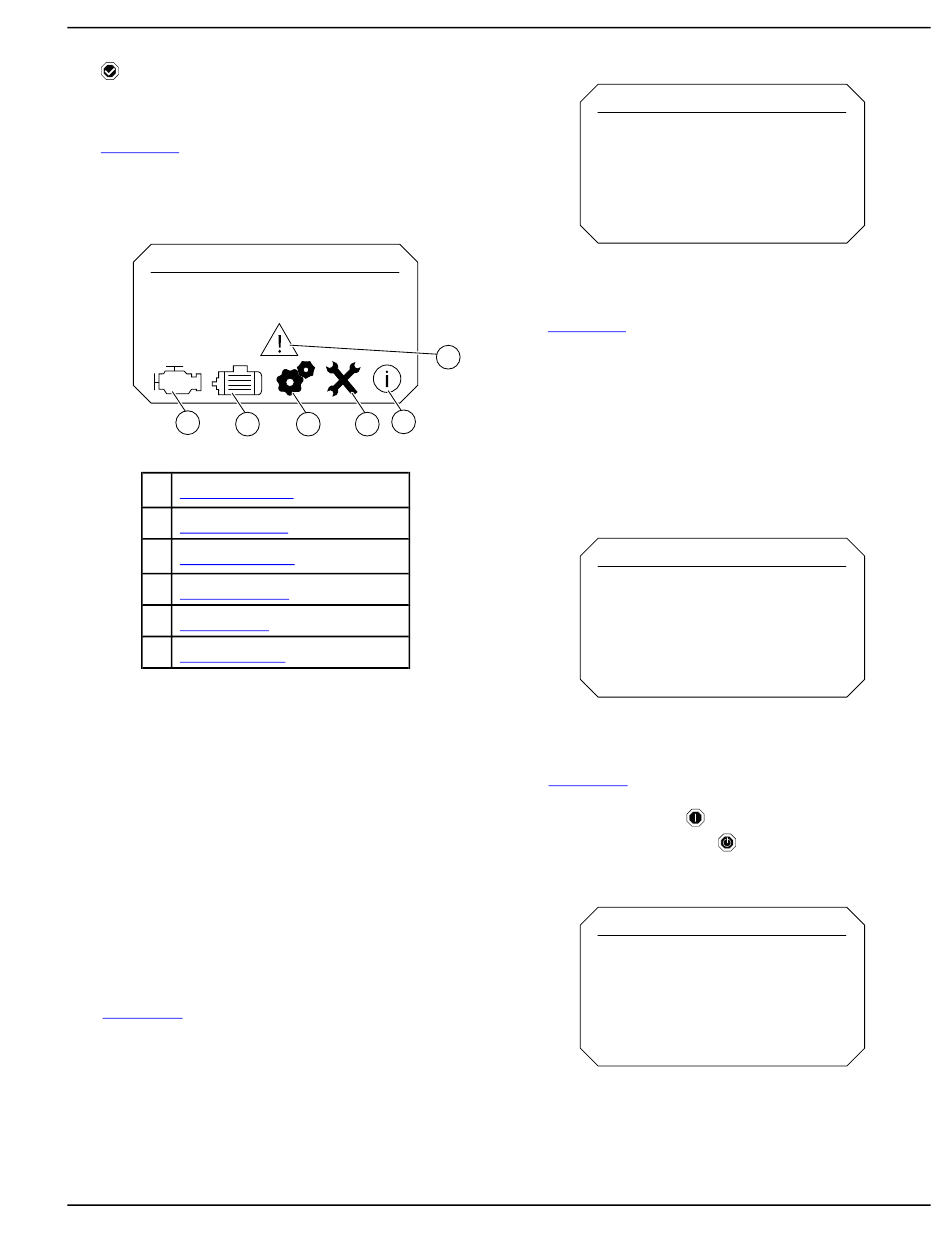

See Figure 2-4. There are six screen types which contain
all available pages. Each page may contain sub-pages
containing additional information or settings to modify.
Figure 2-4.
04/19/21
Status:
Stopped With Alarm
Protected Hours
A
B
Figure 2-4. Home Screen
A Engine Screen
B Power Screen
C Setting Screen
D Dealer Screen
E
Info Screen
F Alarm Screen
NOTE: The Dealer Screen can only be accessed using
credentials.
NOTE: Any data or values shown on the screens
throughout this manual are for reference only.

Wizard Screens

The Wizard Screens are displayed at controller start-up
only in following cases:
• Unit is not activated.
• User initiated factory reset (remote Modbus com-
mand or through dealer edit menu).
• User initiated reboot to power-up wizard command
(remote Modbus command or through dealer edit
menu).
See Figure 2-5. Use page 1 to set the language for the
screens.
Power Zone 410 ® Controller Owner's Manual
01:06PM
368
F
E
C D
012978
Figure 2-5.
Install Wizard
Set Language
Figure 2-5. Wizard Screen (Page 1)
See Figure 2-6.
1. Use page 2 to select whether a configuration is to
be loaded.
2. If configuration is to be loaded, once selecting Yes
and inserting the USB flash drive, the available
configuration files on the USB will display.
3. Select the correct configuration file and press
Enter.
Figure 2-6.
Install Wizard
Load Config From USB
Figure 2-6. Wizard Screen (Page 2)
See Figure 2-7. This screen will display only if the unit is
not activated. Use page 3 to activate the unit or choose to
run in MANUAL mode (
run the unit in AUTO mode (
Figure 2-7.
Activate
Activate Me (ENTER)
or press ESC to run
in manual only.
Figure 2-7. Wizard Screen (Page 3)
General Information
English
012979
No
019249
) only. Activation is required to
).
012980
